MAE 2381 FINAL EXAM QUESTIONS WITH DETAILED ANSWERS 2025/2026

Rating
-
Sold
-
Pages
4
Grade
A
Uploaded on
14-08-2025
Written in
2025/2026

Static Measurement - ANSWERQuantity Measured does not change 0 Order System - ANSWERImmediate Response First Order Instrument - ANSWERSimple Delayed response, measurement system absorbs, stores energy when sensing variable Second Order System Instrument - ANSWERDelayed response w/ potential oscillation, system dissipates, stores energy, needs moving and inertial component 0 order input - ANSWERF(t), mm 0 Order Output - ANSWERy(t), V y(t) - ANSWERTime Response Second part of equation - ANSWERTransient Response y0 - ANSWERInitial Condition at t=0 Γ(t) - ANSWERError Fraction error is 100% - ANSWERwhen first order time is 0 First Order Instrument Critical Parameters - ANSWERK & τ

Show more Read less
Institution
MAE 2381
Course
MAE 2381

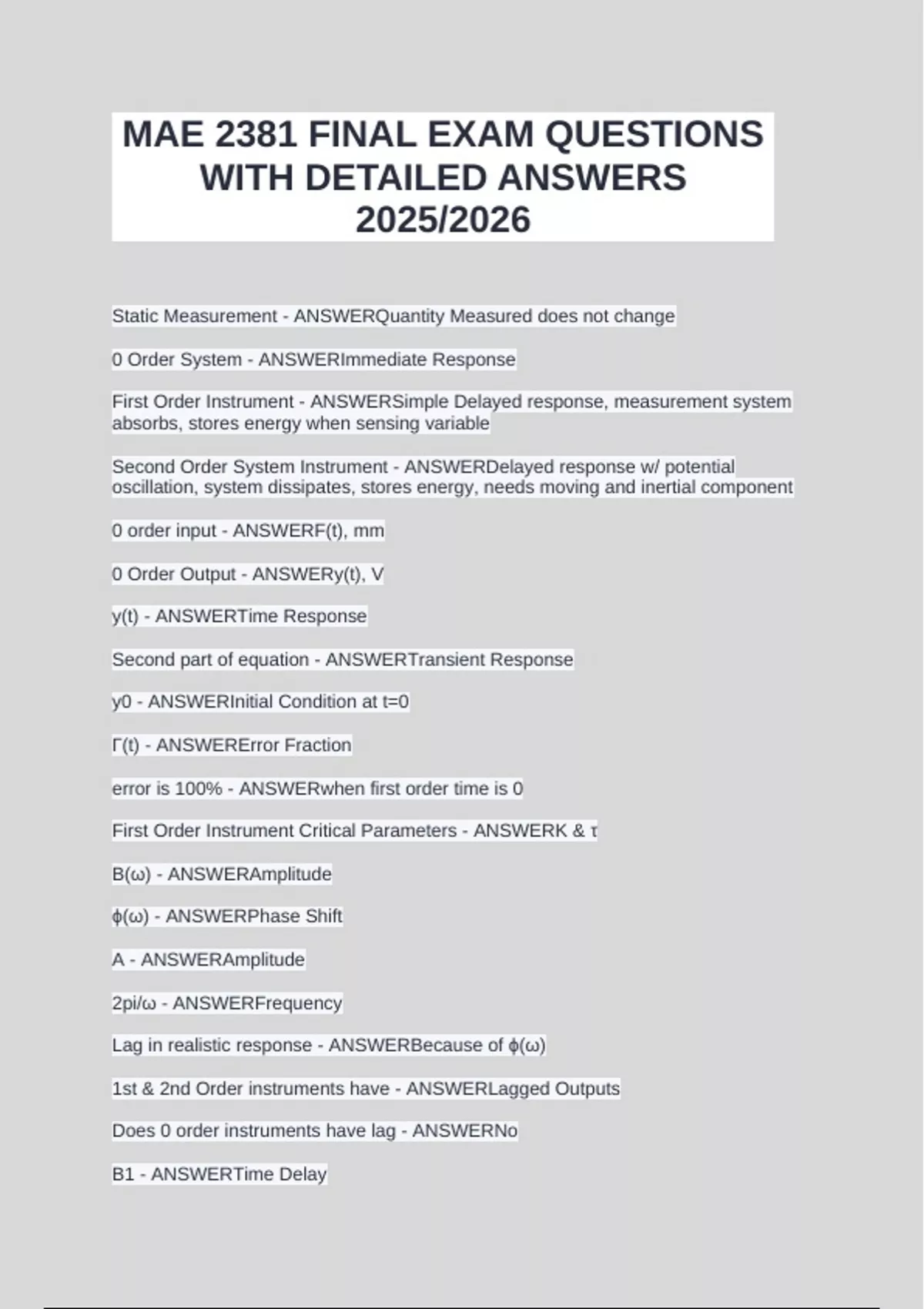

Content preview

MAE 2381 FINAL EXAM QUESTIONS
WITH DETAILED ANSWERS
2025/2026

Static Measurement - ANSWERQuantity Measured does not change

0 Order System - ANSWERImmediate Response

First Order Instrument - ANSWERSimple Delayed response, measurement system
absorbs, stores energy when sensing variable

Second Order System Instrument - ANSWERDelayed response w/ potential
oscillation, system dissipates, stores energy, needs moving and inertial component

0 order input - ANSWERF(t), mm

0 Order Output - ANSWERy(t), V

y(t) - ANSWERTime Response

Second part of equation - ANSWERTransient Response

y0 - ANSWERInitial Condition at t=0

Γ(t) - ANSWERError Fraction

error is 100% - ANSWERwhen first order time is 0

First Order Instrument Critical Parameters - ANSWERK & τ

B(ω) - ANSWERAmplitude

ϕ(ω) - ANSWERPhase Shift

A - ANSWERAmplitude

2pi/ω - ANSWERFrequency

Lag in realistic response - ANSWERBecause of ϕ(ω)

1st & 2nd Order instruments have - ANSWERLagged Outputs

Does 0 order instruments have lag - ANSWERNo

B1 - ANSWERTime Delay
