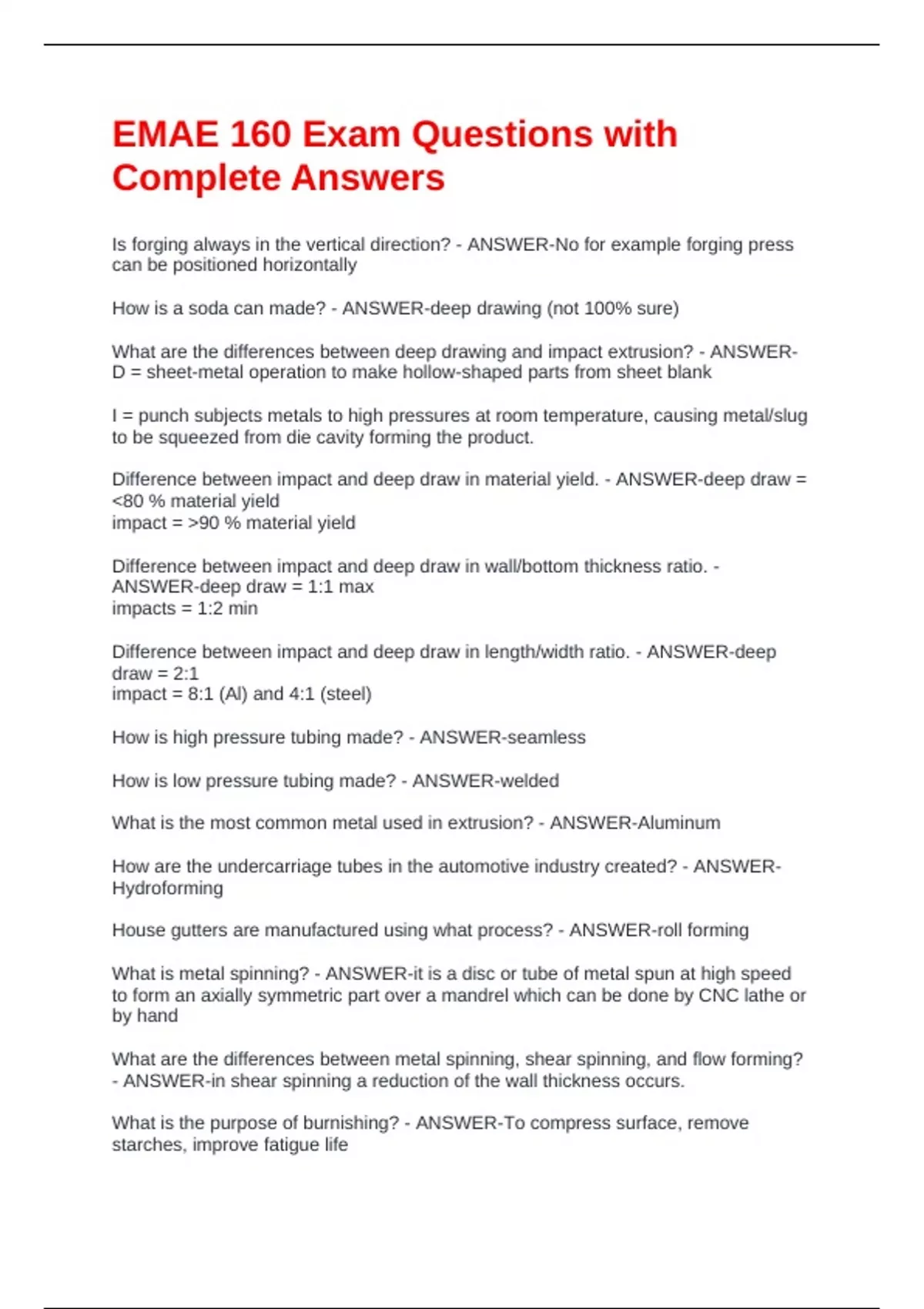

EMAE 160 Exam Questions with
Complete Answers
Is forging always in the vertical direction? - ANSWER-No for example forging press
can be positioned horizontally
How is a soda can made? - ANSWER-deep drawing (not 100% sure)
What are the differences between deep drawing and impact extrusion? - ANSWER-
D = sheet-metal operation to make hollow-shaped parts from sheet blank
I = punch subjects metals to high pressures at room temperature, causing metal/slug
to be squeezed from die cavity forming the product.
Difference between impact and deep draw in material yield. - ANSWER-deep draw =
<80 % material yield
impact = >90 % material yield
Difference between impact and deep draw in wall/bottom thickness ratio. -
ANSWER-deep draw = 1:1 max
impacts = 1:2 min
Difference between impact and deep draw in length/width ratio. - ANSWER-deep
draw = 2:1
impact = 8:1 (Al) and 4:1 (steel)
How is high pressure tubing made? - ANSWER-seamless
How is low pressure tubing made? - ANSWER-welded
What is the most common metal used in extrusion? - ANSWER-Aluminum
How are the undercarriage tubes in the automotive industry created? - ANSWER-
Hydroforming
House gutters are manufactured using what process? - ANSWER-roll forming
What is metal spinning? - ANSWER-it is a disc or tube of metal spun at high speed
to form an axially symmetric part over a mandrel which can be done by CNC lathe or
by hand
What are the differences between metal spinning, shear spinning, and flow forming?
- ANSWER-in shear spinning a reduction of the wall thickness occurs.
What is the purpose of burnishing? - ANSWER-To compress surface, remove
starches, improve fatigue life
, What are the differences between fine blanking and standard sheet metal stamping?
- ANSWER-fine blanking = cutting sheet metal along a closed outline; the desired
product (blank) is the part cut out; (presses include hardened die punch and blanking
die, guide)
Standard sheet metal stamping = drives sharpened tool steel punch through sheet or
strip material into a die cavity. The finished part has predictable edge
How are most externally threaded fasteners manufactured? - ANSWER-machining,
cold forming/cold heading and manual die
What are the two systems used for measuring the hardness of heat-treated steels? -
ANSWER-burnell hardness no. and rockwell c scale
Explain the difference between liquid phase sintering and solid phase sintering when
describing the powdered metallurgy process - ANSWER-L = requires adding additive
to powder, which melts before matrix phase .
S = heat treatment of powder compacts at elevated temperatures.
Which process provides high material removal rate? - ANSWER-plasma arc cutting
What is the property that allows metals to be permanently deformed beyond yield
without failure by rupture or splitting? - ANSWER-Plasticity
Name 3 types of stress to which materials are subjected. - ANSWER-tensile,
compressive, shear
What is ultrasonic machining and can it be used for both metallic and nonmetallic
materials? - ANSWER-it is a vibrating, oscillating tool used to remove material from a
workpiece with the help of an abrasive slurry flowing freely between the workpiece
and tool. Can be used for every material.
(Advantages: little grinding pressure, good for brittle materials especially glass,
ceramics, semiconductors.)
Are applications of electron beam machining limited to metallic materials? Why or
why not? - ANSWER-Can only be used on metal bc electron melts metal. The
energy and power density can be controlled and high velocity electrons can be
concentrated to a narrow beam.
What type of indenter does a rockwell hardness testest ("C" scale) use to measure
the hardness of heat treated high-carbon steel? - ANSWER-120 degree diamond
cone
In terms of the powdered metallurgy process, what is impregnation? - ANSWER-
filling a porous substrate to make it airtight. In powder metallurgy, impregnate inner
void prior to plating to reduce corrosion. Fill sintered component with lubricants
