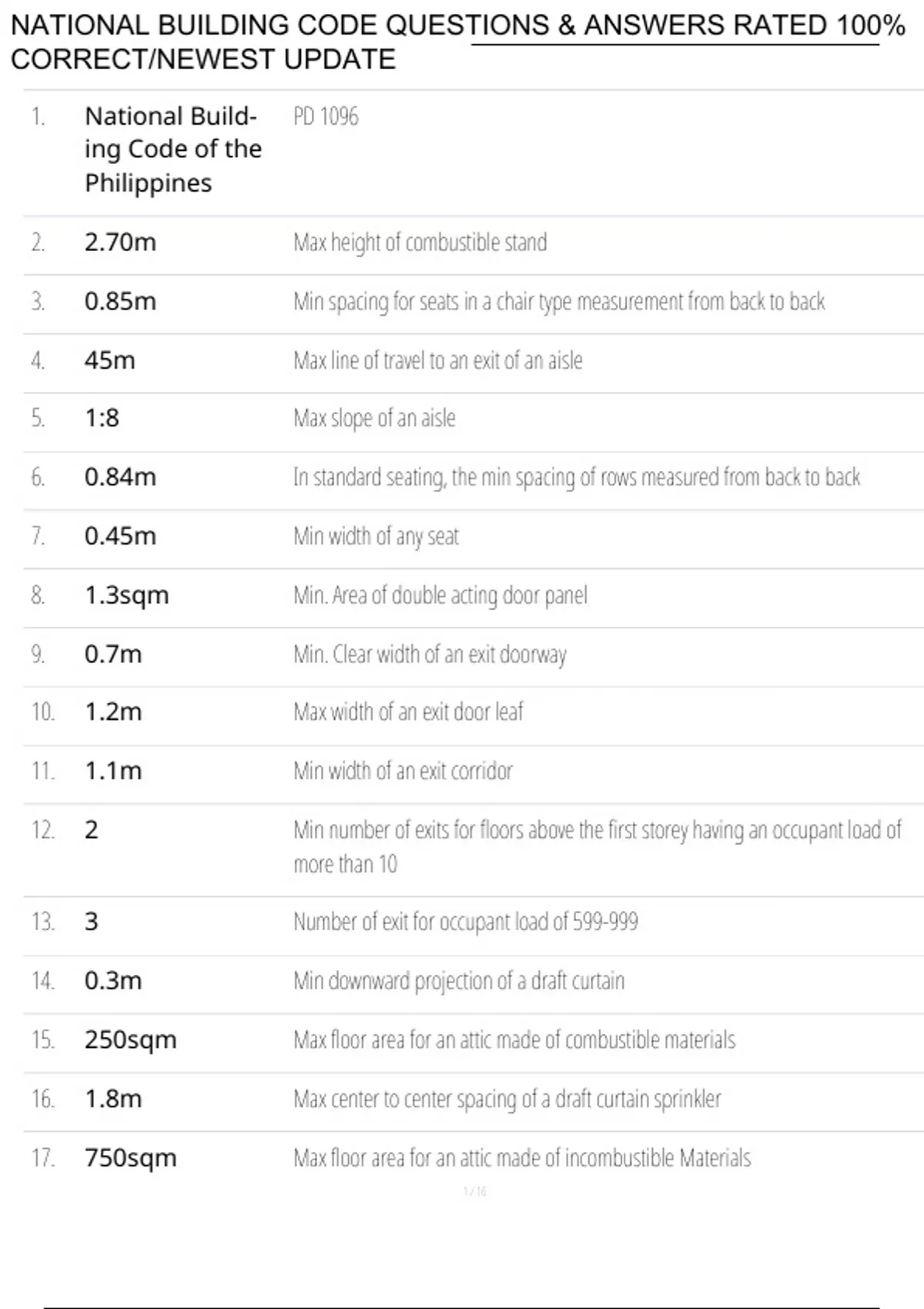

NATIONAL BUILDING CODE QUESTIONS & ANSWERS RATED 100%
National Building Code
CORRECT/NEWEST UPDATE
Study online at https://quizlet.com/_3j62ck
1. National Build- PD 1096
ing Code of the
Philippines
2. 2.70m Max height of combustible stand
3. 0.85m Min spacing for seats in a chair type measurement from back to back
4. 45m Max line of travel to an exit of an aisle
5. 1:8 Max slope of an aisle
6. 0.84m In standard seating, the min spacing of rows measured from back to back
7. 0.45m Min width of any seat
8. 1.3sqm Min. Area of double acting door panel
9. 0.7m Min. Clear width of an exit doorway
10. 1.2m Max width of an exit door leaf
11. 1.1m Min width of an exit corridor
12. 2 Min number of exits for floors above the first storey having an occupant load of
more than 10
13. 3 Number of exit for occupant load of 599-999
14. 0.3m Min downward projection of a draft curtain
15. 250sqm Max floor area for an attic made of combustible materials
16. 1.8m Max center to center spacing of a draft curtain sprinkler
17. 750sqm Max floor area for an attic made of incombustible Materials
, National Building Code
Study online at https://quizlet.com/_3j62ck
18. Ga 18 Standard gauge for metal hoods in barbecues
19. 300mm Min height of siamese connection above grade
20. 300mm Standard max distance of a standpipe from an opening stairway
21. 200mm Min wall thickness of a fireplace
22. 2 Min number of exits for a projection room
23. 600mm Min extended portion of a chimney above the roof
24. 50mm Min airspace between walls of masonry chimney above the roof
25. 12.5mm Min thickness of glass used for floors
26. 400mm Max rise of one row of seat to the next
27. 3 Min number of exits for stands within a building serving an occupant load of 300
28. 0.9m Min height of a guard rail located in front of a grand stand
29. 0.28m Min width of a run in a stand stair
30. 0.75m Min spacing for seats with backrests measured from back to back
31. 0.6m Min spacing for seats without backrests measured from back to back
32. 1.7m Min width of an exit door in an aisle
33. 10.7 lux Min intensity of light for exit
34. 1.1m Min width of side aisles
35. 30mm Min increase in width of aisles for every linear meter
, National Building Code
Study online at https://quizlet.com/_3j62ck
36. 800mm Min width of an aisle serving only one side
37. 50% of lot area Open space requirement for an interior lot
38. 10% of lot area Open space requirement for a corner or through lot
39. Inner court Bounded on all sides or around its periphery by building lines
40. 750mm Min stair width for a residence
41. 1.2sqm Standard min area of a toilet
42. 1.5m Min dimension of a kitchen
43. 1sqm Min area for vent shafts
44. 3cu.m Air space requirement for a school room per person
45. 14cu.m Air space requirement for a habitable room per person
46. 0.3sqm Min area of opening of an air duct
47. 300mm Max projection beyond the property line of a footing along the national road and
at least 2.40m in depth
48. 3m Min clearance of a canopy or a marquee from the sidewalk
49. 0.9m Min stair width for occupant load of less than 50
50. 1.2m Min width of temporary walkway
51. 3m Min clearance of an arcade above sidewalk
52. Setback Vacant space left between the building and lot lines less than 2m in width
53. 2m Min horizontal dimension of a court
