Quiz____?

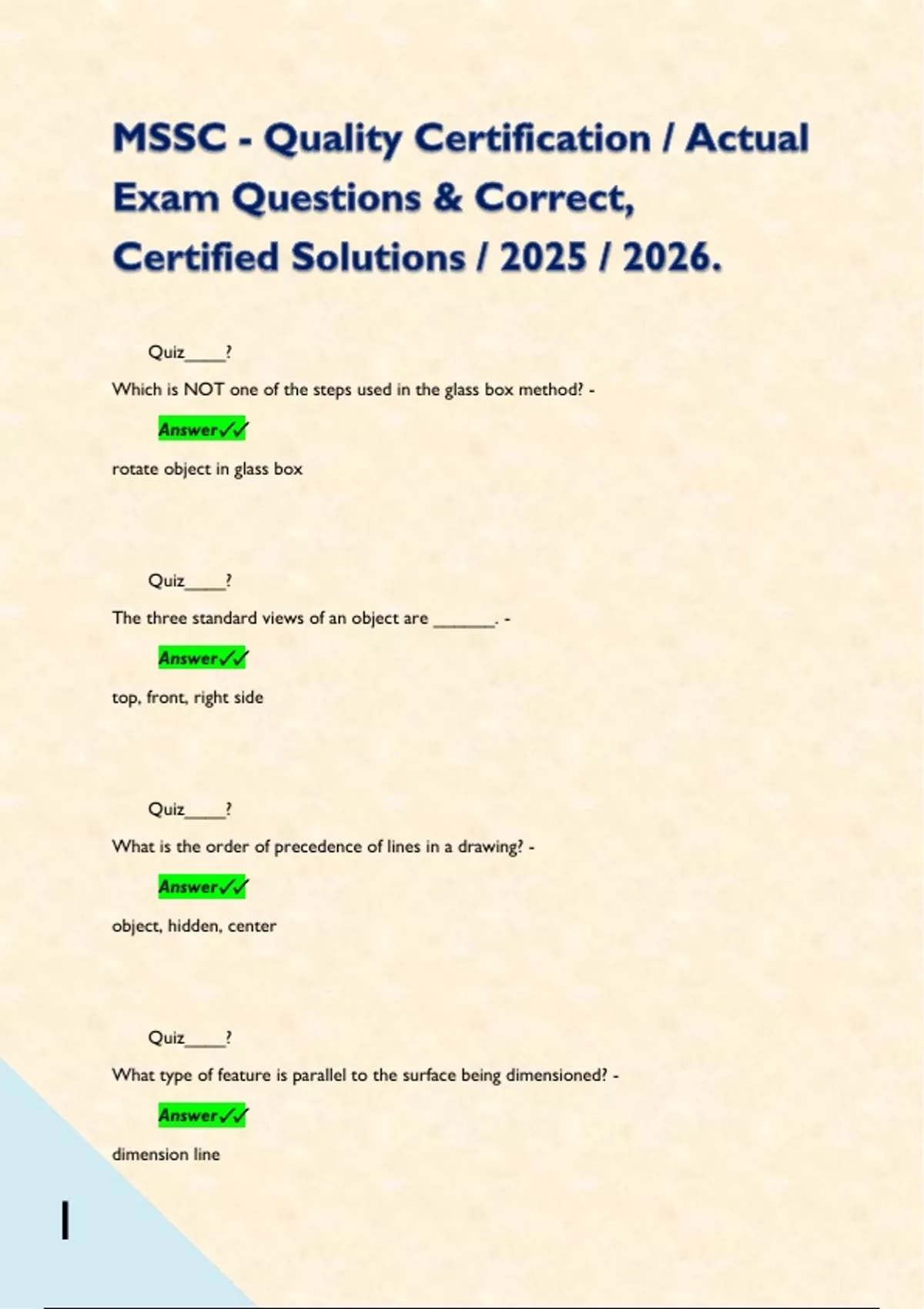

Which is NOT one of the steps used in the glass box method? -
Answer✓✓
rotate object in glass box
Quiz____?
The three standard views of an object are ______. -
Answer✓✓
top, front, right side
Quiz____?
What is the order of precedence of lines in a drawing? -
Answer✓✓
object, hidden, center
Quiz____?
What type of feature is parallel to the surface being dimensioned? -
Answer✓✓
dimension line
1
, Quiz____?
A ______ dimension is described in inches per foot. -
Answer✓✓
shaft taper
Quiz____?
To establish on a drawing that 1/4 inch equals 1 inch, the designer would write ______. -
Answer✓✓
1/4 = 1
Quiz____?
Section lines on a blueprint include _______. -
Answer✓✓
a surface that has been cut
Quiz____?
In a threaded fastener assembly what is designed to protect the threads? -
Answer✓✓
shank
Quiz____?
The minor diameter of a screw thread is measured at the ______. -
2
, Answer✓✓
root of screw thread
Quiz____?
The minor diameter of a threaded fastener is ______. -
Answer✓✓
the major diameter minus the thread height
Quiz____?
How do you determine the grade of a bolt? -
Answer✓✓
number of lines on the head +2 indicates the grade
Quiz____?
A screw with National fine thread is represented on a drawing with what designation? -
Answer✓✓
NF
Quiz____?
Metals treated by ______ processes become soft. -
Answer✓✓
annealing
3
