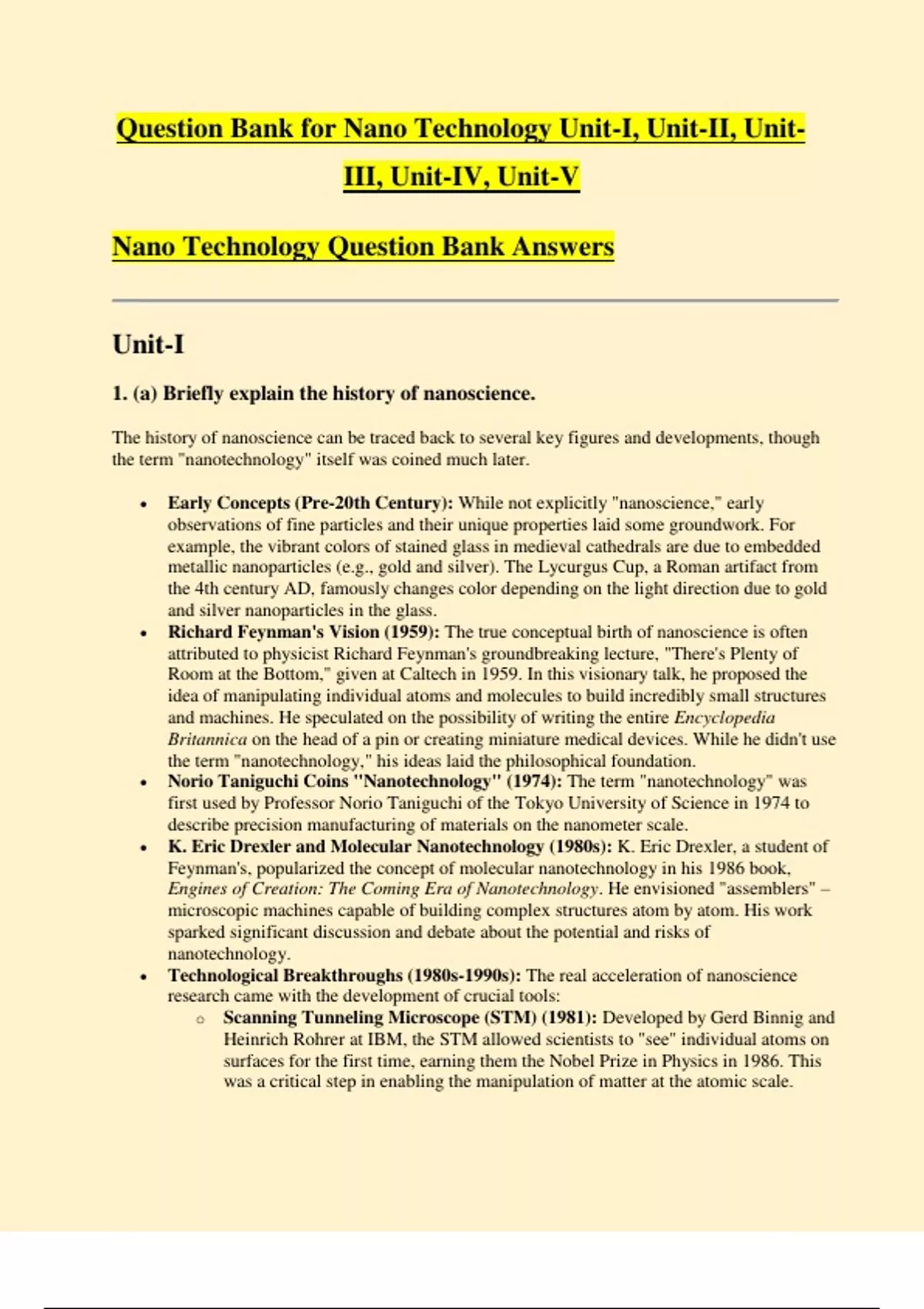

Question Bank for Nano Technology Unit-I, Unit-II, Unit-
III, Unit-IV, Unit-V
Nano Technology Question Bank Answers
Unit-I
1. (a) Briefly explain the history of nanoscience.
The history of nanoscience can be traced back to several key figures and developments, though
the term "nanotechnology" itself was coined much later.
Early Concepts (Pre-20th Century): While not explicitly "nanoscience," early
observations of fine particles and their unique properties laid some groundwork. For
example, the vibrant colors of stained glass in medieval cathedrals are due to embedded
metallic nanoparticles (e.g., gold and silver). The Lycurgus Cup, a Roman artifact from
the 4th century AD, famously changes color depending on the light direction due to gold
and silver nanoparticles in the glass.
Richard Feynman's Vision (1959): The true conceptual birth of nanoscience is often
attributed to physicist Richard Feynman's groundbreaking lecture, "There's Plenty of
Room at the Bottom," given at Caltech in 1959. In this visionary talk, he proposed the
idea of manipulating individual atoms and molecules to build incredibly small structures
and machines. He speculated on the possibility of writing the entire Encyclopedia
Britannica on the head of a pin or creating miniature medical devices. While he didn't use
the term "nanotechnology," his ideas laid the philosophical foundation.
Norio Taniguchi Coins "Nanotechnology" (1974): The term "nanotechnology" was
first used by Professor Norio Taniguchi of the Tokyo University of Science in 1974 to
describe precision manufacturing of materials on the nanometer scale.
K. Eric Drexler and Molecular Nanotechnology (1980s): K. Eric Drexler, a student of
Feynman's, popularized the concept of molecular nanotechnology in his 1986 book,
Engines of Creation: The Coming Era of Nanotechnology. He envisioned "assemblers" –
microscopic machines capable of building complex structures atom by atom. His work
sparked significant discussion and debate about the potential and risks of
nanotechnology.
Technological Breakthroughs (1980s-1990s): The real acceleration of nanoscience
research came with the development of crucial tools:
o Scanning Tunneling Microscope (STM) (1981): Developed by Gerd Binnig and
Heinrich Rohrer at IBM, the STM allowed scientists to "see" individual atoms on
surfaces for the first time, earning them the Nobel Prize in Physics in 1986. This
was a critical step in enabling the manipulation of matter at the atomic scale.
, o Atomic Force Microscope (AFM) (1986): Also developed by Binnig and
collaborators, the AFM provided a way to image and manipulate both conducting
and non-conducting surfaces at the atomic scale.
o Discovery of Fullerenes (1985): Robert Curl, Harold Kroto, and Richard Smalley
discovered C60 (buckyball), a new allotrope of carbon, which opened up a new
class of nanoscale materials.
o Discovery of Carbon Nanotubes (1991): Sumio Iijima's discovery of carbon
nanotubes further fueled the excitement, revealing materials with extraordinary
strength, electrical conductivity, and thermal properties.
Present Day: Since the late 20th century, nanoscience has rapidly evolved into a diverse
and interdisciplinary field, with significant research and commercial applications
emerging across various sectors, including medicine, electronics, energy, and materials
science. Government funding initiatives and increased public awareness have solidified
its place as a transformative technology.
1. (b) Discuss the classification of nanomaterials.
Nanomaterials are materials with at least one dimension in the nanoscale (typically 1-100
nanometers). They are broadly classified based on their dimensions, composition, and
morphology.
I. Classification Based on Dimensions:
This is the most common classification, based on how many dimensions of the material are
confined to the nanoscale:
0-D Nanomaterials (Zero-Dimensional): All three dimensions are confined to the
nanoscale. These are typically individual nanoparticles or clusters of atoms.
o Examples: Quantum dots (semiconductor nanocrystals), fullerenes (e.g., C60
buckyballs), metallic nanoparticles (gold nanoparticles, silver nanoparticles).
o Properties: Exhibit quantum mechanical effects due to quantum confinement.
Their properties (optical, electronic) are highly size-dependent.
1-D Nanomaterials (One-Dimensional): Two dimensions are confined to the nanoscale,
while the third dimension is larger. These are typically elongated structures.
o Examples: Nanotubes (carbon nanotubes, boron nitride nanotubes), nanowires
(silicon nanowires, metallic nanowires), nanofibers, nanorods.
o Properties: Anisotropic properties (different along different directions). High
aspect ratio provides large surface area. Can exhibit enhanced electrical
conductivity, mechanical strength, and catalytic activity.
2-D Nanomaterials (Two-Dimensional): One dimension is confined to the nanoscale
(typically the thickness), while the other two dimensions are larger. These are typically
sheet-like structures.
o Examples: Graphene, transition metal dichalcogenides (TMDCs like MoS2),
boron nitride nanosheets, clay nanosheets.
, o Properties: Extremely high surface area to volume ratio. Can possess unique
electronic, optical, and mechanical properties due to their atomically thin nature
(e.g., graphene's extraordinary strength and conductivity).
3-D Nanomaterials (Three-Dimensional): All three dimensions are outside the
nanoscale, but the material contains nanoscale features within its bulk structure.
o Examples: Nanoporous materials (e.g., zeolites, mesoporous silica),
nanocomposites (materials with nanoparticles dispersed in a matrix), bulk
materials with nanoscale grains (nanocrystalline materials).
o Properties: Properties are influenced by the internal nanoscale features. For
example, nanoporous materials have high surface area for catalysis or adsorption,
and nanocrystalline materials can exhibit enhanced hardness and strength.
II. Classification Based on Composition:
Carbon-based Nanomaterials: Primarily composed of carbon atoms.
o Examples: Fullerenes, carbon nanotubes, graphene, carbon nanofibers.
o Properties: Excellent electrical and thermal conductivity, high mechanical
strength, lightweight.
Metal-based Nanomaterials: Composed of metallic elements.
o Examples: Gold nanoparticles, silver nanoparticles, iron oxide nanoparticles.
o Properties: Unique optical properties (plasmon resonance), catalytic activity,
magnetic properties.
Ceramic-based Nanomaterials: Composed of inorganic, non-metallic compounds.
o Examples: Titanium dioxide nanoparticles, zinc oxide nanoparticles, alumina
nanoparticles, silica nanoparticles.
o Properties: High hardness, chemical stability, often semiconducting or
insulating, used in sunscreens, catalysts, and coatings.
Polymer-based Nanomaterials: Composed of polymeric materials.
o Examples: Dendrimers, polymeric nanoparticles, block copolymer micelles.
o Properties: Biocompatibility, tunable properties, used in drug delivery, coatings,
and sensors.
Composite Nanomaterials: Combinations of two or more different nanomaterials or
nanomaterials embedded in a bulk matrix.
o Examples: Polymer-nanotube composites, metal-ceramic nanocomposites.
o Properties: Combine the advantageous properties of their individual components,
often leading to synergistic effects.
III. Classification Based on Morphology (Shape):
While related to dimensionality, this focuses more on the specific shape.
Nanoparticles: Generally spherical or quasi-spherical.
Nanotubes: Cylindrical, hollow structures.
Nanowires/Nanorods: Solid, elongated cylindrical or rod-like structures.
Nanosheets/Nanoplates: Flat, thin, two-dimensional structures.
Nanofibers: Long, thread-like structures, often solid.
, Nanoflowers, Nanocages, Nanobelts: More complex and specific morphologies.
This comprehensive classification helps in understanding the diverse nature of nanomaterials and
their potential applications based on their unique characteristics.
2. Explain the following (a) Nanometer (b) Nanomaterials (c) Nanotechnology
(a) Nanometer (nm): A nanometer is a unit of length in the metric system, equal to one billionth
of a meter (10−9 meters). To put this into perspective:
There are one million nanometers in a millimeter.
A human hair is approximately 80,000 to 100,000 nanometers thick.
The diameter of a single atom is typically around 0.1 to 0.5 nanometers.
A DNA double helix is about 2.5 nanometers in diameter.
The nanometer is the fundamental unit of measurement in nanoscience and nanotechnology
because it defines the scale at which materials often exhibit unique physical, chemical, and
biological properties that differ significantly from their bulk counterparts. These distinct
properties arise due to quantum mechanical effects (like quantum confinement), increased
surface area to volume ratio, and altered interactions at the nanoscale.
(b) Nanomaterials: Nanomaterials are materials that have at least one dimension within the
nanoscale, typically ranging from 1 to 100 nanometers. This size range is crucial because it's
where the classical laws of physics begin to give way to quantum mechanical effects, leading to
novel and enhanced properties not observed in larger "bulk" materials of the same composition.
Key characteristics and reasons for unique properties of nanomaterials:
High Surface Area to Volume Ratio: As particle size decreases, the proportion of atoms
on the surface relative to those in the interior increases dramatically. This high surface
area is critical for applications like catalysis, adsorption, and sensing.
Quantum Confinement Effects: When the size of a material becomes comparable to the
de Broglie wavelength of its electrons, the energy levels of the electrons become discrete
rather than continuous. This leads to size-dependent optical (e.g., color change in
quantum dots) and electronic properties.
Dominance of Surface Effects: At the nanoscale, surface forces (like van der Waals
forces, electrostatic interactions) become more dominant than bulk forces (like gravity or
inertia), influencing material behavior.
Reduced Defects: Smaller volumes are statistically less likely to contain defects, which
can contribute to enhanced mechanical strength in some nanomaterials.
Examples of nanomaterials include:
0-D: Quantum dots, fullerenes, gold nanoparticles.
1-D: Carbon nanotubes, nanowires.
2-D: Graphene, nanosheets.
III, Unit-IV, Unit-V
Nano Technology Question Bank Answers
Unit-I
1. (a) Briefly explain the history of nanoscience.
The history of nanoscience can be traced back to several key figures and developments, though
the term "nanotechnology" itself was coined much later.
Early Concepts (Pre-20th Century): While not explicitly "nanoscience," early
observations of fine particles and their unique properties laid some groundwork. For
example, the vibrant colors of stained glass in medieval cathedrals are due to embedded
metallic nanoparticles (e.g., gold and silver). The Lycurgus Cup, a Roman artifact from
the 4th century AD, famously changes color depending on the light direction due to gold
and silver nanoparticles in the glass.
Richard Feynman's Vision (1959): The true conceptual birth of nanoscience is often
attributed to physicist Richard Feynman's groundbreaking lecture, "There's Plenty of
Room at the Bottom," given at Caltech in 1959. In this visionary talk, he proposed the
idea of manipulating individual atoms and molecules to build incredibly small structures
and machines. He speculated on the possibility of writing the entire Encyclopedia
Britannica on the head of a pin or creating miniature medical devices. While he didn't use
the term "nanotechnology," his ideas laid the philosophical foundation.
Norio Taniguchi Coins "Nanotechnology" (1974): The term "nanotechnology" was
first used by Professor Norio Taniguchi of the Tokyo University of Science in 1974 to
describe precision manufacturing of materials on the nanometer scale.
K. Eric Drexler and Molecular Nanotechnology (1980s): K. Eric Drexler, a student of
Feynman's, popularized the concept of molecular nanotechnology in his 1986 book,
Engines of Creation: The Coming Era of Nanotechnology. He envisioned "assemblers" –
microscopic machines capable of building complex structures atom by atom. His work
sparked significant discussion and debate about the potential and risks of
nanotechnology.
Technological Breakthroughs (1980s-1990s): The real acceleration of nanoscience
research came with the development of crucial tools:
o Scanning Tunneling Microscope (STM) (1981): Developed by Gerd Binnig and
Heinrich Rohrer at IBM, the STM allowed scientists to "see" individual atoms on
surfaces for the first time, earning them the Nobel Prize in Physics in 1986. This
was a critical step in enabling the manipulation of matter at the atomic scale.
, o Atomic Force Microscope (AFM) (1986): Also developed by Binnig and
collaborators, the AFM provided a way to image and manipulate both conducting
and non-conducting surfaces at the atomic scale.
o Discovery of Fullerenes (1985): Robert Curl, Harold Kroto, and Richard Smalley
discovered C60 (buckyball), a new allotrope of carbon, which opened up a new
class of nanoscale materials.
o Discovery of Carbon Nanotubes (1991): Sumio Iijima's discovery of carbon
nanotubes further fueled the excitement, revealing materials with extraordinary
strength, electrical conductivity, and thermal properties.
Present Day: Since the late 20th century, nanoscience has rapidly evolved into a diverse
and interdisciplinary field, with significant research and commercial applications
emerging across various sectors, including medicine, electronics, energy, and materials
science. Government funding initiatives and increased public awareness have solidified
its place as a transformative technology.
1. (b) Discuss the classification of nanomaterials.
Nanomaterials are materials with at least one dimension in the nanoscale (typically 1-100
nanometers). They are broadly classified based on their dimensions, composition, and
morphology.
I. Classification Based on Dimensions:
This is the most common classification, based on how many dimensions of the material are
confined to the nanoscale:
0-D Nanomaterials (Zero-Dimensional): All three dimensions are confined to the
nanoscale. These are typically individual nanoparticles or clusters of atoms.
o Examples: Quantum dots (semiconductor nanocrystals), fullerenes (e.g., C60
buckyballs), metallic nanoparticles (gold nanoparticles, silver nanoparticles).
o Properties: Exhibit quantum mechanical effects due to quantum confinement.
Their properties (optical, electronic) are highly size-dependent.
1-D Nanomaterials (One-Dimensional): Two dimensions are confined to the nanoscale,
while the third dimension is larger. These are typically elongated structures.
o Examples: Nanotubes (carbon nanotubes, boron nitride nanotubes), nanowires
(silicon nanowires, metallic nanowires), nanofibers, nanorods.
o Properties: Anisotropic properties (different along different directions). High
aspect ratio provides large surface area. Can exhibit enhanced electrical
conductivity, mechanical strength, and catalytic activity.
2-D Nanomaterials (Two-Dimensional): One dimension is confined to the nanoscale
(typically the thickness), while the other two dimensions are larger. These are typically
sheet-like structures.
o Examples: Graphene, transition metal dichalcogenides (TMDCs like MoS2),
boron nitride nanosheets, clay nanosheets.
, o Properties: Extremely high surface area to volume ratio. Can possess unique
electronic, optical, and mechanical properties due to their atomically thin nature
(e.g., graphene's extraordinary strength and conductivity).
3-D Nanomaterials (Three-Dimensional): All three dimensions are outside the
nanoscale, but the material contains nanoscale features within its bulk structure.
o Examples: Nanoporous materials (e.g., zeolites, mesoporous silica),
nanocomposites (materials with nanoparticles dispersed in a matrix), bulk
materials with nanoscale grains (nanocrystalline materials).
o Properties: Properties are influenced by the internal nanoscale features. For
example, nanoporous materials have high surface area for catalysis or adsorption,
and nanocrystalline materials can exhibit enhanced hardness and strength.
II. Classification Based on Composition:
Carbon-based Nanomaterials: Primarily composed of carbon atoms.
o Examples: Fullerenes, carbon nanotubes, graphene, carbon nanofibers.
o Properties: Excellent electrical and thermal conductivity, high mechanical
strength, lightweight.
Metal-based Nanomaterials: Composed of metallic elements.
o Examples: Gold nanoparticles, silver nanoparticles, iron oxide nanoparticles.
o Properties: Unique optical properties (plasmon resonance), catalytic activity,
magnetic properties.
Ceramic-based Nanomaterials: Composed of inorganic, non-metallic compounds.
o Examples: Titanium dioxide nanoparticles, zinc oxide nanoparticles, alumina
nanoparticles, silica nanoparticles.
o Properties: High hardness, chemical stability, often semiconducting or
insulating, used in sunscreens, catalysts, and coatings.
Polymer-based Nanomaterials: Composed of polymeric materials.
o Examples: Dendrimers, polymeric nanoparticles, block copolymer micelles.
o Properties: Biocompatibility, tunable properties, used in drug delivery, coatings,
and sensors.
Composite Nanomaterials: Combinations of two or more different nanomaterials or
nanomaterials embedded in a bulk matrix.
o Examples: Polymer-nanotube composites, metal-ceramic nanocomposites.
o Properties: Combine the advantageous properties of their individual components,
often leading to synergistic effects.
III. Classification Based on Morphology (Shape):
While related to dimensionality, this focuses more on the specific shape.
Nanoparticles: Generally spherical or quasi-spherical.
Nanotubes: Cylindrical, hollow structures.
Nanowires/Nanorods: Solid, elongated cylindrical or rod-like structures.
Nanosheets/Nanoplates: Flat, thin, two-dimensional structures.
Nanofibers: Long, thread-like structures, often solid.
, Nanoflowers, Nanocages, Nanobelts: More complex and specific morphologies.
This comprehensive classification helps in understanding the diverse nature of nanomaterials and
their potential applications based on their unique characteristics.
2. Explain the following (a) Nanometer (b) Nanomaterials (c) Nanotechnology
(a) Nanometer (nm): A nanometer is a unit of length in the metric system, equal to one billionth
of a meter (10−9 meters). To put this into perspective:
There are one million nanometers in a millimeter.
A human hair is approximately 80,000 to 100,000 nanometers thick.
The diameter of a single atom is typically around 0.1 to 0.5 nanometers.
A DNA double helix is about 2.5 nanometers in diameter.
The nanometer is the fundamental unit of measurement in nanoscience and nanotechnology
because it defines the scale at which materials often exhibit unique physical, chemical, and
biological properties that differ significantly from their bulk counterparts. These distinct
properties arise due to quantum mechanical effects (like quantum confinement), increased
surface area to volume ratio, and altered interactions at the nanoscale.
(b) Nanomaterials: Nanomaterials are materials that have at least one dimension within the
nanoscale, typically ranging from 1 to 100 nanometers. This size range is crucial because it's
where the classical laws of physics begin to give way to quantum mechanical effects, leading to
novel and enhanced properties not observed in larger "bulk" materials of the same composition.
Key characteristics and reasons for unique properties of nanomaterials:
High Surface Area to Volume Ratio: As particle size decreases, the proportion of atoms
on the surface relative to those in the interior increases dramatically. This high surface
area is critical for applications like catalysis, adsorption, and sensing.
Quantum Confinement Effects: When the size of a material becomes comparable to the
de Broglie wavelength of its electrons, the energy levels of the electrons become discrete
rather than continuous. This leads to size-dependent optical (e.g., color change in
quantum dots) and electronic properties.
Dominance of Surface Effects: At the nanoscale, surface forces (like van der Waals
forces, electrostatic interactions) become more dominant than bulk forces (like gravity or
inertia), influencing material behavior.
Reduced Defects: Smaller volumes are statistically less likely to contain defects, which
can contribute to enhanced mechanical strength in some nanomaterials.
Examples of nanomaterials include:
0-D: Quantum dots, fullerenes, gold nanoparticles.
1-D: Carbon nanotubes, nanowires.
2-D: Graphene, nanosheets.
