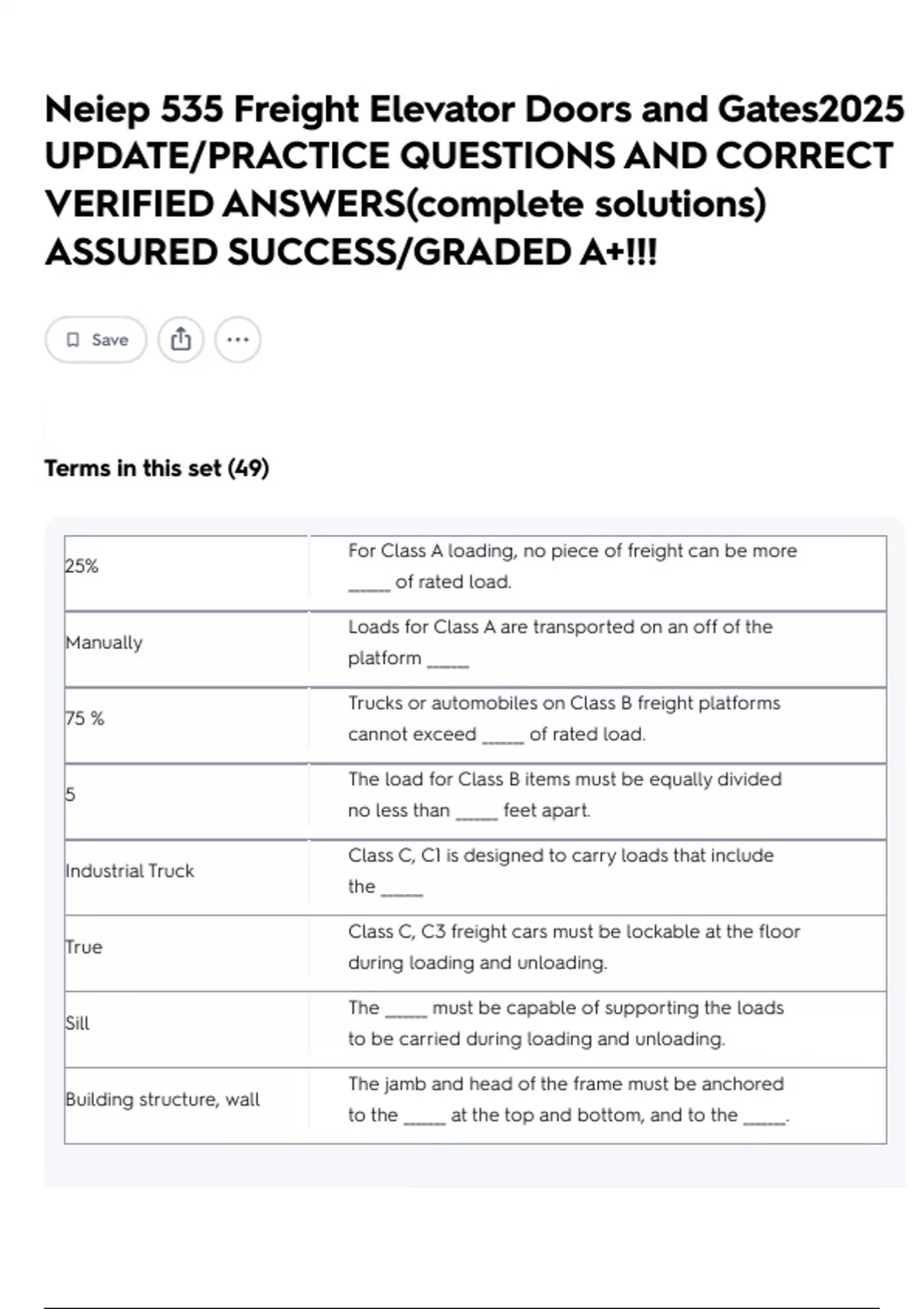

Neiep 535 Freight Elevator Doors and Gates2025
UPDATE/PRACTICE QUESTIONS AND CORRECT
VERIFIED ANSWERS(complete solutions)
ASSURED SUCCESS/GRADED A+!!!
Save
Terms in this set (49)
For Class A loading, no piece of freight can be more
25%
_______ of rated load.
Loads for Class A are transported on an off of the
Manually
platform _______
Trucks or automobiles on Class B freight platforms
75 %
cannot exceed _______ of rated load.
The load for Class B items must be equally divided
5
no less than _______ feet apart.
Class C, C1 is designed to carry loads that include
Industrial Truck
the _______
Class C, C3 freight cars must be lockable at the floor
True
during loading and unloading.
The _______ must be capable of supporting the loads
Sill
to be carried during loading and unloading.
The jamb and head of the frame must be anchored
Building structure, wall
to the _______ at the top and bottom, and to the _______.
, Regular doors open and close in the same vertical
Equal plane, meet in the center, and the panel dimensions
are _______
For _______ doors, the upper panel must be capable of
Pass-type
opening up behind the lower panel above it.
The _______ closes the gap between the hoistway wall
Fire intel and the upper panel when the door, described in
Question 10.
_______ doors are used when there are restricted
Telescoping
overhead spaces at the upper floors.
_______ doors are used when there is restricted space
Compound
in the pit area for the opening.
The maximum allowable area is 80 sq. inches for a
Vision panel
_______
For bi-parting doors, there must be a physical means
3/4 of inch to limit the doors from closing to no more than _______
of each other.
The panels of the freight hoistway door must overlap
2
the frame by at least _______ inches.
Double Pass-type doors use _______ bladed rails.
Latches on manually operated doors are used in
False
place of interlocks.
Pull straps must not be more than _______ feet _______
6, 6 inches above the landing when the doors are fully
opened on manually operated doors.
Interlocks send two signals to the controller: the
Closed, locked
doors are _______ and _______.
When an interlock is tamper-resistant, it means the
True door closed or locked contacts cannot be
overridden when the hoistway doors are open.
