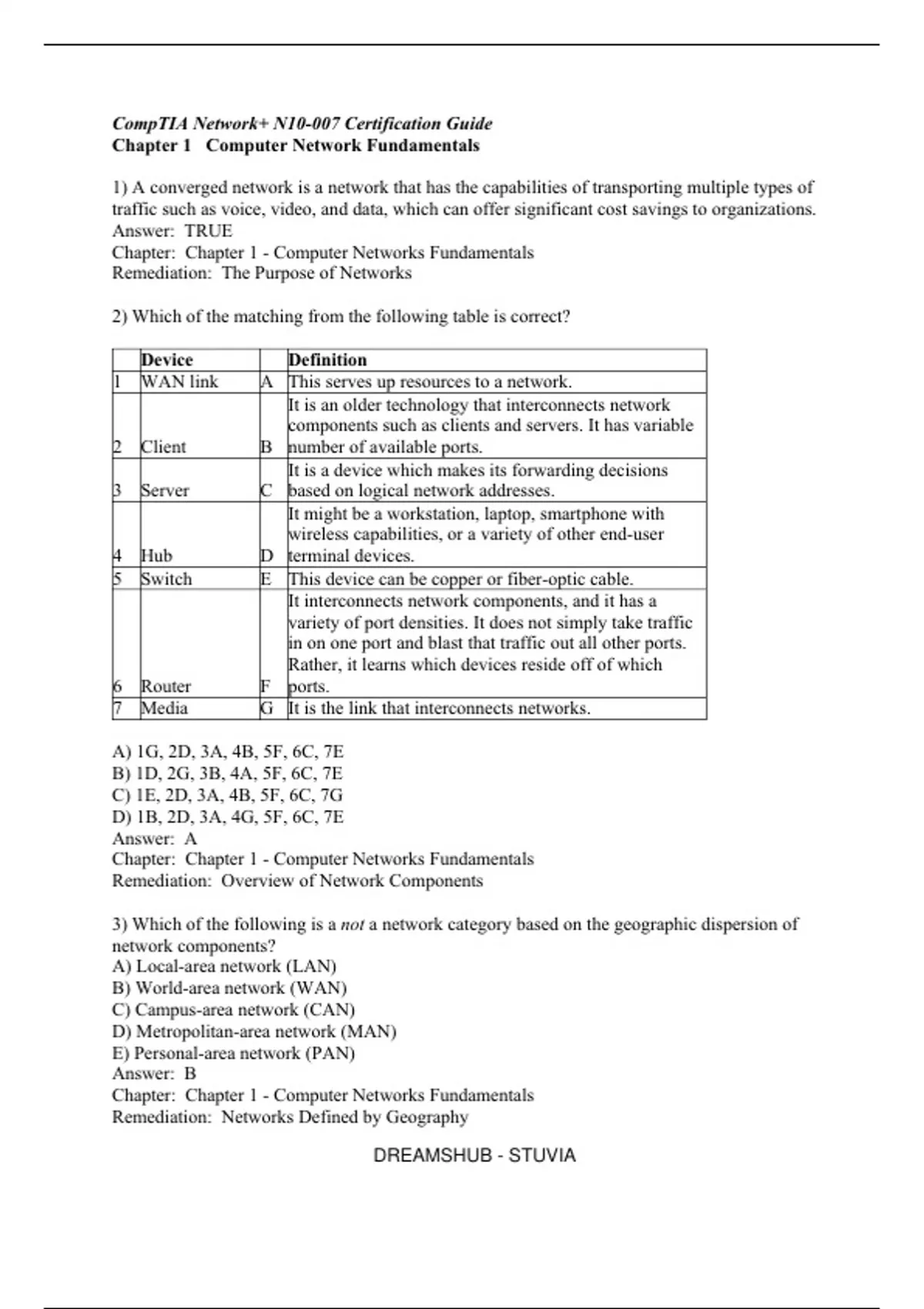

CompTIA Network+ N10-007 Certification Guide
Chapter 1 Computer Network Fundamentals
1) A converged network is a network that has the capabilities of transporting multiple types of
traffic such as voice, video, and data, which can offer significant cost savings to organizations.
Answer: TRUE
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: The Purpose of Networks
2) Which of the matching from the following table is correct?
DR
Device Definition
1 WAN link A This serves up resources to a network.
It is an older technology that interconnects network
components such as clients and servers. It has variable
E
2 Client B number of available ports.
It is a device which makes its forwarding decisions
AM
3 Server C based on logical network addresses.
It might be a workstation, laptop, smartphone with
wireless capabilities, or a variety of other end-user
4 Hub D terminal devices.
5 Switch E This device can be copper or fiber-optic cable.
It interconnects network components, and it has a
SH
variety of port densities. It does not simply take traffic
in on one port and blast that traffic out all other ports.
Rather, it learns which devices reside off of which
6 Router F ports.
UB
7 Media G It is the link that interconnects networks.
A) 1G, 2D, 3A, 4B, 5F, 6C, 7E
B) 1D, 2G, 3B, 4A, 5F, 6C, 7E
C) 1E, 2D, 3A, 4B, 5F, 6C, 7G
_S
D) 1B, 2D, 3A, 4G, 5F, 6C, 7E
Answer: A
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Overview of Network Components
?
3) Which of the following is a not a network category based on the geographic dispersion of
?
network components?
A) Local-area network (LAN)
B) World-area network (WAN)
C) Campus-area network (CAN)
D) Metropolitan-area network (MAN)
E) Personal-area network (PAN)
Answer: B
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Networks Defined by Geography
DREAMSHUB - STUVIA
,4) What is device type A and B in the following exhibit?
DR
E AM
A) Device A is a switch, and device B is a hub.
B) Device A is a switch, and device B is a router.
C) Device A is a switch, and device B is a server.
D) Device A is a router, and device B is a switch.
SH
Answer: B
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Overview of Network Components
5) What is the label of A in the following exhibit?
UB
_S
A) IP address
B) LAN link
?
C) IP WAN
D) Router
?
Answer: C
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: WAN
DREAMSHUB - STUVIA
,6) Which of the matching from the following diagram is correct?
Network Class Definition
It interconnects locations scattered
1 Local-area network (LAN) A throughout a metropolitan area.
It is a network whose scale is even
smaller than a LAN. An example of this
type of network is a connection between a
PC and a digital camera via a universal
2 Wide-area network (WAN) B serial bus.
DR
Metropolitan-area network It interconnects network components
3 (MAN) C within a local region.
It interconnects network components that
are geographically dispersed between two
4 Personal-area network (PAN) D locations.
E
A) 1C, 2D, 3A, 4B
AM
B) 1D, 2C, 3B, 4A
C) 1B, 2D, 3A, 4C
D) 1A, 2D, 3C, 4B
Answer: A
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Networks Defined by Geography
SH
7) The actual traffic flow determines the logical topology, while how components are physically
interconnected determines the physical topology.
Answer: TRUE
UB
Explanation: The actual traffic flow determines the logical topology, while how components are
physically interconnected determines the physical topology.
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Physical Versus Logical Topology
_S
? ?
DREAMSHUB - STUVIA
, 8) Which of the matching from the following diagram is correct?
DR
E AM
SH
UB
_S
A) 1B, 2C, 3A, 4D
B) 1A, 2B, 3C, 4D
C) 1B, 2A, 3D, 4C
?
D) 1D, 2C, 3B, 4A
Answer: A
?
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Physical Versus Logical Topology
DREAMSHUB - STUVIA
Chapter 1 Computer Network Fundamentals
1) A converged network is a network that has the capabilities of transporting multiple types of
traffic such as voice, video, and data, which can offer significant cost savings to organizations.
Answer: TRUE
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: The Purpose of Networks
2) Which of the matching from the following table is correct?
DR
Device Definition
1 WAN link A This serves up resources to a network.
It is an older technology that interconnects network
components such as clients and servers. It has variable
E
2 Client B number of available ports.
It is a device which makes its forwarding decisions
AM
3 Server C based on logical network addresses.
It might be a workstation, laptop, smartphone with
wireless capabilities, or a variety of other end-user
4 Hub D terminal devices.
5 Switch E This device can be copper or fiber-optic cable.
It interconnects network components, and it has a
SH
variety of port densities. It does not simply take traffic
in on one port and blast that traffic out all other ports.
Rather, it learns which devices reside off of which
6 Router F ports.
UB
7 Media G It is the link that interconnects networks.
A) 1G, 2D, 3A, 4B, 5F, 6C, 7E
B) 1D, 2G, 3B, 4A, 5F, 6C, 7E
C) 1E, 2D, 3A, 4B, 5F, 6C, 7G
_S
D) 1B, 2D, 3A, 4G, 5F, 6C, 7E
Answer: A
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Overview of Network Components
?
3) Which of the following is a not a network category based on the geographic dispersion of
?
network components?
A) Local-area network (LAN)
B) World-area network (WAN)
C) Campus-area network (CAN)
D) Metropolitan-area network (MAN)
E) Personal-area network (PAN)
Answer: B
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Networks Defined by Geography
DREAMSHUB - STUVIA
,4) What is device type A and B in the following exhibit?
DR
E AM
A) Device A is a switch, and device B is a hub.
B) Device A is a switch, and device B is a router.
C) Device A is a switch, and device B is a server.
D) Device A is a router, and device B is a switch.
SH
Answer: B
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Overview of Network Components
5) What is the label of A in the following exhibit?
UB
_S
A) IP address
B) LAN link
?
C) IP WAN
D) Router
?
Answer: C
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: WAN
DREAMSHUB - STUVIA
,6) Which of the matching from the following diagram is correct?
Network Class Definition
It interconnects locations scattered
1 Local-area network (LAN) A throughout a metropolitan area.
It is a network whose scale is even
smaller than a LAN. An example of this
type of network is a connection between a
PC and a digital camera via a universal
2 Wide-area network (WAN) B serial bus.
DR
Metropolitan-area network It interconnects network components
3 (MAN) C within a local region.
It interconnects network components that
are geographically dispersed between two
4 Personal-area network (PAN) D locations.
E
A) 1C, 2D, 3A, 4B
AM
B) 1D, 2C, 3B, 4A
C) 1B, 2D, 3A, 4C
D) 1A, 2D, 3C, 4B
Answer: A
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Networks Defined by Geography
SH
7) The actual traffic flow determines the logical topology, while how components are physically
interconnected determines the physical topology.
Answer: TRUE
UB
Explanation: The actual traffic flow determines the logical topology, while how components are
physically interconnected determines the physical topology.
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Physical Versus Logical Topology
_S
? ?
DREAMSHUB - STUVIA
, 8) Which of the matching from the following diagram is correct?
DR
E AM
SH
UB
_S
A) 1B, 2C, 3A, 4D
B) 1A, 2B, 3C, 4D
C) 1B, 2A, 3D, 4C
?
D) 1D, 2C, 3B, 4A
Answer: A
?
Chapter: Chapter 1 - Computer Networks Fundamentals
Remediation: Physical Versus Logical Topology
