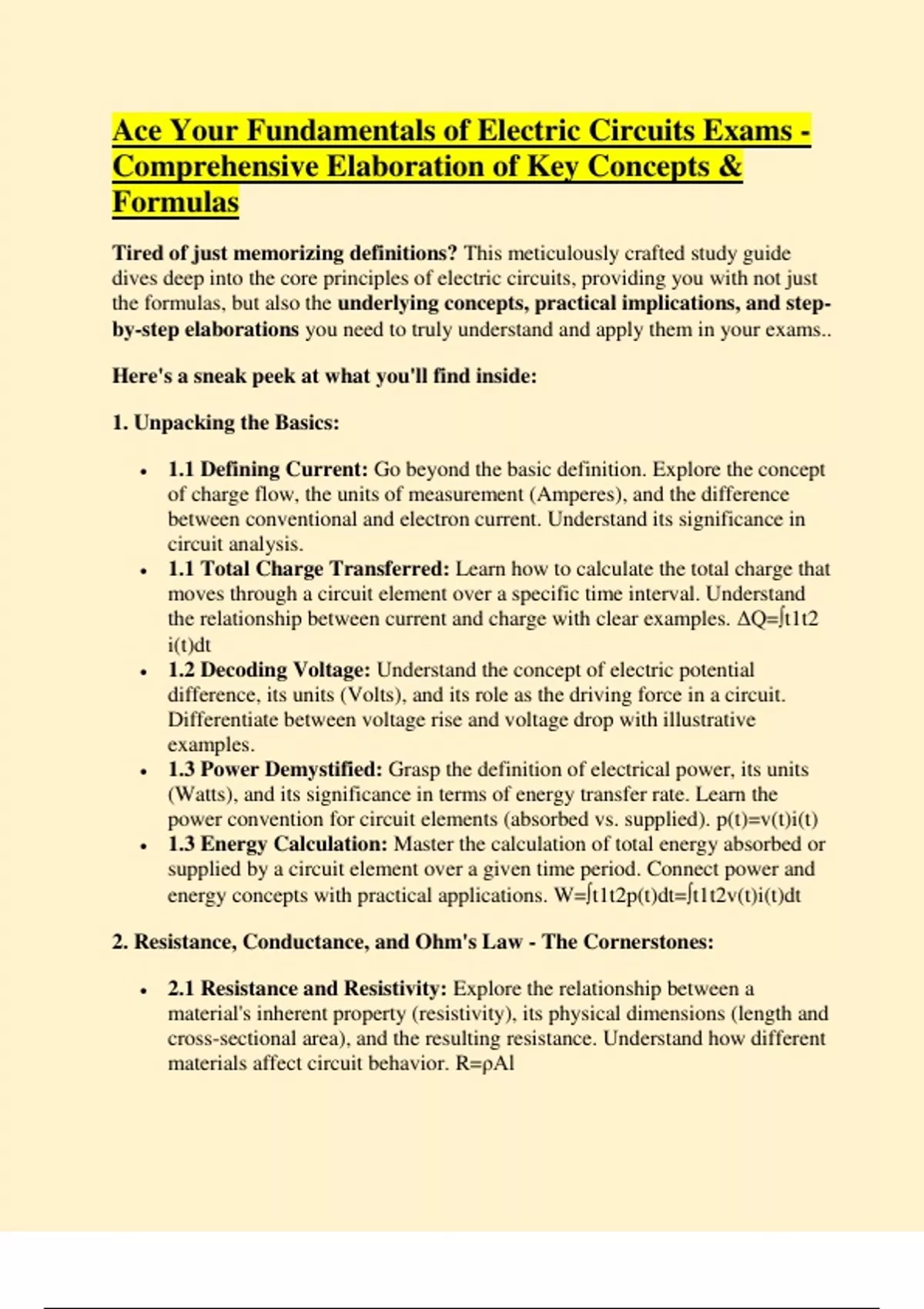

Ace Your Fundamentals of Electric Circuits Exams -
Comprehensive Elaboration of Key Concepts &
Formulas
Tired of just memorizing definitions? This meticulously crafted study guide
dives deep into the core principles of electric circuits, providing you with not just
the formulas, but also the underlying concepts, practical implications, and step-
by-step elaborations you need to truly understand and apply them in your exams..
Here's a sneak peek at what you'll find inside:
1. Unpacking the Basics:
1.1 Defining Current: Go beyond the basic definition. Explore the concept
of charge flow, the units of measurement (Amperes), and the difference
between conventional and electron current. Understand its significance in
circuit analysis.
1.1 Total Charge Transferred: Learn how to calculate the total charge that
moves through a circuit element over a specific time interval. Understand
the relationship between current and charge with clear examples. ΔQ=∫t1t2
i(t)dt
1.2 Decoding Voltage: Understand the concept of electric potential
difference, its units (Volts), and its role as the driving force in a circuit.
Differentiate between voltage rise and voltage drop with illustrative
examples.
1.3 Power Demystified: Grasp the definition of electrical power, its units
(Watts), and its significance in terms of energy transfer rate. Learn the
power convention for circuit elements (absorbed vs. supplied). p(t)=v(t)i(t)
1.3 Energy Calculation: Master the calculation of total energy absorbed or
supplied by a circuit element over a given time period. Connect power and
energy concepts with practical applications. W=∫t1t2p(t)dt=∫t1t2v(t)i(t)dt
2. Resistance, Conductance, and Ohm's Law - The Cornerstones:
2.1 Resistance and Resistivity: Explore the relationship between a
material's inherent property (resistivity), its physical dimensions (length and
cross-sectional area), and the resulting resistance. Understand how different
materials affect circuit behavior. R=ρAl
, 2.1 The Inverse - Conductance: Introduce the concept of conductance as
the reciprocal of resistance. Understand its unit (Siemens) and its utility in
analyzing parallel circuits. G=R1=σlA
2.1 Ohm's Law - The Fundamental Relationship: Deeply understand the
linear relationship between voltage, current, and resistance for ohmic
materials. Learn its applications and limitations in circuit analysis. V=IR
3. Navigating Networks - Topology Theorems:
2.3 The Fundamental Theorem of Network Topology: Understand the
core principles of network topology, including nodes, branches, and loops.
Learn how this theorem relates the number of these elements and provides a
foundation for circuit analysis techniques like Kirchhoff's Laws.
4. Simplifying Circuits - Equivalent Components:
2.5 Resistors in Series: Derive and understand the formula for calculating
the equivalent resistance of multiple resistors connected in series. Learn how
current remains constant and voltages add up in series connections. Req=R1
+R2+...+Rn
2.5 Voltage Division Rule: Master the voltage divider rule to quickly
determine the voltage drop across any resistor in a series circuit. Understand
its derivation and practical applications. Vn=R1+R2+...+RnRnVtotal
2.6 Resistors in Parallel: Derive and understand the formula for calculating
the equivalent conductance (and resistance) of multiple resistors connected
in parallel. Learn how voltage remains constant and currents add up in
parallel connections. Geq=G1+G2+...+Gn⟹Req1=R11+R21+...+Rn1
2.6 Current Division Rule: Master the current divider rule to efficiently
determine the current flowing through any resistor in a parallel circuit.
Understand its derivation and practical applications. In=G1+G2+...+GnGn
Itotal=RnReqItotal
5. Network Transformations - Delta and Wye:
2.7 Delta to Y Conversion: Understand the process and formulas for
transforming a delta (Δ) connected network of resistors into an equivalent
wye (Y) or star configuration. Learn when and why this transformation is
useful for circuit simplification. RA=R12+R23+R31R12R31,RB=R12+R23
+R31R12R23,RC=R12+R23+R31R23R31
2.7 Y to Delta Conversion: Understand the process and formulas for
transforming a wye (Y) or star connected network of resistors into an
, equivalent delta (Δ) configuration. Learn the conditions under which this
transformation simplifies circuit analysis. R12=RA+RB+RCRARB,R23=RB
+RC+RARBRC,R31=RC+RA+RBRCRA
6. Power Delivery at its Peak:
4.5 Maximum Power Transfer Theorem: Understand the conditions under
which a resistive load will receive maximum power from a source with
internal resistance. Learn how to determine the optimal load resistance for
maximum power transfer and calculate the maximum power delivered.
7. Operational Amplifiers - Ideal vs. Reality:
5.1 The Non-Ideal Op-Amp: Explore the limitations of real operational
amplifiers, including input bias current, input offset voltage, and finite open-
loop gain. Understand how these non-ideal characteristics affect circuit
performance. Vout=AOL(V+−V−)+Vos+IB+R+−IB−R−
8. Op-Amp Configurations - Amplification Essentials:
5.3 The Inverting Amplifier: Analyze the inverting amplifier
configuration. Understand its characteristics, derive the gain formula, and
learn how to calculate the output voltage based on the input voltage and
resistor values. Av=VinVout=−RiRf
5.4 The Non-Inverting Amplifier: Analyze the non-inverting amplifier
configuration. Understand its characteristics, derive the gain formula, and
learn how to calculate the output voltage based on the input voltage and
resistor values. Av=VinVout=1+RiRf
5.5 The Summing Amplifier: Explore the summing amplifier configuration
and understand how it can combine multiple input voltages. Derive the gain
formula for each input and learn its applications in signal processing. Vout
=−(Ri1RfVin1+Ri2RfVin2+...)
5.6 The Difference Amplifier: Analyze the difference amplifier
configuration and understand its ability to amplify the difference between
two input voltages while rejecting common-mode signals. Derive the gain
formula and learn its applications in instrumentation. Vout=R1Rf(V2−V1
)if R1=R3 and Rf=R4
5.8 Digital to Analog Conversion - The Binary Weighted Ladder DAC:
Understand the operation of a 4-bit binary weighted ladder Digital-to-
Analog Converter (DAC). Analyze its circuit and learn the formula for
, converting a digital input to an analog output voltage. Vout=−Rf(2Rb3
+4Rb2+8Rb1+16Rb0)Vref
5.8 The Instrumentation Amplifier - Precision Amplification: Explore
the instrumentation amplifier configuration, built using multiple op-amps,
and understand its key advantages: high input impedance, high common-
mode rejection ratio, and adjustable gain. Learn its gain formula and
applications in precision measurement. Av=1+Rgain2R1
9. Energy Storage Elements - Capacitors:
6.1 Charge Storage in Capacitors: Understand how capacitors store
electrical charge. Learn the relationship between charge (Q), capacitance
(C), and voltage (V). Q=CV
6.1 Parallel Plate Capacitor: Derive and understand the formula for the
capacitance of a two-plate parallel capacitor based on its physical
dimensions (plate area and separation distance) and the permittivity of the
dielectric material. C=ϵdA
6.1 Current-Voltage Relationship in Capacitors: Understand the dynamic
relationship between current flowing through a capacitor and the rate of
change of voltage across it. i(t)=Cdtdv(t)
Fundamentals of Electric Circuits - Q&A Elaboration:
1. Definition of Current:
Q: Define electric current. What are its units, and what distinguishes
conventional current from electron flow?
A: Electric current is the rate of flow of electric charge past a point or
region. Its SI unit is the Ampere (A), which is defined as one Coulomb per
second. Conventional current is defined as the flow of positive charge,
moving from a higher potential to a lower potential, while electron flow is
the actual movement of negatively charged electrons, moving from a lower
potential to a higher potential.
2. Total Charge Transferred Between Times:
Q: How do you calculate the total charge transferred through a circuit
element between two specific time instances, given the current as a function
of time?
A: The total charge (ΔQ) transferred between times t1 and t2 is found by
integrating the current i(t) with respect to time over that interval: ΔQ=∫t1t2
Comprehensive Elaboration of Key Concepts &
Formulas
Tired of just memorizing definitions? This meticulously crafted study guide
dives deep into the core principles of electric circuits, providing you with not just
the formulas, but also the underlying concepts, practical implications, and step-
by-step elaborations you need to truly understand and apply them in your exams..
Here's a sneak peek at what you'll find inside:
1. Unpacking the Basics:
1.1 Defining Current: Go beyond the basic definition. Explore the concept
of charge flow, the units of measurement (Amperes), and the difference
between conventional and electron current. Understand its significance in
circuit analysis.
1.1 Total Charge Transferred: Learn how to calculate the total charge that
moves through a circuit element over a specific time interval. Understand
the relationship between current and charge with clear examples. ΔQ=∫t1t2
i(t)dt
1.2 Decoding Voltage: Understand the concept of electric potential
difference, its units (Volts), and its role as the driving force in a circuit.
Differentiate between voltage rise and voltage drop with illustrative
examples.
1.3 Power Demystified: Grasp the definition of electrical power, its units
(Watts), and its significance in terms of energy transfer rate. Learn the
power convention for circuit elements (absorbed vs. supplied). p(t)=v(t)i(t)
1.3 Energy Calculation: Master the calculation of total energy absorbed or
supplied by a circuit element over a given time period. Connect power and
energy concepts with practical applications. W=∫t1t2p(t)dt=∫t1t2v(t)i(t)dt
2. Resistance, Conductance, and Ohm's Law - The Cornerstones:
2.1 Resistance and Resistivity: Explore the relationship between a
material's inherent property (resistivity), its physical dimensions (length and
cross-sectional area), and the resulting resistance. Understand how different
materials affect circuit behavior. R=ρAl
, 2.1 The Inverse - Conductance: Introduce the concept of conductance as
the reciprocal of resistance. Understand its unit (Siemens) and its utility in
analyzing parallel circuits. G=R1=σlA
2.1 Ohm's Law - The Fundamental Relationship: Deeply understand the
linear relationship between voltage, current, and resistance for ohmic
materials. Learn its applications and limitations in circuit analysis. V=IR
3. Navigating Networks - Topology Theorems:
2.3 The Fundamental Theorem of Network Topology: Understand the
core principles of network topology, including nodes, branches, and loops.
Learn how this theorem relates the number of these elements and provides a
foundation for circuit analysis techniques like Kirchhoff's Laws.
4. Simplifying Circuits - Equivalent Components:
2.5 Resistors in Series: Derive and understand the formula for calculating
the equivalent resistance of multiple resistors connected in series. Learn how
current remains constant and voltages add up in series connections. Req=R1
+R2+...+Rn
2.5 Voltage Division Rule: Master the voltage divider rule to quickly
determine the voltage drop across any resistor in a series circuit. Understand
its derivation and practical applications. Vn=R1+R2+...+RnRnVtotal
2.6 Resistors in Parallel: Derive and understand the formula for calculating
the equivalent conductance (and resistance) of multiple resistors connected
in parallel. Learn how voltage remains constant and currents add up in
parallel connections. Geq=G1+G2+...+Gn⟹Req1=R11+R21+...+Rn1
2.6 Current Division Rule: Master the current divider rule to efficiently
determine the current flowing through any resistor in a parallel circuit.
Understand its derivation and practical applications. In=G1+G2+...+GnGn
Itotal=RnReqItotal
5. Network Transformations - Delta and Wye:
2.7 Delta to Y Conversion: Understand the process and formulas for
transforming a delta (Δ) connected network of resistors into an equivalent
wye (Y) or star configuration. Learn when and why this transformation is
useful for circuit simplification. RA=R12+R23+R31R12R31,RB=R12+R23
+R31R12R23,RC=R12+R23+R31R23R31
2.7 Y to Delta Conversion: Understand the process and formulas for
transforming a wye (Y) or star connected network of resistors into an
, equivalent delta (Δ) configuration. Learn the conditions under which this
transformation simplifies circuit analysis. R12=RA+RB+RCRARB,R23=RB
+RC+RARBRC,R31=RC+RA+RBRCRA
6. Power Delivery at its Peak:
4.5 Maximum Power Transfer Theorem: Understand the conditions under
which a resistive load will receive maximum power from a source with
internal resistance. Learn how to determine the optimal load resistance for
maximum power transfer and calculate the maximum power delivered.
7. Operational Amplifiers - Ideal vs. Reality:
5.1 The Non-Ideal Op-Amp: Explore the limitations of real operational
amplifiers, including input bias current, input offset voltage, and finite open-
loop gain. Understand how these non-ideal characteristics affect circuit
performance. Vout=AOL(V+−V−)+Vos+IB+R+−IB−R−
8. Op-Amp Configurations - Amplification Essentials:
5.3 The Inverting Amplifier: Analyze the inverting amplifier
configuration. Understand its characteristics, derive the gain formula, and
learn how to calculate the output voltage based on the input voltage and
resistor values. Av=VinVout=−RiRf
5.4 The Non-Inverting Amplifier: Analyze the non-inverting amplifier
configuration. Understand its characteristics, derive the gain formula, and
learn how to calculate the output voltage based on the input voltage and
resistor values. Av=VinVout=1+RiRf
5.5 The Summing Amplifier: Explore the summing amplifier configuration
and understand how it can combine multiple input voltages. Derive the gain
formula for each input and learn its applications in signal processing. Vout
=−(Ri1RfVin1+Ri2RfVin2+...)
5.6 The Difference Amplifier: Analyze the difference amplifier
configuration and understand its ability to amplify the difference between
two input voltages while rejecting common-mode signals. Derive the gain
formula and learn its applications in instrumentation. Vout=R1Rf(V2−V1
)if R1=R3 and Rf=R4
5.8 Digital to Analog Conversion - The Binary Weighted Ladder DAC:
Understand the operation of a 4-bit binary weighted ladder Digital-to-
Analog Converter (DAC). Analyze its circuit and learn the formula for
, converting a digital input to an analog output voltage. Vout=−Rf(2Rb3
+4Rb2+8Rb1+16Rb0)Vref
5.8 The Instrumentation Amplifier - Precision Amplification: Explore
the instrumentation amplifier configuration, built using multiple op-amps,
and understand its key advantages: high input impedance, high common-
mode rejection ratio, and adjustable gain. Learn its gain formula and
applications in precision measurement. Av=1+Rgain2R1
9. Energy Storage Elements - Capacitors:
6.1 Charge Storage in Capacitors: Understand how capacitors store
electrical charge. Learn the relationship between charge (Q), capacitance
(C), and voltage (V). Q=CV
6.1 Parallel Plate Capacitor: Derive and understand the formula for the
capacitance of a two-plate parallel capacitor based on its physical
dimensions (plate area and separation distance) and the permittivity of the
dielectric material. C=ϵdA
6.1 Current-Voltage Relationship in Capacitors: Understand the dynamic
relationship between current flowing through a capacitor and the rate of
change of voltage across it. i(t)=Cdtdv(t)
Fundamentals of Electric Circuits - Q&A Elaboration:
1. Definition of Current:
Q: Define electric current. What are its units, and what distinguishes
conventional current from electron flow?
A: Electric current is the rate of flow of electric charge past a point or
region. Its SI unit is the Ampere (A), which is defined as one Coulomb per
second. Conventional current is defined as the flow of positive charge,
moving from a higher potential to a lower potential, while electron flow is
the actual movement of negatively charged electrons, moving from a lower
potential to a higher potential.
2. Total Charge Transferred Between Times:
Q: How do you calculate the total charge transferred through a circuit
element between two specific time instances, given the current as a function
of time?
A: The total charge (ΔQ) transferred between times t1 and t2 is found by
integrating the current i(t) with respect to time over that interval: ΔQ=∫t1t2
