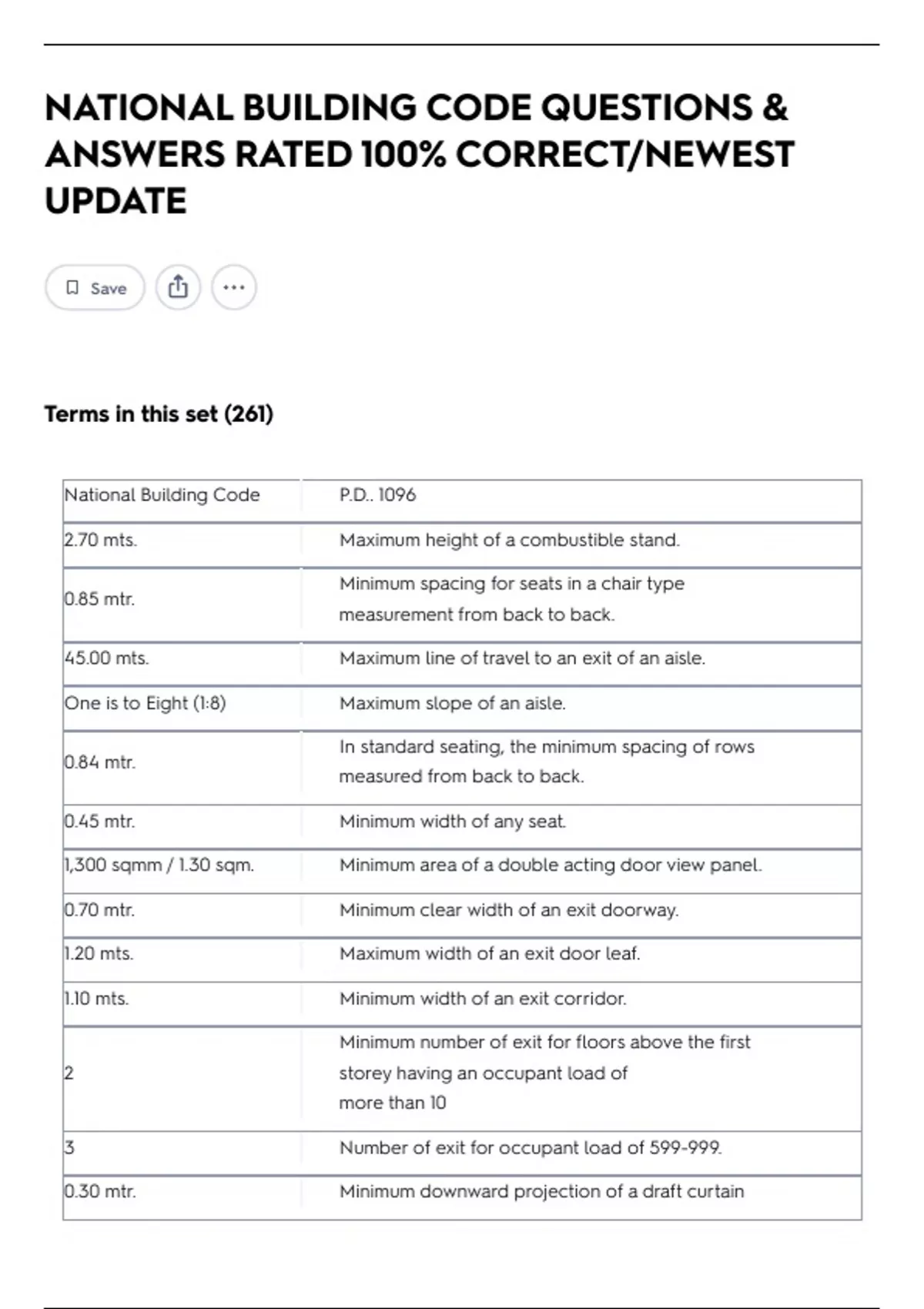

NATIONAL BUILDING CODE QUESTIONS &
ANSWERS RATED 100% CORRECT/NEWEST
UPDATE
Save
Terms in this set (261)
National Building Code P.D.. 1096
2.70 mts. Maximum height of a combustible stand.
Minimum spacing for seats in a chair type
0.85 mtr.
measurement from back to back.
45.00 mts. Maximum line of travel to an exit of an aisle.
One is to Eight (1:8) Maximum slope of an aisle.
In standard seating, the minimum spacing of rows
0.84 mtr.
measured from back to back.
0.45 mtr. Minimum width of any seat.
1,300 sqmm / 1.30 sqm. Minimum area of a double acting door view panel.
0.70 mtr. Minimum clear width of an exit doorway.
1.20 mts. Maximum width of an exit door leaf.
1.10 mts. Minimum width of an exit corridor.
Minimum number of exit for floors above the first
2 storey having an occupant load of
more than 10
3 Number of exit for occupant load of 599-999.
0.30 mtr. Minimum downward projection of a draft curtain
, Maximum floor area for an attic made of
250.00 sqm
combustible materials.
Maximum center to center spacing of a draft curtain
1.80 mts.
sprinkler.
Maximum floor area for an attic made of
750.00 sqm.
incombustible materials.
Ga. 18 Standard gauge for metal hoods in barbeques.
Minimum height of a Siamese connection above
300 mm
grade.
Standard maximum distance of a standpipe from an
300 mm
opening in a stairway.
200 mm Minimum wall thickness of a fireplace.
2 Minimum number of exit for a projection room.
Minimum extended portion of a chimney above the
600 mm
roof.
Minimum air space between walls of a masonry
2" / 50 mm
chimney above the roof.
12.5 mm Minimum thickness of glass used for floors.
400 mm / 0.40 mtr. Maximum rise of one row of seat to the next.
Minimum number of exit for stands within a building
3
serving an occupant load of 300.
Minimum height of a guard rail located in front of
0.90 mtr
the grandstand.
0.28 mtr Minimum width of a run in a stand stair.
Minimum spacing for seats with backrests measured
0.75 mtr.
from back to back.
Minimum spacing for seats without backrests
0.60 mtr.
measured from back to back.
1.70 mts. Minimum width of an exit door in an aisle.
10.70 lux Minimum intensity of lights for exits.
1.10 mts. Minimum width of side aisles.
