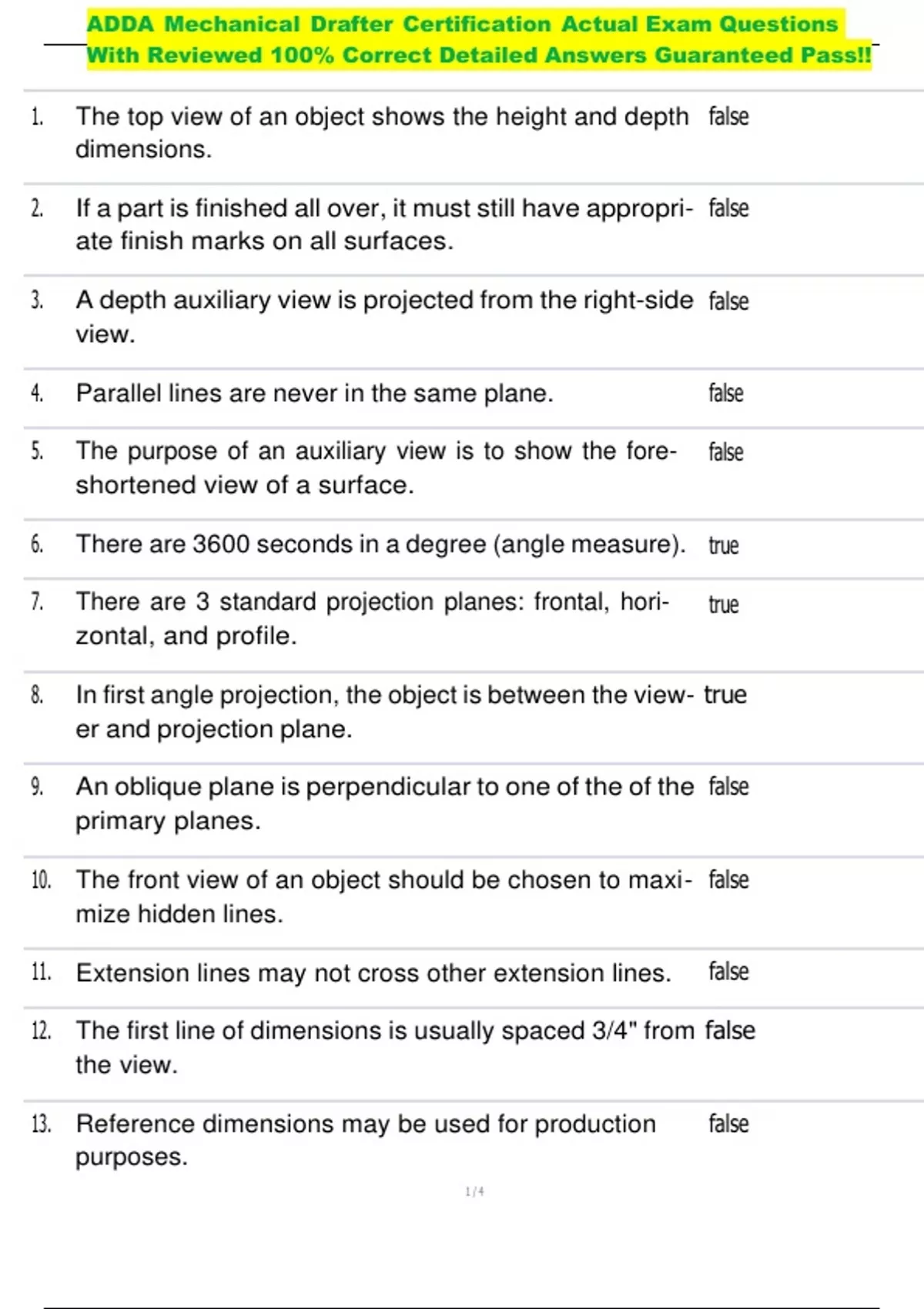

ADDA Mechanical Drafter Certification Actual Exam Questions With Reviewed 100% Correct Detailed Answers Guaranteed Pass!! 1. The top view of an object shows the height and depth dimensions. 2. If a part is finished all over, it must still have appropri- ate finish marks on all surfaces. 3. A depth auxiliary view is projected from the right-side view. 4. Parallel lines are never in the same plane. 5. The purpose of an auxiliary view is to show the fore- shortened view of a surface. 6. There are 3600 seconds in a degree (angle measure). 7. There are 3 standard projection planes: frontal, hori- zontal, and profile. false false false false false true true 8. In first angle projection, the object is between the view- true er and projection plane. 9. 10. 11. An oblique plane is perpendicular to one of the of the primary planes. The front view of an object should be chosen to maxi- mize hidden lines. Extension lines may not cross other extension lines. false false false 12. The first line of dimensions is usually spaced 3/4" from false the view. 13. Reference dimensions may be used for production purposes. false 18. A trimetric pictorial has 3 different scales and axes. In an isometric drawing, measurements are taken from the isometric axis at full scale.
