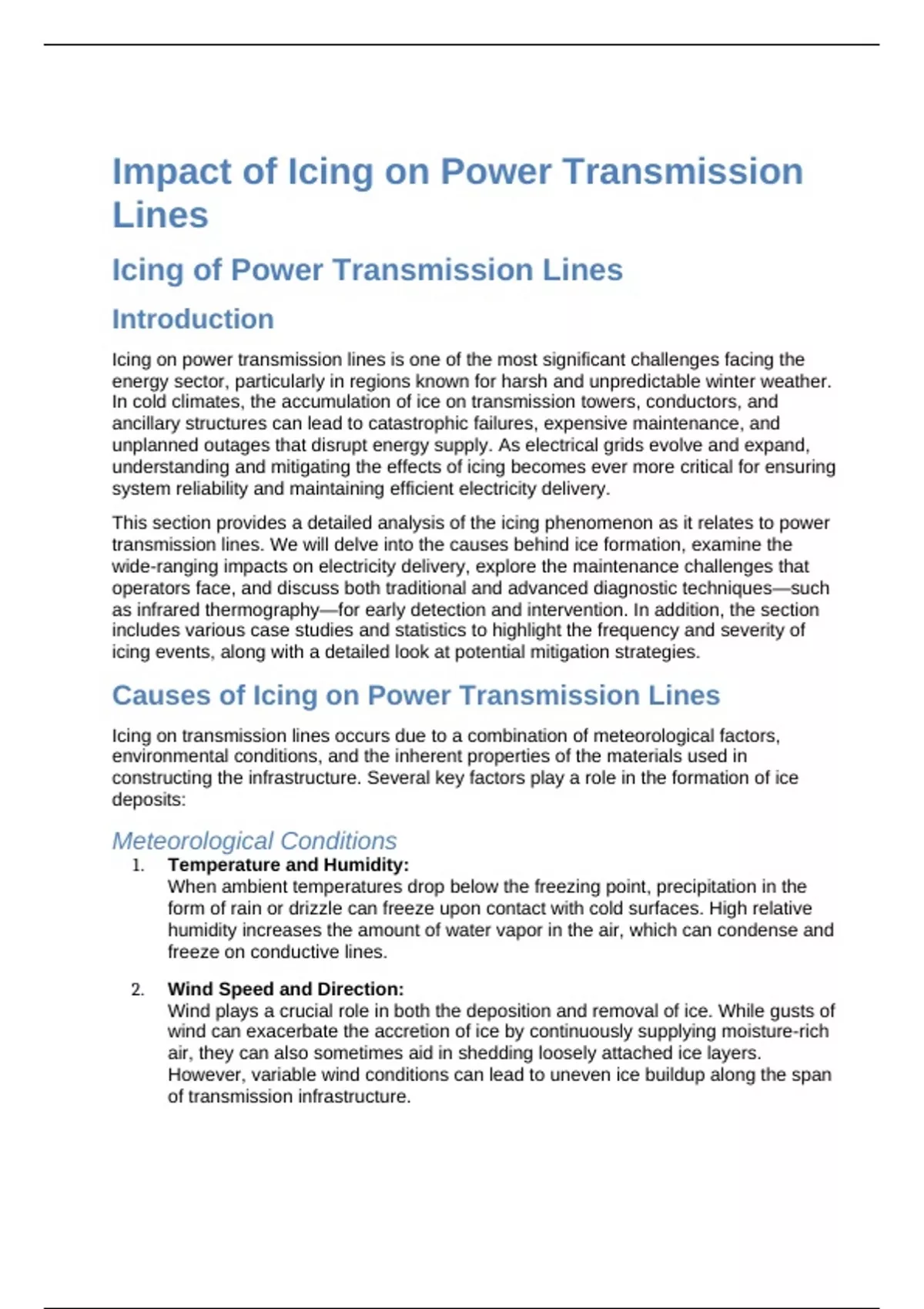

Impact of Icing on Power Transmission
Lines
Icing of Power Transmission Lines
Introduction
Icing on power transmission lines is one of the most significant challenges facing the
energy sector, particularly in regions known for harsh and unpredictable winter weather.
In cold climates, the accumulation of ice on transmission towers, conductors, and
ancillary structures can lead to catastrophic failures, expensive maintenance, and
unplanned outages that disrupt energy supply. As electrical grids evolve and expand,
understanding and mitigating the effects of icing becomes ever more critical for ensuring
system reliability and maintaining efficient electricity delivery.
This section provides a detailed analysis of the icing phenomenon as it relates to power
transmission lines. We will delve into the causes behind ice formation, examine the
wide-ranging impacts on electricity delivery, explore the maintenance challenges that
operators face, and discuss both traditional and advanced diagnostic techniques—such
as infrared thermography—for early detection and intervention. In addition, the section
includes various case studies and statistics to highlight the frequency and severity of
icing events, along with a detailed look at potential mitigation strategies.
Causes of Icing on Power Transmission Lines
Icing on transmission lines occurs due to a combination of meteorological factors,
environmental conditions, and the inherent properties of the materials used in
constructing the infrastructure. Several key factors play a role in the formation of ice
deposits:
Meteorological Conditions
1. Temperature and Humidity:
When ambient temperatures drop below the freezing point, precipitation in the
form of rain or drizzle can freeze upon contact with cold surfaces. High relative
humidity increases the amount of water vapor in the air, which can condense and
freeze on conductive lines.
2. Wind Speed and Direction:
Wind plays a crucial role in both the deposition and removal of ice. While gusts of
wind can exacerbate the accretion of ice by continuously supplying moisture-rich
air, they can also sometimes aid in shedding loosely attached ice layers.
However, variable wind conditions can lead to uneven ice buildup along the span
of transmission infrastructure.
, 3. Cloud Characteristics and Precipitation Patterns:
The type of clouds in the atmosphere, such as stratiform clouds, can result in
prolonged periods of wet snow or freezing rain. A steady drizzle in freezing
conditions may deposit a thin but heavy layer of ice that adds significant
mechanical stress to the lines.
Environmental and Structural Factors
1. Conductor Material and Coating:
Most transmission lines are constructed using materials like aluminum and steel,
which have differing thermal conductivities and surface properties. Some
conductors are coated with materials to reduce ice adhesion; however, these
coatings can wear off over time due to environmental exposure.
2. Line Geometry and Exposure:
The design and orientation of transmission lines also affect ice accumulation.
Conductor sag, span length, and the angle of the wires relative to prevailing
winds all contribute to non-uniform ice distribution. Components like insulators
and dampers often experience different icing intensities due to their distinct
shapes and locations.
3. Topography and Surrounding Terrain:
Power lines running through mountainous terrains or open plains may experience
significantly different icing patterns. Complex terrain can create microclimates
where colder air pockets and wind eddies lead to localized ice buildup.
Ice Accretion Dynamics
The process of ice accretion on transmission lines can be understood through two
primary mechanisms:
• Rime Ice Formation:
Rime ice occurs when supercooled droplets in a fog or mist rapidly freeze upon
contact with a surface that is already below freezing. This process forms a rough,
milky, and brittle ice coating that can accumulate quickly during sudden
temperature drops.
• Glaze (Clear) Ice Formation:
Glaze ice forms when larger supercooled water droplets impinge on a surface
and slowly freeze, creating a smooth, transparent, or translucent coating. This
type of icing is particularly dangerous due to its high density and the weight it
imposes on power lines.
A clear comprehension of these mechanisms enables engineers and meteorologists to
predict and model the severity of icing events, thereby enhancing preparedness
measures.
,Impacts on Electricity Delivery
The icing of power transmission lines has significant and multifaceted impacts on
electricity delivery. From direct mechanical failures to cascading failures in power grid
operations, the consequences of icing events extend well beyond the isolated physical
damage to individual components.
Mechanical Loads and Structural Stress
One of the primary concerns with ice accumulation is the mechanical load imposed on
transmission lines. As ice builds up along the conductors, the additional weight leads to
increased tension within the cables. This can result in several issues:
• Conductor Sagging:
Excessive ice load often causes conductors to sag, which can lead to electrical
arcing if the lines come too close to each other. This phenomenon is particularly
common in regions experiencing sustained icing conditions during winter months.
• Tower and Support Structure Stress:
The additional downward force from the extra weight of ice influences the stress
distribution along transmission towers. The stress concentrations may lead to the
deformation or outright failure of structural elements. In severe cases, this can
trigger domino-like failures where one compromised tower leads to structural
overload on adjacent supports.
• Mechanical Breakage:
When the load exceeds the design limits of conductors or support structures,
metal fatigue or fracture can occur. Such breakage not only disrupts the physical
line but also poses significant safety hazards during severe weather events.
Electrical Performance Degradation
In addition to mechanical challenges, ice accumulation can negatively affect the
electrical performance of transmission systems:
• Increased Electrical Resistance:
Ice can create a layer of unwanted insulation on the surface of conductors. This
additional insulation increases the surface resistance, which leads to higher
energy losses. Furthermore, the ice layer can interfere with partial discharge
processes, affecting the overall efficiency of the transmission line.
• Partial and Total Outages:
When conductors sag or break, power interruptions occur, potentially leading to
partial outages in localized areas or full-scale blackouts. The severity of such
outages is magnified in regions where alternate routes for electricity delivery are
sparse or non-existent.
• Dynamic Line Rating Reductions:
Under normal conditions, the line rating—the maximum current that can be safely
, transmitted—is determined by ambient temperature and wind conditions. Icing
events require derating of these lines because ice formation alters the thermal
balance, thereby reducing the overall power transfer capability of the grid.
Economic and Social Impacts
The consequences of icing extend well into economic and social realms. Even marginal
system interruptions can have far-reaching effects on communities:
• Cost of Downtime:
Power failures due to icing can result in significant economic losses. Interruptions
impact businesses, industries, and even residential consumers. The costs
associated with downtime, loss of productivity, and emergency repair measures
can be substantial.
• Safety Risks:
Icing conditions present hazardous conditions not only for maintenance crews
working to de-ice or repair lines but also for the public. Downed lines or failing
transmission towers pose risks of electrocution and other accidents.
• Insurance and Liability Issues:
As icing events become more frequent and severe due to climate variability,
insurers are re-evaluating risk models. Increased insurance premiums and
liability claims further underscore the importance of timely, efficient interventions.
Impact on Grid Stability and Reliability
The stability of the entire electrical grid is liable to be compromised during icing events.
When one portion of the grid experiences significant sagging or failure, the load is often
redistributed to other parts of the network. This redistribution can lead to an overload in
sections that are not designed to handle the additional strain, further triggering a
cascade of failures. This cascading effect is one of the main reasons why grid operators
invest significantly in predictive maintenance and real-time diagnostic systems.
As icing continues to be a threat due to climatic variations, it becomes imperative for
grid operators to not only prepare for immediate short-term events but also undertake
long-term strategies to enhance overall system robustness.
Maintenance Challenges in Icing Conditions
The maintenance of power transmission infrastructure under icing conditions poses
unique challenges. Traditional maintenance approaches are often inadequate in the
face of rapid and severe ice formation, creating a demanding environment for field
technicians and operators.
Scheduled vs. Reactive Maintenance
Maintenance strategies typically fall into two categories:
