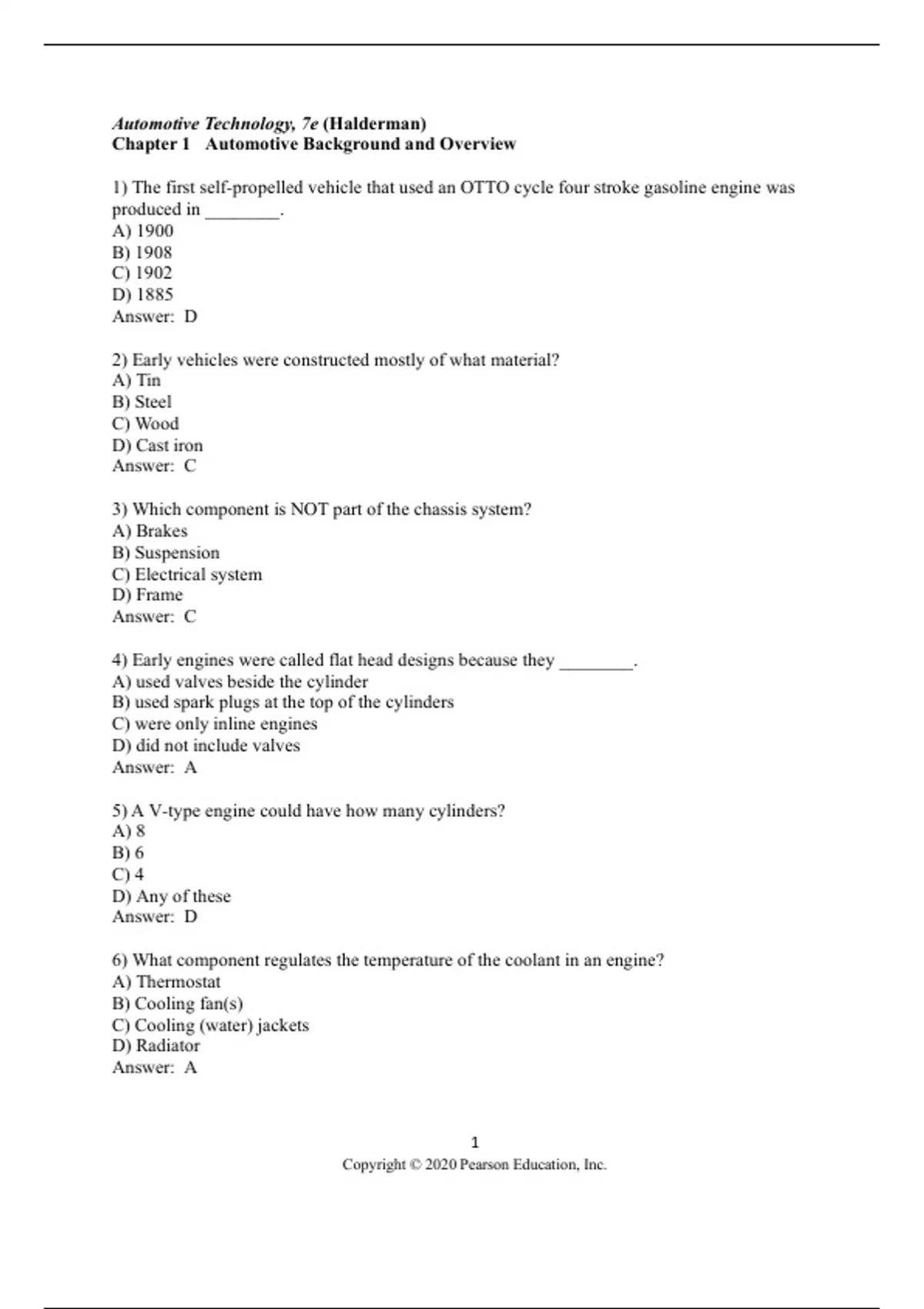

Automotive Technology, 7e (Halderman)
Chapter 1 Automotive Background and Overview
1) The first self-propelled vehicle that used an OTTO cycle four stroke gasoline engine was
produced in ________.
A) 1900
B) 1908
C) 1902
D) 1885
Answer: D
@
2) Early vehicles were constructed mostly of what material?
A) Tin
B) Steel
C) Wood
TE
D) Cast iron
Answer: C
3) Which component is NOT part of the chassis system?
A) Brakes
ST
B) Suspension
C) Electrical system
D) Frame
Answer: C
BA
4) Early engines were called flat head designs because they ________.
A) used valves beside the cylinder
B) used spark plugs at the top of the cylinders
C) were only inline engines
D) did not include valves
N
Answer: A
5) A V-type engine could have how many cylinders?
KM
A) 8
B) 6
C) 4
D) Any of these
Answer: D
AF
6) What component regulates the temperature of the coolant in an engine?
A) Thermostat
B) Cooling fan(s)
C) Cooling (water) jackets
D) Radiator
IA
Answer: A
@
1
Copyright © 2020 Pearson Education, Inc.
, 7) A malfunction indicator light (MIL) on the dash may be labeled ________.
A) MAL
B) check engine
C) MIL
D) service vehicle soon
Answer: B
8) To retrieve stored diagnostic trouble codes, a technician needs a ________.
A) desktop computer
B) wireless connection to an electronic tester
C) scan tool
@
D) paper clip
Answer: C
9) A four-wheel drive vehicle often uses a ________ to transmit torque to all four wheels.
TE
A) transaxle
B) transfer case
C) drive shaft
D) U-joint
Answer: B
ST
10) Automotive service systems are generally separated into how many content areas?
A) 4
B) 6
C) 8
BA
D) 10
Answer: C
11) In 1900, which propulsion method was most widely used in passenger vehicles?
A) Coal
N
B) Diesel
C) Steam
D) Gasoline
KM
Answer: C
12) Which company produced the first large scale affordable passenger vehicle?
A) Oldsmobile
B) Bentley
C) Mercedes
AF
D) Ford
Answer: A
IA
@
2
Copyright © 2020 Pearson Education, Inc.
, 13) Which U.S. manufacturer produced the first vehicle with four-wheel antilock brakes?
A) Chrysler
B) American Motors
C) Lincoln
D) Chevrolet
Answer: C
14) Technician A says that drum brakes work with brake shoes. Technician B says that drum
brakes work with brake pads. Which technician is correct?
A) Technician A only
B) Technician B only
@
C) Both technicians
D) Neither technician
Answer: A
TE
15) Which pillar is nearest the front of the vehicle?
A) A
B) B
C) C
D) D
ST
Answer: A
16) Which type vehicle is most likely to have a D pillar?
A) Pickup truck
B) Station wagon
BA
C) Sports coupe
D) None of these
Answer: B
17) Technician A says that full frame vehicles combine the body of the vehicle with the frame
N
structure.
Technician B says that unibody vehicles combine the body of the vehicle with the frame
structure. Which technician is correct?
KM
A) Technician A only
B) Technician B only
C) Both technicians
D) Neither technician
Answer: B
AF
18) Technician A says that gasoline engines are internal combustion engines. Technician B says
that diesel engines are internal combustion engines. Which technician is correct?
A) Technician A only
B) Technician B only
C) Both technicians
IA
D) Neither technician
Answer: C
@
3
Copyright © 2020 Pearson Education, Inc.
, 19) The Monroney label includes all of these EXCEPT ________.
A) optional equipment
B) standard equipment
C) MSRP
D) All of these are present on the Monroney label.
Answer: D
20) Which device circulates coolant to the water jackets and radiator?
A) Vacuum solenoid
B) Water pump
C) Heater valve
@
D) Thermostat
Answer: B
21) In what year was the self-starter introduced?
TE
A) 1902
B) 1912
C) 1900
D) 1908
Answer: B
ST
22) In what year did ASE create service technician certification tests?
A) 1996
B) 1972
C) 1953
BA
D) 1900
Answer: B
23) Which ASE area includes wheel alignment?
A) Steering and suspension
N
B) Brakes
C) Body
D) Chassis
KM
Answer: A
24) Four wheel drive systems are covered under which ASE content area?
A) Automatic transmissions
B) Manual drivetrains
C) Suspension systems
AF
D) None of these
Answer: B
IA
@
4
Copyright © 2020 Pearson Education, Inc.
, 25) In what year was the automatic transmission introduced in passenger vehicles?
A) 1920
B) 1952
C) 1940
D) 1963
Answer: C
26) Four wheel hydraulic brake systems were introduced in ________.
A) 1900
B) 1922
C) 1893
@
D) 1940
Answer: B
27) Electronic systems can monitor or control ________.
TE
A) electronic suspension
B) tire pressure
C) Both A and B
D) Neither A nor B
Answer: C
ST
28) Which vehicles use a transfer case?
A) Rear-wheel drive
B) Four-wheel drive
C) Front-wheel drive
BA
D) None of these
Answer: B
29) Which system prevents gasoline vapors from venting into the atmosphere?
A) PCV
N
B) HO2S
C) EVAP
D) EGR
KM
Answer: C
AF
IA
@
5
Copyright © 2020 Pearson Education, Inc.
Chapter 1 Automotive Background and Overview
1) The first self-propelled vehicle that used an OTTO cycle four stroke gasoline engine was
produced in ________.
A) 1900
B) 1908
C) 1902
D) 1885
Answer: D
@
2) Early vehicles were constructed mostly of what material?
A) Tin
B) Steel
C) Wood
TE
D) Cast iron
Answer: C
3) Which component is NOT part of the chassis system?
A) Brakes
ST
B) Suspension
C) Electrical system
D) Frame
Answer: C
BA
4) Early engines were called flat head designs because they ________.
A) used valves beside the cylinder
B) used spark plugs at the top of the cylinders
C) were only inline engines
D) did not include valves
N
Answer: A
5) A V-type engine could have how many cylinders?
KM
A) 8
B) 6
C) 4
D) Any of these
Answer: D
AF
6) What component regulates the temperature of the coolant in an engine?
A) Thermostat
B) Cooling fan(s)
C) Cooling (water) jackets
D) Radiator
IA
Answer: A
@
1
Copyright © 2020 Pearson Education, Inc.
, 7) A malfunction indicator light (MIL) on the dash may be labeled ________.
A) MAL
B) check engine
C) MIL
D) service vehicle soon
Answer: B
8) To retrieve stored diagnostic trouble codes, a technician needs a ________.
A) desktop computer
B) wireless connection to an electronic tester
C) scan tool
@
D) paper clip
Answer: C
9) A four-wheel drive vehicle often uses a ________ to transmit torque to all four wheels.
TE
A) transaxle
B) transfer case
C) drive shaft
D) U-joint
Answer: B
ST
10) Automotive service systems are generally separated into how many content areas?
A) 4
B) 6
C) 8
BA
D) 10
Answer: C
11) In 1900, which propulsion method was most widely used in passenger vehicles?
A) Coal
N
B) Diesel
C) Steam
D) Gasoline
KM
Answer: C
12) Which company produced the first large scale affordable passenger vehicle?
A) Oldsmobile
B) Bentley
C) Mercedes
AF
D) Ford
Answer: A
IA
@
2
Copyright © 2020 Pearson Education, Inc.
, 13) Which U.S. manufacturer produced the first vehicle with four-wheel antilock brakes?
A) Chrysler
B) American Motors
C) Lincoln
D) Chevrolet
Answer: C
14) Technician A says that drum brakes work with brake shoes. Technician B says that drum
brakes work with brake pads. Which technician is correct?
A) Technician A only
B) Technician B only
@
C) Both technicians
D) Neither technician
Answer: A
TE
15) Which pillar is nearest the front of the vehicle?
A) A
B) B
C) C
D) D
ST
Answer: A
16) Which type vehicle is most likely to have a D pillar?
A) Pickup truck
B) Station wagon
BA
C) Sports coupe
D) None of these
Answer: B
17) Technician A says that full frame vehicles combine the body of the vehicle with the frame
N
structure.
Technician B says that unibody vehicles combine the body of the vehicle with the frame
structure. Which technician is correct?
KM
A) Technician A only
B) Technician B only
C) Both technicians
D) Neither technician
Answer: B
AF
18) Technician A says that gasoline engines are internal combustion engines. Technician B says
that diesel engines are internal combustion engines. Which technician is correct?
A) Technician A only
B) Technician B only
C) Both technicians
IA
D) Neither technician
Answer: C
@
3
Copyright © 2020 Pearson Education, Inc.
, 19) The Monroney label includes all of these EXCEPT ________.
A) optional equipment
B) standard equipment
C) MSRP
D) All of these are present on the Monroney label.
Answer: D
20) Which device circulates coolant to the water jackets and radiator?
A) Vacuum solenoid
B) Water pump
C) Heater valve
@
D) Thermostat
Answer: B
21) In what year was the self-starter introduced?
TE
A) 1902
B) 1912
C) 1900
D) 1908
Answer: B
ST
22) In what year did ASE create service technician certification tests?
A) 1996
B) 1972
C) 1953
BA
D) 1900
Answer: B
23) Which ASE area includes wheel alignment?
A) Steering and suspension
N
B) Brakes
C) Body
D) Chassis
KM
Answer: A
24) Four wheel drive systems are covered under which ASE content area?
A) Automatic transmissions
B) Manual drivetrains
C) Suspension systems
AF
D) None of these
Answer: B
IA
@
4
Copyright © 2020 Pearson Education, Inc.
, 25) In what year was the automatic transmission introduced in passenger vehicles?
A) 1920
B) 1952
C) 1940
D) 1963
Answer: C
26) Four wheel hydraulic brake systems were introduced in ________.
A) 1900
B) 1922
C) 1893
@
D) 1940
Answer: B
27) Electronic systems can monitor or control ________.
TE
A) electronic suspension
B) tire pressure
C) Both A and B
D) Neither A nor B
Answer: C
ST
28) Which vehicles use a transfer case?
A) Rear-wheel drive
B) Four-wheel drive
C) Front-wheel drive
BA
D) None of these
Answer: B
29) Which system prevents gasoline vapors from venting into the atmosphere?
A) PCV
N
B) HO2S
C) EVAP
D) EGR
KM
Answer: C
AF
IA
@
5
Copyright © 2020 Pearson Education, Inc.
