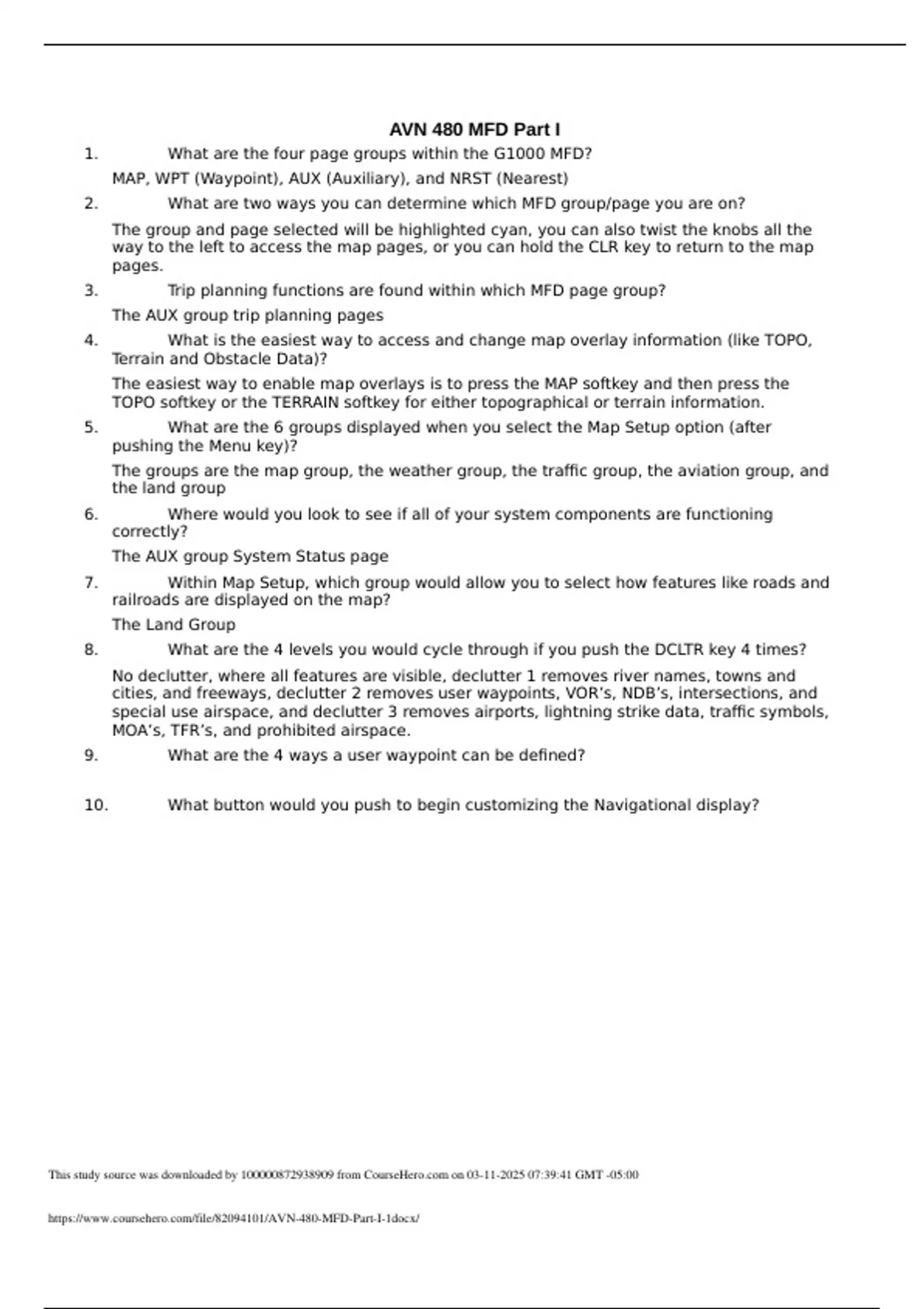

AVN 480 MFD Part I
1. What are the four page groups within the G1000 MFD?
MAP, WPT (Waypoint), AUX (Auxiliary), and NRST (Nearest)
2. What are two ways you can determine which MFD group/page you are on?
The group and page selected will be highlighted cyan, you can also twist the knobs all the
way to the left to access the map pages, or you can hold the CLR key to return to the map
pages.
3. Trip planning functions are found within which MFD page group?
The AUX group trip planning pages
4. What is the easiest way to access and change map overlay information (like TOPO,
Terrain and Obstacle Data)?
The easiest way to enable map overlays is to press the MAP softkey and then press the
TOPO softkey or the TERRAIN softkey for either topographical or terrain information.
5. What are the 6 groups displayed when you select the Map Setup option (after
pushing the Menu key)?
The groups are the map group, the weather group, the traffic group, the aviation group, and
the land group
6. Where would you look to see if all of your system components are functioning
correctly?
The AUX group System Status page
7. Within Map Setup, which group would allow you to select how features like roads and
railroads are displayed on the map?
The Land Group
8. What are the 4 levels you would cycle through if you push the DCLTR key 4 times?
No declutter, where all features are visible, declutter 1 removes river names, towns and
cities, and freeways, declutter 2 removes user waypoints, VOR’s, NDB’s, intersections, and
special use airspace, and declutter 3 removes airports, lightning strike data, traffic symbols,
MOA’s, TFR’s, and prohibited airspace.
9. What are the 4 ways a user waypoint can be defined?
10. What button would you push to begin customizing the Navigational display?
