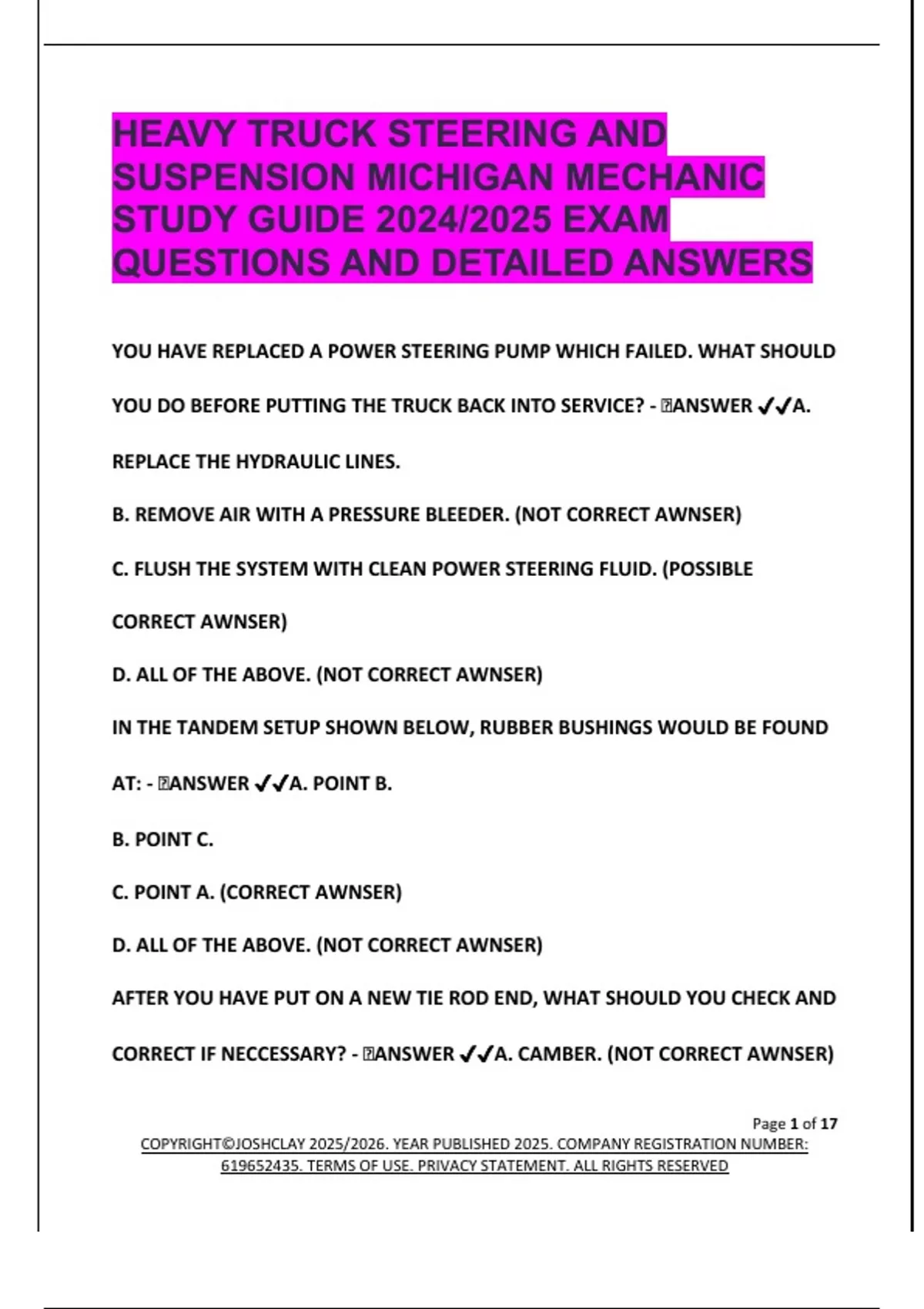

HEAVY TRUCK STEERING AND
SUSPENSION MICHIGAN MECHANIC
STUDY GUIDE 2024/2025 EXAM
QUESTIONS AND DETAILED ANSWERS
YOU HAVE REPLACED A POWER STEERING PUMP WHICH FAILED. WHAT SHOULD
YOU DO BEFORE PUTTING THE TRUCK BACK INTO SERVICE? - 🧠ANSWER ✔✔A.
REPLACE THE HYDRAULIC LINES.
B. REMOVE AIR WITH A PRESSURE BLEEDER. (NOT CORRECT AWNSER)
C. FLUSH THE SYSTEM WITH CLEAN POWER STEERING FLUID. (POSSIBLE
CORRECT AWNSER)
D. ALL OF THE ABOVE. (NOT CORRECT AWNSER)
IN THE TANDEM SETUP SHOWN BELOW, RUBBER BUSHINGS WOULD BE FOUND
AT: - 🧠ANSWER ✔✔A. POINT B.
B. POINT C.
C. POINT A. (CORRECT AWNSER)
D. ALL OF THE ABOVE. (NOT CORRECT AWNSER)
AFTER YOU HAVE PUT ON A NEW TIE ROD END, WHAT SHOULD YOU CHECK AND
CORRECT IF NECCESSARY? - 🧠ANSWER ✔✔A. CAMBER. (NOT CORRECT AWNSER)
Page 1 of 17
COPYRIGHT©JOSHCLAY 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER:
619652435. TERMS OF USE. PRIVACY STATEMENT. ALL RIGHTS RESERVED
,B. WHEEL TURN ANGLE.
C. TOE SETTING. (CORRECT AWNSER)
D. CASTER.
TO REMOVE KING PIN DRAW KEYS FROM THE AXLE BEAMS, YOU SHOULD: -
🧠ANSWER ✔✔A. DRIVE THEM OUT FROM THE SMALL END WITH A SOFT DRIFT.
(POSSIBLE CORRECT AWNSER)
B. HEAT THE BEAM AND TAP THEM OUT. (NOT CORRECT AWNSER)
C. USE A SHOCK PULLER THREADED INTO THE LARGE END OF THE KEYS.
D. FIRST DRILL OUT THE MIDDLE OF THE KEYS TO WEAKEN THEM, THEN DRIFT
THEM OUT. (NOT CORRECT AWNSER)
WHICH OF THESE WILL CAUSE RAPID OR UNEVEN TIRE WEAR IF SET
INCORRECTLY? - 🧠ANSWER ✔✔A. STEARING GEAR PRELOAD.
B. CASTER.
C. CAMBER. (CORRECT AWNSER)
D. ALL OF THE ABOVE. (NOT CORRECT AWNSER)
THE POSITION OF THE FRONT TIRES IN THE DRAWING BELOW INDICATES TOO
MUCH: - 🧠ANSWER ✔✔A. TOE IN. (NOT CORRECT AWNSER)
B. POSITIVE CASTER. (NOT CORRECT AWNSER)
C. NEGATIVE CAMBER.
Page 2 of 17
COPYRIGHT©JOSHCLAY 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER:
619652435. TERMS OF USE. PRIVACY STATEMENT. ALL RIGHTS RESERVED
, D. POSITIVE CAMBER. (CORRECT AWNSER)
IN REFERENCE TO THE BELOW ILLUSTRATION, WHICH STATEMENT IS CORRECT? -
🧠ANSWER ✔✔A. THE STEERING ARM IS LOCATED AT POINT Z.
B. THE PITMAN ARM IS LOCATED AT POINT X. (NOT CORRECT AWNSER)
C. THE DRAG LINK IS LOCATED AT POINT Y. (CORRECT AWNSER)
D. NONE OF THE ABOVE.
THE RIGHT FRONT TIRE ON A SOLID-AXLE TRUCK HAS INSIDE TIRE TREAD WEAR.
THIS COULD BE CAUSE BY: - 🧠ANSWER ✔✔A. POSITIVE CASTER.
B. NEGATIVE CAMBER. (CORRECT AWNSER)
C. NEGATIVE CASTER. (NOT CORRECT AWNSER)
D. POSITIVE CAMBER. (NOT CORRECT AWNSER)
WHAT PART IN THE BELOW ILLUSTRATION SOMETIMES REQUIRES REAMING
WHEN INSTALLING NEW KING PINS? - 🧠ANSWER ✔✔A. #4.
B. #1.
C. #2. (NOT CORRECT AWNSER)
D. #3. (NOT CORRECT AWNSER)
ADJUSTABLE TRAILER AXLES ARE ALLIGNED BY: - 🧠ANSWER ✔✔A. ADJUSTBLE
RADIUS RODS.
Page 3 of 17
COPYRIGHT©JOSHCLAY 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER:
619652435. TERMS OF USE. PRIVACY STATEMENT. ALL RIGHTS RESERVED
