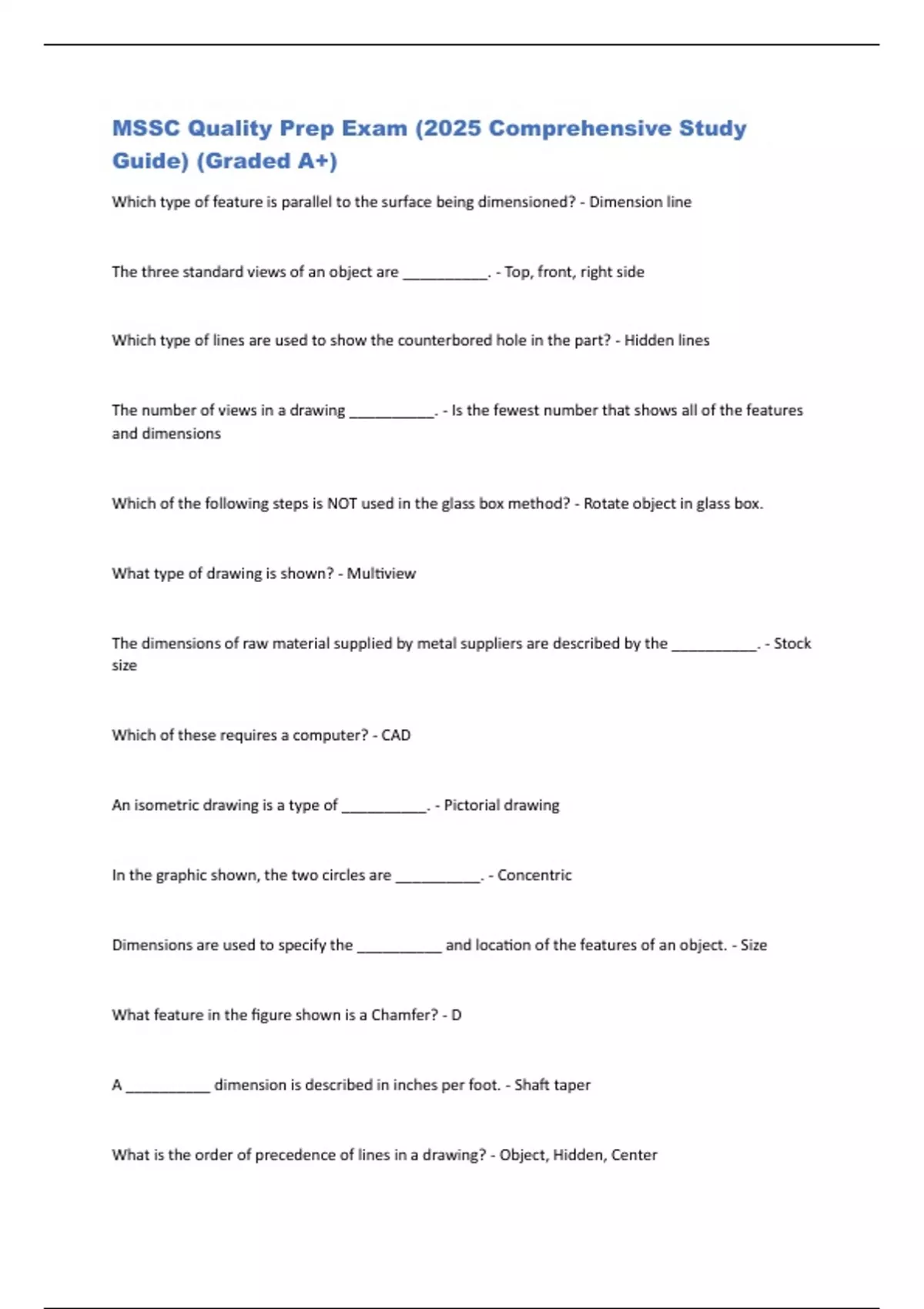

MSSC Quality Prep Exam (2025 Comprehensive Study
Guide) (Graded A+)
Which type of feature is parallel to the surface being dimensioned? - Dimension line
The three standard views of an object are __________. - Top, front, right side
Which type of lines are used to show the counterbored hole in the part? - Hidden lines
The number of views in a drawing __________. - Is the fewest number that shows all of the features
and dimensions
Which of the following steps is NOT used in the glass box method? - Rotate object in glass box.
What type of drawing is shown? - Multiview
The dimensions of raw material supplied by metal suppliers are described by the __________. - Stock
size
Which of these requires a computer? - CAD
An isometric drawing is a type of __________. - Pictorial drawing
In the graphic shown, the two circles are __________. - Concentric
Dimensions are used to specify the __________ and location of the features of an object. - Size
What feature in the figure shown is a Chamfer? - D
A __________ dimension is described in inches per foot. - Shaft taper
What is the order of precedence of lines in a drawing? - Object, Hidden, Center
,Which of the following is not one of the six rules for dimensioning an object? - Dimension hidden
lines
Engineers sometimes use a __________ to measure angles on a drawing. - Protractor
What dimension is indicated in this graphic? - Height
There are 60 minutes of arc in one __________. - Degree
In manufacturing, a blueprint is also called what? - A technical drawing
The distance across the flats of the hex head shown in the part drawing is __________ inches. - 2 ¼
The length of the part shown in the drawing is __________ inches. - 9 ¾
Which type best describes the line indicated in the graphic? - Object Line
Which of the following bolts is a grade 2? - A
The hole shown in the graphic is a __________ hole. - Counterbore
What are the two types of assembly drawings? - Exploded and basic
A sectional view __________. - All of the above
Which of the following is not used to specify a threaded fastener? - Minor diameter
Two types of threads are __________. - Internal and external
In the assembly drawing shown, part 3 screws into part __________. - 4
, The material that will be used to create the gear is indicated in the part drawing's title block to be
__________. - Cast iron
In a threaded fastener assembly what is designed to protect the threads? - Shank
Manufacturing workers can use a calibrated torque wrench to __________. - Measure the proper
amount of torque
The part of a drawing that indicates that the drawing has the most up to date information on it is
__________. - Drawing revision level
What type hole is shown in the figure? - Counterbored
The minor diameter of a screw thread is measured at the __________. - Root of screw thread
Section lines in a sectional view are __________. - All of the above
To establish on a drawing that 1/4 inch equals 1 inch, the designer would write __________. - 1/4=1
Metals treated by __________ processes become soft. - Annealing
Where would you look in a title block to see if there has been changes? - Revision number
Section lines on a blueprint indicate __________. - A surface that has been cut
A screw with fine thread is represented on a drawing with what designation? - UNF
What is the depth of the countersink in the image? - 0.12 inches
What is placed at the arrowheads of the cutting plane line to identify the cutting plane with the
proper sectional view? - Capital letter
