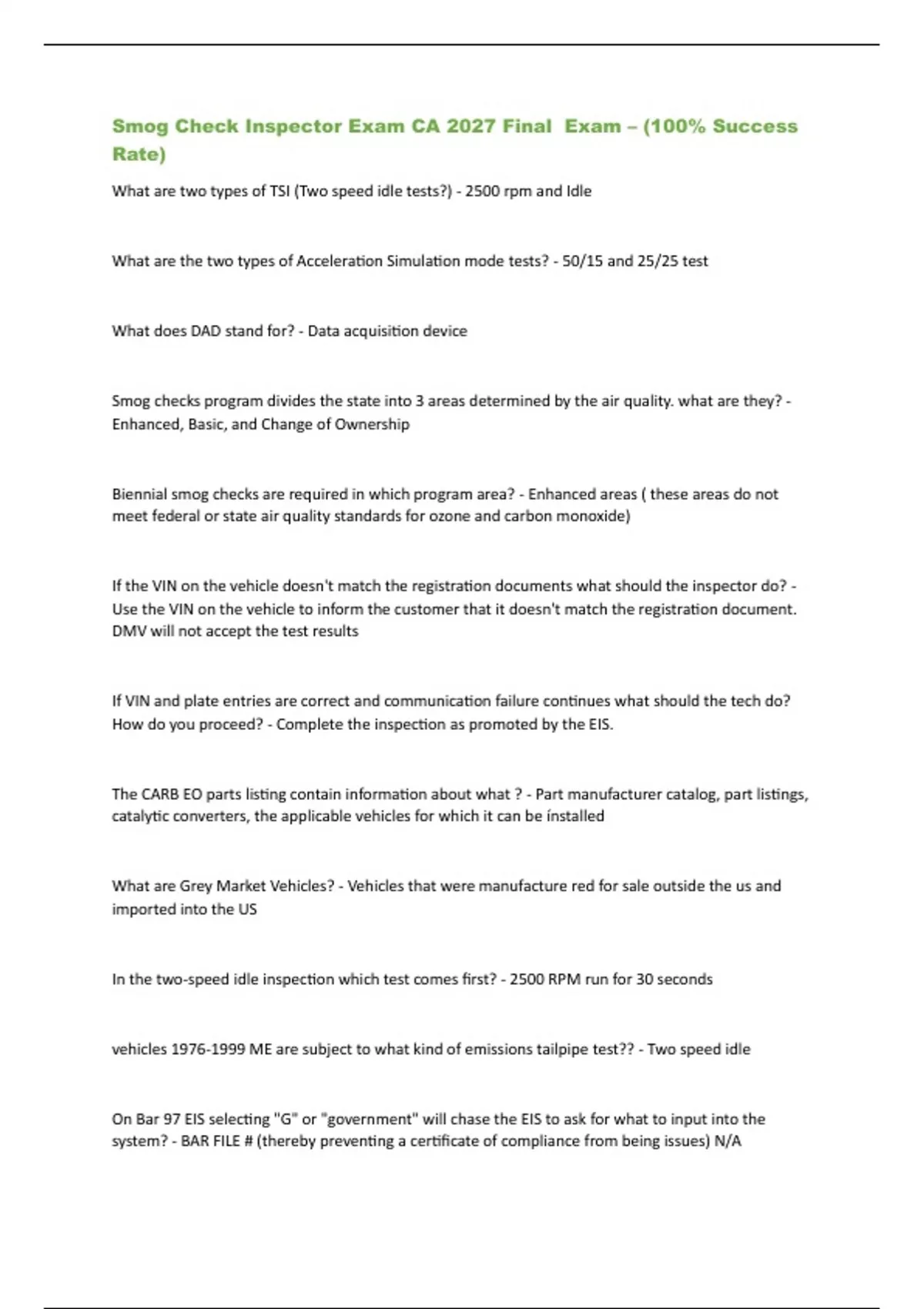

Smog Check Inspector Exam CA 2027 Final Exam – (100% Success
Rate)
What are two types of TSI (Two speed idle tests?) - 2500 rpm and Idle
What are the two types of Acceleration Simulation mode tests? - 50/15 and 25/25 test
What does DAD stand for? - Data acquisition device
Smog checks program divides the state into 3 areas determined by the air quality. what are they? -
Enhanced, Basic, and Change of Ownership
Biennial smog checks are required in which program area? - Enhanced areas ( these areas do not
meet federal or state air quality standards for ozone and carbon monoxide)
If the VIN on the vehicle doesn't match the registration documents what should the inspector do? -
Use the VIN on the vehicle to inform the customer that it doesn't match the registration document.
DMV will not accept the test results
If VIN and plate entries are correct and communication failure continues what should the tech do?
How do you proceed? - Complete the inspection as promoted by the EIS.
The CARB EO parts listing contain information about what ? - Part manufacturer catalog, part listings,
catalytic converters, the applicable vehicles for which it can be ínstalled
What are Grey Market Vehicles? - Vehicles that were manufacture red for sale outside the us and
imported into the US
In the two-speed idle inspection which test comes first? - 2500 RPM run for 30 seconds
vehicles 1976-1999 ME are subject to what kind of emissions tailpipe test?? - Two speed idle
On Bar 97 EIS selecting "G" or "government" will chase the EIS to ask for what to input into the
system? - BAR FILE # (thereby preventing a certificate of compliance from being issues) N/A
, What is required under visual inspection for gasoline vehicles from 1975-1999 ? - All of them
(Crankcase emission controls, TAC, EVAP, EGR, computers, sensors, switches, visible smoke, liquid fuel
leaks, ignition spark controls,
Star Station certification allows test and repair stations to..? - Issue certificates to gross polluters,
perform repairs, perform initial inspection, issue certificates to directed vehicles
What are directed vehicles? - Bar directs a portion of the enhanced area fleet to star certified
stations for certification
Required tests for Tailpipe inspection? (2) - ASM or two speed idle
Bar referee label provides what information on the label for kit cars ? (2) - Certification type and
emission control requirements
If a vehicle is not at normal operating temperature the vehicles may either be ___ or ___. - Idled or
driven normally as necessary to achieve normal operating temperature
Which type of vehicles excluding hybrids (electric) must be tested for visible smoke? - Gasoline and
Diesel
What is the BAR snap test ? - Quickly push and release the accelerator pedal from idle position to
between 2,000- 3,000 RPM then immediately allow the engine to return to idle.
What is an under hood emission control label? Indicates the vehicles ___? - Certification type (
California or Federal)
Does a missing or ilegible emission control label constitute in an inspection failure? - No, you can
proceed with the inspection provided that the required emission controls can be determined using
other sources
For gasoline powered vehicles with stop-start systems, the inspector shall visually inspect for ___?
And in what position ? - Liquid fuel leaks and key on engine off (KOEO)
A SPCNS vehicle may be built from ? (3 things ) - Kit cars, new or used parts, dismantled vehicles that
are reconstructed but do not resemble the original make
