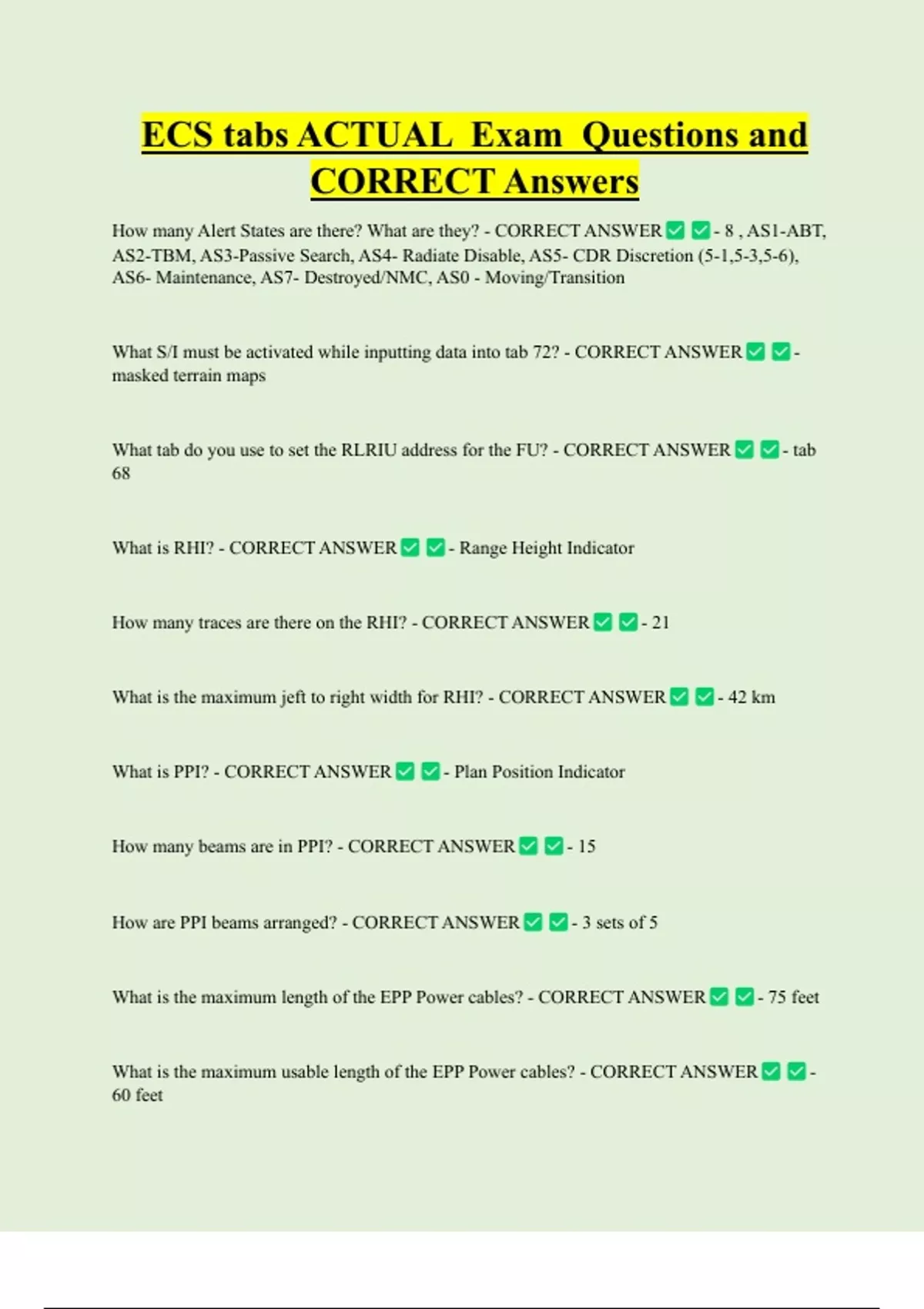

ECS tabs ACTUAL Exam Questions and
CORRECT Answers
How many Alert States are there? What are they? - CORRECT ANSWER - 8 , AS1-ABT,
AS2-TBM, AS3-Passive Search, AS4- Radiate Disable, AS5- CDR Discretion (5-1,5-3,5-6),
AS6- Maintenance, AS7- Destroyed/NMC, AS0 - Moving/Transition
What S/I must be activated while inputting data into tab 72? - CORRECT ANSWER -
masked terrain maps
What tab do you use to set the RLRIU address for the FU? - CORRECT ANSWER - tab
68
What is RHI? - CORRECT ANSWER - Range Height Indicator
How many traces are there on the RHI? - CORRECT ANSWER - 21
What is the maximum jeft to right width for RHI? - CORRECT ANSWER - 42 km
What is PPI? - CORRECT ANSWER - Plan Position Indicator
How many beams are in PPI? - CORRECT ANSWER - 15
How are PPI beams arranged? - CORRECT ANSWER - 3 sets of 5
What is the maximum length of the EPP Power cables? - CORRECT ANSWER - 75 feet
What is the maximum usable length of the EPP Power cables? - CORRECT ANSWER -
60 feet
,During initialization, the NFS allignment accuracy UTM coordinate can be no more than
________ from the actual radar location. - CORRECT ANSWER - 40 km / 50 m by
Rayteon
How many pages does the ECS's volumes Tab have? - CORRECT ANSWER - 55
What Tab is used for TBM discrimination peramiters? - CORRECT ANSWER - tab 15
What tab displays specific threats to your theater of operations? - CORRECT ANSWER -
tab 44
What tab would you use to configure the system to automatically engage TBM Bravos? -
CORRECT ANSWER - tab 78
How many hours of mode 1 & 3 codes can be input into tab 73? - CORRECT ANSWER -
48 hours
What is the highest number of cannisters that can be stacked in the MSA? - CORRECT
ANSWER -4
What should be mapped first, the STL or PTL? - CORRECT ANSWER - STL
Where is FP search mode located in yout tabs? - CORRECT ANSWER - tab 1 page 2
Which tab allows you to create a virtual target? - CORRECT ANSWER - Tab 4
Brevity code timber means what? - CORRECT ANSWER - TADIL-J
, What is ECS tab 13? - CORRECT ANSWER - Data Base or Initialization Selection Tab
Local LSs must be emplaced at a minimum of how far away from each other? - CORRECT
ANSWER - 90 meters
Which S/I displays the situation centered relative to the curser selected position? - CORRECT
ANSWER - Offset
What is ECS tab 68? - CORRECT ANSWER - Data communications control Tab
Whiuch tab can display the 5 most recent faults? - CORRECT ANSWER - tab 32
What tab and page is ADW programmed in? - CORRECT ANSWER - tab 1 page 1
Within how many degrees of the PTL must each local LS be emplaced? - CORRECT
ANSWER - (+/-) 80 degrees
What does the second page of tab 2 allow? - CORRECT ANSWER - it allows the operator
to set the DLT and LS prime path modes
What is Ecs tab 99? - CORRECT ANSWER - FP Data Transfer control
Where is launch point discrimination turned on? - CORRECT ANSWER - tab 14 page 3
Where is a jammer strobe line display range entered? - CORRECT ANSWER - tab 14
page 2
What member of the RSOP team is responsible for setting up the OE-254? - CORRECT
ANSWER - RSOP OIC Driver
