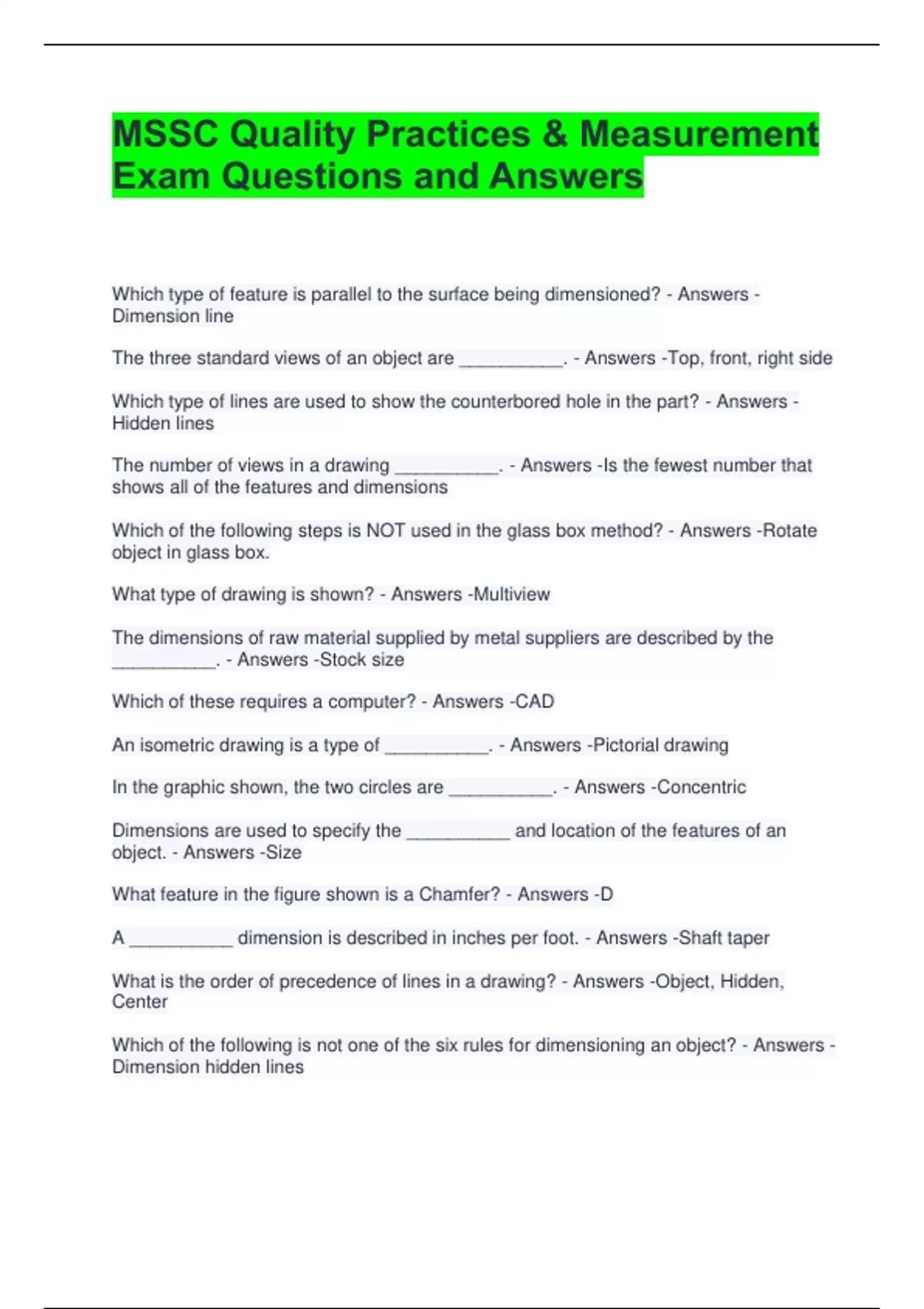

MSSC Quality Practices & Measurement
Exam Questions and Answers
Which type of feature is parallel to the surface being dimensioned? - Answers -
Dimension line
The three standard views of an object are __________. - Answers -Top, front, right side
Which type of lines are used to show the counterbored hole in the part? - Answers -
Hidden lines
The number of views in a drawing __________. - Answers -Is the fewest number that
shows all of the features and dimensions
Which of the following steps is NOT used in the glass box method? - Answers -Rotate
object in glass box.
What type of drawing is shown? - Answers -Multiview
The dimensions of raw material supplied by metal suppliers are described by the
__________. - Answers -Stock size
Which of these requires a computer? - Answers -CAD
An isometric drawing is a type of __________. - Answers -Pictorial drawing
In the graphic shown, the two circles are __________. - Answers -Concentric
Dimensions are used to specify the __________ and location of the features of an
object. - Answers -Size
What feature in the figure shown is a Chamfer? - Answers -D
A __________ dimension is described in inches per foot. - Answers -Shaft taper
What is the order of precedence of lines in a drawing? - Answers -Object, Hidden,
Center
Which of the following is not one of the six rules for dimensioning an object? - Answers -
Dimension hidden lines
,Engineers sometimes use a __________ to measure angles on a drawing. - Answers -
Protractor
What dimension is indicated in this graphic? - Answers -Height
There are 60 minutes of arc in one __________. - Answers -Degree
In manufacturing, a blueprint is also called what? - Answers -A technical drawing
The distance across the flats of the hex head shown in the part drawing is __________
inches. - Answers -2 ¼
The length of the part shown in the drawing is __________ inches. - Answers -9 ¾
Which type best describes the line indicated in the graphic? - Answers -Object Line
Which of the following bolts is a grade 2? - Answers -A
The hole shown in the graphic is a __________ hole. - Answers -Counterbore
What are the two types of assembly drawings? - Answers -Exploded and basic
A sectional view __________. - Answers -All of the above
Which of the following is not used to specify a threaded fastener? - Answers -Minor
diameter
Two types of threads are __________. - Answers -Internal and external
In the assembly drawing shown, part 3 screws into part __________. - Answers -4
The material that will be used to create the gear is indicated in the part drawing's title
block to be __________. - Answers -Cast iron
In a threaded fastener assembly what is designed to protect the threads? - Answers -
Shank
Manufacturing workers can use a calibrated torque wrench to __________. - Answers -
Measure the proper amount of torque
The part of a drawing that indicates that the drawing has the most up to date information
on it is __________. - Answers -Drawing revision level
What type hole is shown in the figure? - Answers -Counterbored
, The minor diameter of a screw thread is measured at the __________. - Answers -Root
of screw thread
Section lines in a sectional view are __________. - Answers -All of the above
To establish on a drawing that 1/4 inch equals 1 inch, the designer would write
__________. - Answers -1/4=1
Metals treated by __________ processes become soft. - Answers -Annealing
Where would you look in a title block to see if there has been changes? - Answers -
Revision number
Section lines on a blueprint indicate __________. - Answers -A surface that has been
cut
A screw with fine thread is represented on a drawing with what designation? - Answers -
UNF
What is the depth of the countersink in the image? - Answers -0.12 inches
What is placed at the arrowheads of the cutting plane line to identify the cutting plane
with the proper sectional view? - Answers -Capital letter
Assembly drawings rely on reference letters or numbers to __________. - Answers -
Identify the individual parts
If a feature on a drawing is drawn 3 inches long and the scale is 1:4, what is the actual
dimension on the object? - Answers -12"
The specifications for the length of produced parts is 5.146 inches with a tolerance of ±
0.005. Is a part that has been produced at 5.140 inches out of spec? - Answers -Yes, it
is out of spec
Which dimension on a production drawing has the most accuracy? - Answers -The one
with the most "tolerance" decimal places
A datum feature symbol can be connected to __________. - Answers -Any of the above
The graphic shown is an example of __________ dimensioning. - Answers -Baseline
If 4 percent of 1200 production pieces are out of spec, how many are out of spec? -
Answers -48
A part measuring 2.54 inches is out of spec if the specification is __________. -
Answers -2.00 ± .53
