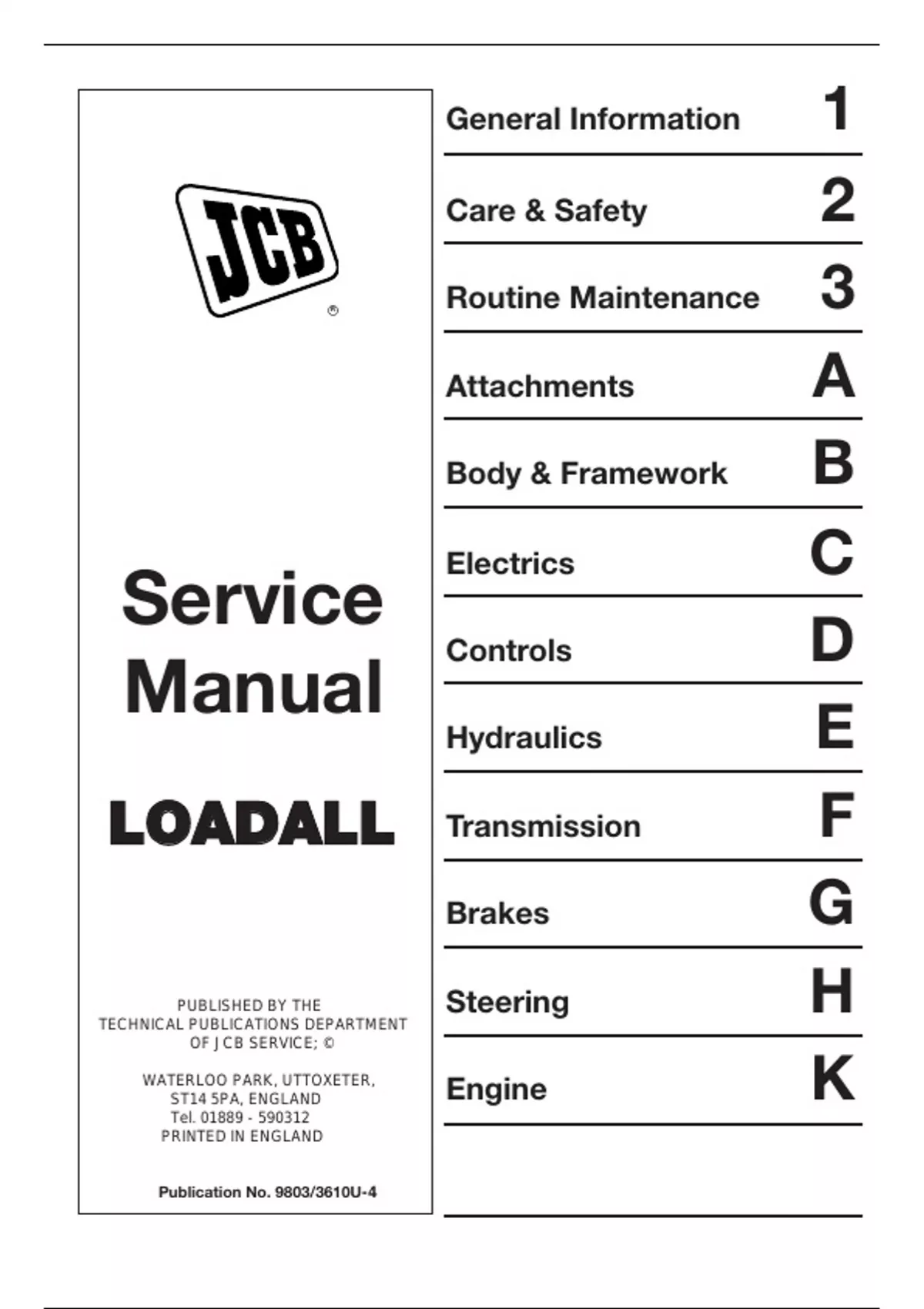

General Information 1
Care & Safety 2
R
Routine Maintenance 3
Attachments A
Body & Framework B
Electrics C
Service
Controls D
Manual Hydraulics E
LOADALL Transmission F
Brakes G
PUBLISHED BY THE
TECHNICAL PUBLICATIONS DEPARTMENT
Steering H
OF JCB SERVICE; ©
WATERLOO PARK, UTTOXETER,
ST14 5PA, ENGLAND
Tel. 01889 - 590312
Engine K
PRINTED IN ENGLAND
Publication No. 9803/3610U-4
,
,Introduction
This publication is designed for the benefit of JCB Distributor Service Engineers who are receiving, or have received, training
by JCB Technical Training Department.
These personnel should have a sound knowledge of workshop practice, safety procedures, and general techniques associated
with the maintenance and repair of hydraulic earthmoving equipment.
Renewal of oil seals, gaskets, etc., and any component showing obvious signs of wear or damage is expected as a matter of
course. It is expected that components will be cleaned and lubricated where appropriate, and that any opened hose or pipe
connections will be blanked to prevent excessive loss of hydraulic fluid and ingress of dirt. Finally, please remember above all
else SAFETY MUST COME FIRST!
The manual is compiled in sections, the first three are numbered and contain information as follows:
1 = General Information - includes torque settings and service tools.
2 = Care & Safety - includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 = Routine Maintenance - includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for
example:
A = Attachments
B = Body & Framework ...etc.
The page numbering in each alphabetically coded section is not continuous. This allows for the insertion of new items in later
issues of the manual.
Section contents, technical data, circuit descriptions, operation descriptions etc are inserted at the beginning of each
alphabetically coded section.
READ the section contents to locate machine types, machine type indentification IS NOT listed on individual pages.
All sections are listed on the front cover; tabbed divider cards align directly with individual sections on the front cover for rapid
reference.
Where a torque setting is given as a single figure it may be varied by plus or minus 3%. Torque figures indicated are for dry
threads, hence for lubricated threads may be reduced by one third.
'Left Hand' and 'Right Hand' are as viewed from the rear of the machine facing forwards.
This Service Manual covers the following machines:
504B - from Machine Serial Number 277001
*526 - from Machine Serial Number 279289
9803/3610U Issue 2*
,
