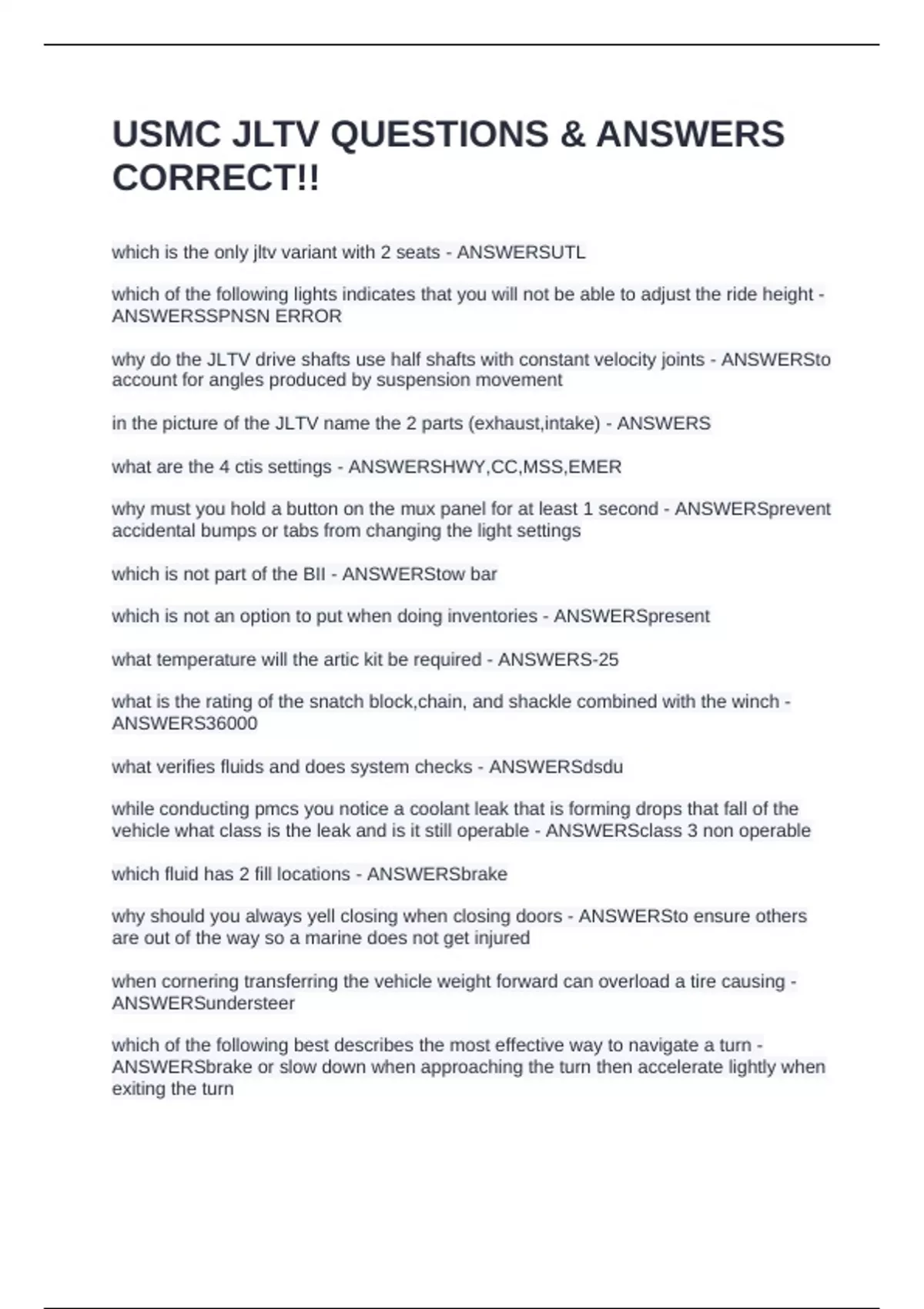

USMC JLTV QUESTIONS & ANSWERS
CORRECT!!
which is the only jltv variant with 2 seats - ANSWERSUTL
which of the following lights indicates that you will not be able to adjust the ride height -
ANSWERSSPNSN ERROR
why do the JLTV drive shafts use half shafts with constant velocity joints - ANSWERSto
account for angles produced by suspension movement
in the picture of the JLTV name the 2 parts (exhaust,intake) - ANSWERS
what are the 4 ctis settings - ANSWERSHWY,CC,MSS,EMER
why must you hold a button on the mux panel for at least 1 second - ANSWERSprevent
accidental bumps or tabs from changing the light settings
which is not part of the BII - ANSWERStow bar
which is not an option to put when doing inventories - ANSWERSpresent
what temperature will the artic kit be required - ANSWERS-25
what is the rating of the snatch block,chain, and shackle combined with the winch -
ANSWERS36000
what verifies fluids and does system checks - ANSWERSdsdu
while conducting pmcs you notice a coolant leak that is forming drops that fall of the
vehicle what class is the leak and is it still operable - ANSWERSclass 3 non operable
which fluid has 2 fill locations - ANSWERSbrake
why should you always yell closing when closing doors - ANSWERSto ensure others
are out of the way so a marine does not get injured
when cornering transferring the vehicle weight forward can overload a tire causing -
ANSWERSundersteer
which of the following best describes the most effective way to navigate a turn -
ANSWERSbrake or slow down when approaching the turn then accelerate lightly when
exiting the turn
, you are approaching a 4 way stop without the aid of your adriver do you have adequate
field of view to safely navigate aright hand turn - ANSWERSno because the adriver
does not have a clear field of view to the right side of the vehicle
a _____ effectively doubles the rated capacity of the winch - ANSWERSsnatch block
your jltv is at mire 2 (fender) can you successfully perform a self recovery -
ANSWERSno
what is mire 3 - ANSWERStop of hood
why is it important to attach the recovery chain near the bottom of the tree -
ANSWERSstrongest part
why is it important to cycle the winch motor - ANSWERSprevent from overheating
what are the 2 types of airlines used for flat towing - ANSWERSservice and emergency
rms is used to classify _____ by roughness - ANSWERSsurfaces
less traction requires a/an ____ in speed - ANSWERSreduction
understeer is caused by a loss of ___ in the front wheels during a turn -
ANSWERStraction
what should you do if the jltv swerves - ANSWERSturn to the swerve then return to the
line
which LL must be activated manually - ANSWERSLL3
what speed is the jltv limited to in mss - ANSWERS20
what could cause the wheels to lock up - ANSWERSslick spots and loss of steering
control
when installing tire chains always put the chains on with the open ends of the cross
chain hooks ____ from the tire - ANSWERSaway
which ctis should you use in mud - ANSWERSMSS
what is the power distribution when in LL2 - ANSWERSpower is equal in the front at
25% each while in the back the driver side front tire has 50%
when operating in muddy terrain failure to maintain ____ can result in the vehicle
becoming mired in mud - ANSWERSmomentum
