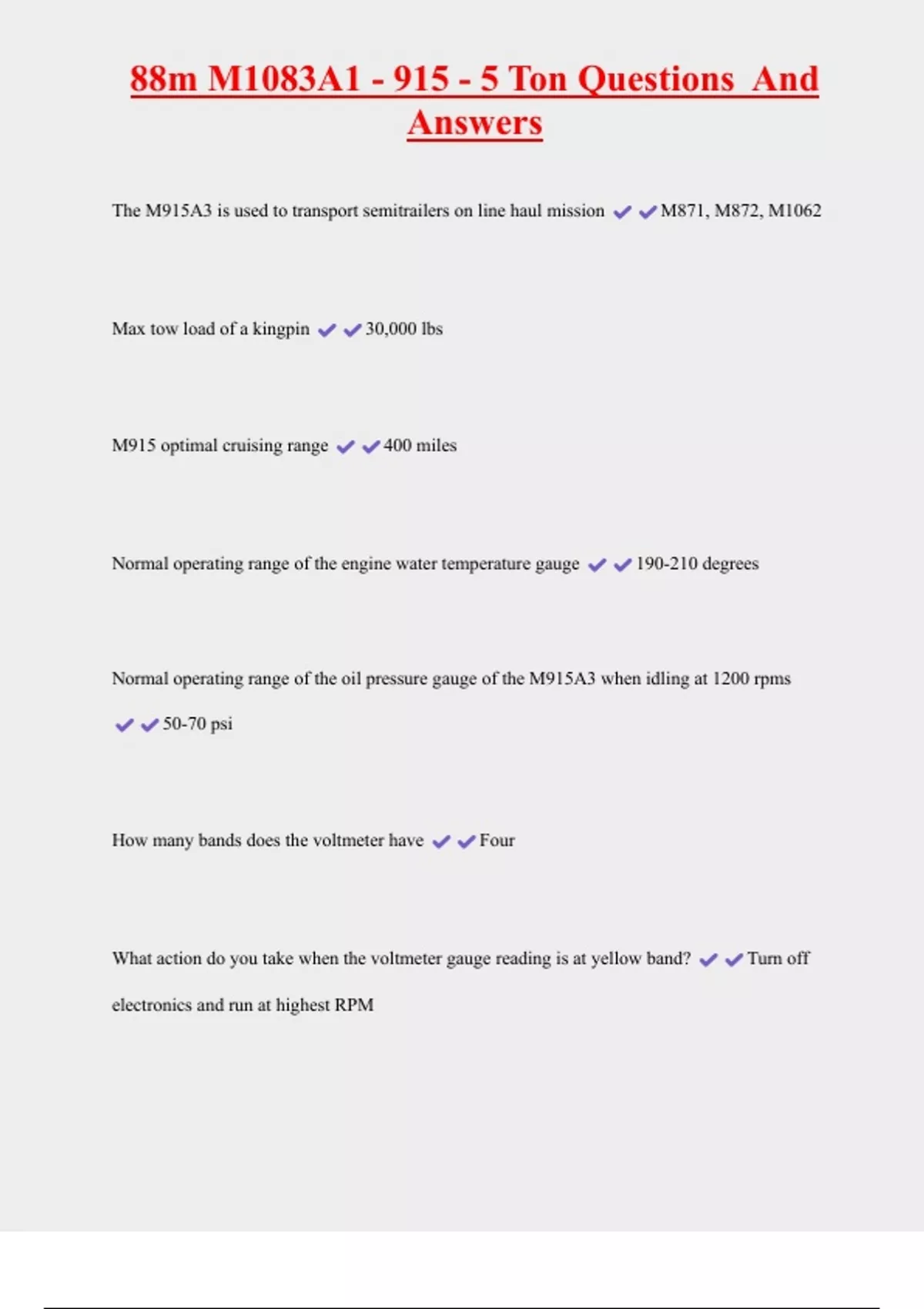

88m M1083A1 - 915 - 5 Ton Questions And
Answers
The M915A3 is used to transport semitrailers on line haul mission M871, M872, M1062
Max tow load of a kingpin 30,000 lbs
M915 optimal cruising range 400 miles
Normal operating range of the engine water temperature gauge 190-210 degrees
Normal operating range of the oil pressure gauge of the M915A3 when idling at 1200 rpms
50-70 psi
How many bands does the voltmeter have Four
What action do you take when the voltmeter gauge reading is at yellow band? Turn off
electronics and run at highest RPM
, 88m M1083A1 - 915 - 5 Ton Questions And
Answers
Tachometer displays what engine speed (rpm)
Normal operating range of the air pressure gauge 90-120 psi
primary air pressure registers in _____ brake system while the secondary registers in ______
rear, front
3 Braking functions of the M915 Engine, Service, & Parking
What is the purpose of the 5th wheel slide Reposition the 5th wheel from inside the cab
What happens when you pull the johnny bar to the down position Trailer brakes lock up
On the M915A3 a ____ light comes on and warning buzzer sounds when engine oil pressure is
below ___ PSI Red, 5
____ light comes on and warning buzzer sounds when engine coolant temperature is above ___
degrees Red, 225
