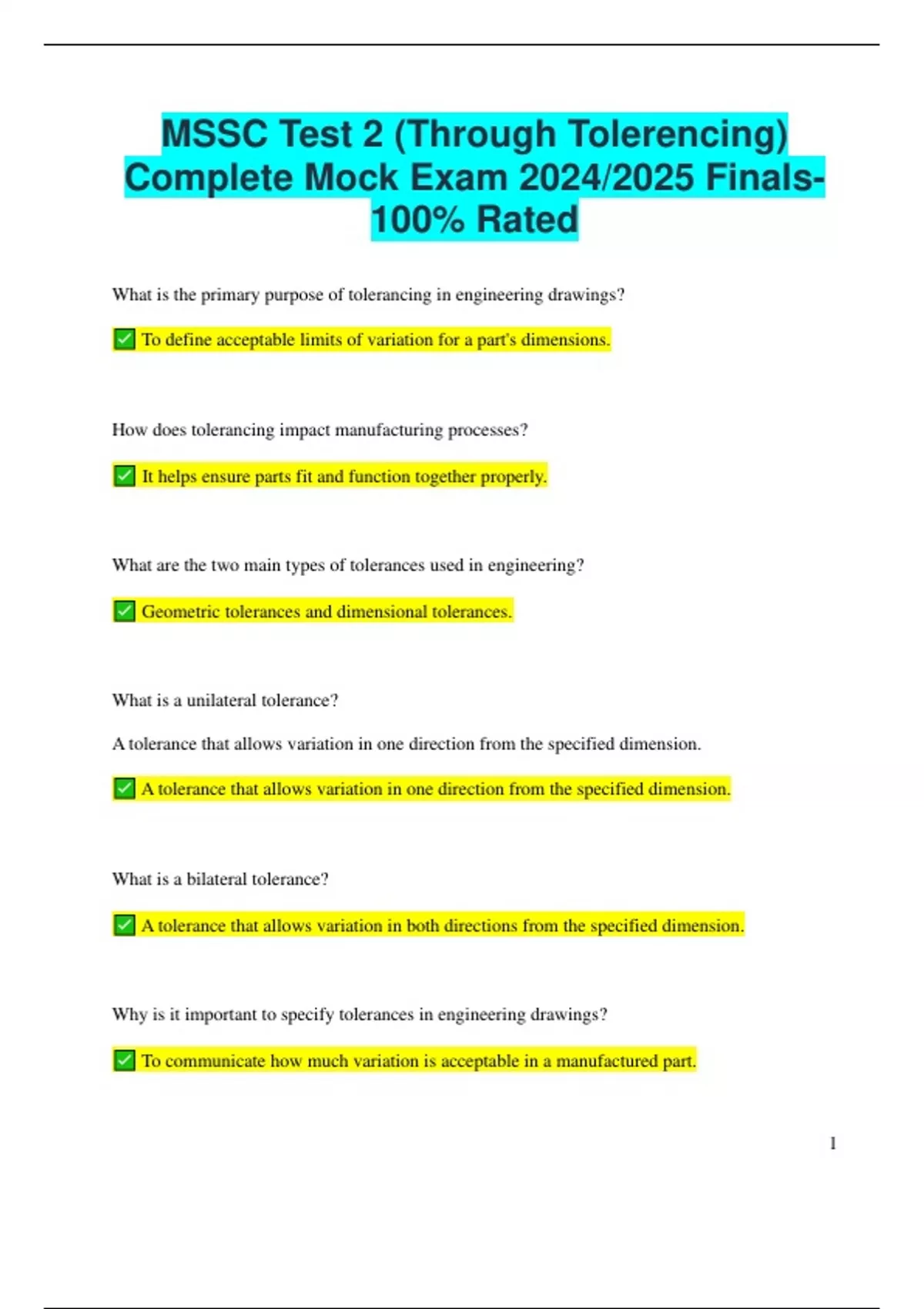

MSSC Test 2 (Through Tolerencing) Complete Mock Exam 2024/2025 Finals100% Rated What is the primary purpose of tolerancing in engineering drawings? To define acceptable limits of variation for a part's dimensions. How does tolerancing impact manufacturing processes? It helps ensure parts fit and function together properly. What are the two main types of tolerances used in engineering? Geometric tolerances and dimensional tolerances. What is a unilateral tolerance? A tolerance that allows variation in one direction from the specified dimension. A tolerance that allows variation in one direction from the specified dimension. What is a bilateral tolerance? A tolerance that allows variation in both directions from the specified dimension. Why is it important to specify tolerances in engineering drawings? To communicate how much variation is acceptable in a manufactured part. 2 What does GD&T stand for? Geometric Dimensioning and Tolerancing. What is the significance of the datum reference in GD&T? It establishes a point of origin for measurements. It establishes a point of origin for measurements. What does the term "flatness" refer to in GD&T? A geometric tolerance that specifies how much a surface can deviate from a perfect plane. What is the meaning of "position tolerance"? It controls the location of features on a part. What is the function of a tolerance zone? It defines the area within which the feature must lie. What is the difference between form tolerances and location tolerances? Form tolerances control the shape of a feature, while location tolerances control the position. Form tolerances control the shape of a feature, while location tolerances control the position. How is "cylindricity" defined in GD&T? A tolerance that specifies how much a cylindrical feature can deviate from a perfect cylinder. 3 What does "profile of a surface" mean in tolerancing? It controls the contour of a surface and its permissible variation. It controls the contour of a surface and its permissible variation. What is the role of surface roughness in tolerancing? It defines the texture of a surface and its impact on fit and function. What does the term "concentricity" mean in GD&T? It refers to the condition of two or more features sharing the same center. What is the purpose of a tolerance stack-up analysis? To assess the cumulative effect of part tolerances on assembly fit and function. What does "total runout" measure? It measures the variation in a circular feature as it rotates. It measures the variation in a circular feature as it rotates. How do you interpret a tolerance specified as "±0.01"? It indicates the dimension can vary by 0.01 units above or below the nominal size. What is a feature control frame in GD&T? 4 It is a rectangular box that contains the geometric tolerance information for a feature. What does "symmetry" refer to in tolerancing? It specifies how evenly a feature must be distributed around a central axis. How can tolerancing improve product quality? By ensuring components fit and work together as intended. What is the significance of the term "maximum material condition"? It indicates the largest size a feature can be while still being within tolerance. What is a "clearance fit"? A fit that allows for space between mating parts to ensure easy assembly. What does "interference fit" mean? It ensures parts fit tightly together, preventing any movement. It ensures parts fit tightly together, preventing any movement. What role does tolerancing play in cost management? Proper tolerancing can reduce scrap rates and rewo
