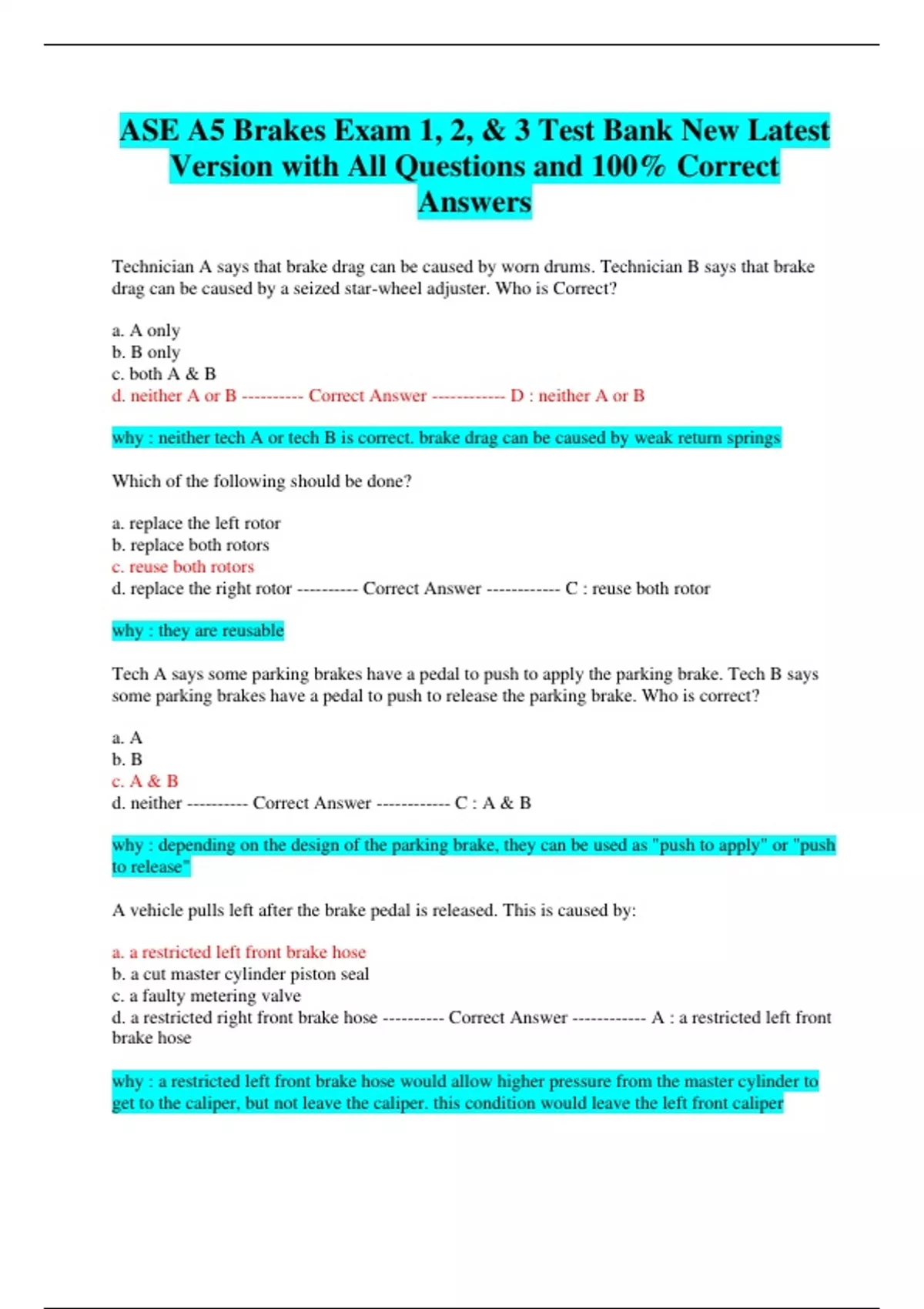

ASE A5 Brakes Exam 1, 2, & 3 Test Bank New Latest
Version with All Questions and 100% Correct
Answers
Technician A says that brake drag can be caused by worn drums. Technician B says that brake
drag can be caused by a seized star-wheel adjuster. Who is Correct?
a. A only
b. B only
c. both A & B
d. neither A or B ---------- Correct Answer ------------ D : neither A or B
why : neither tech A or tech B is correct. brake drag can be caused by weak return springs
Which of the following should be done?
a. replace the left rotor
b. replace both rotors
c. reuse both rotors
d. replace the right rotor ---------- Correct Answer ------------ C : reuse both rotor
why : they are reusable
Tech A says some parking brakes have a pedal to push to apply the parking brake. Tech B says
some parking brakes have a pedal to push to release the parking brake. Who is correct?
a. A
b. B
c. A & B
d. neither ---------- Correct Answer ------------ C : A & B
why : depending on the design of the parking brake, they can be used as "push to apply" or "push
to release"
A vehicle pulls left after the brake pedal is released. This is caused by:
a. a restricted left front brake hose
b. a cut master cylinder piston seal
c. a faulty metering valve
d. a restricted right front brake hose ---------- Correct Answer ------------ A : a restricted left front
brake hose
why : a restricted left front brake hose would allow higher pressure from the master cylinder to
get to the caliper, but not leave the caliper. this condition would leave the left front caliper
,applied after the brake pedal is released
Brake pedal reserve that gradually
fades under light pressure
indicates:
a. A brake line restriction
b. Spring tension on the
brake pedal is weak
c. Internal leaks
d. The system is operating
properly ---------- Correct Answer ------------ c
Which of the following statements
is NOT true?
a. Some imports use HSMO,
a green colored oil, as
brake fluid
b. Silicone, or DOT 5 brake
fluids, contain a purple dye
c. Polyglycol brake fluids are
amber to clear in color
d. All DOT approved brake
fluids are hygroscopic ---------- Correct Answer ------------ d
A bypassing master cylinder
can be detected by the:
a. Internal leak test
b. External leak test
c. Compensating port test
d. QTU test ---------- Correct Answer ------------ a
Honing will remove the anodized
finish on which type of
master cylinder?
a. Add-on ABS
b. Aluminum
c. Cast iron
d. Composite ---------- Correct Answer ------------ b
The first piston installed when
rebuilding a master cylinder is
the:
,a. Primary piston
b. Secondary piston
c. QTU piston
d. Compensating piston ---------- Correct Answer ------------ b
The QTU valve on a master
cylinder regulates fluid flow:
a. Between the master cylinder
and the reservoir
b. Between the two chambers
of the reservoir
c. Between opposite wheels
d. Between the two channels
of the master cylinder ---------- Correct Answer ------------ a
The master cylinder should be
cleaned with:
a. Kerosene or carburetor
cleaner
b. Brake parts cleaner or
brake fluid
c. Fresh solvent or hot,
soapy water
d. Motor oil or cutting oil ---------- Correct Answer ------------ b
A correctly honed cylinder
bore should:
a. Have a smooth, polished
surface
b. Have a cross-hatch pattern
c. Be larger than the original
size by a specified amount
d. Have scoring no deeper
than 0.006 inch (0.15 mm) ---------- Correct Answer ------------ b
The first component in a brake
system bleeding sequence is
the:
a. Master cylinder
b. Wheel cylinder
c. Combination valve
, d. Proportioning valve ---------- Correct Answer ------------ a
Generally speaking, which of
the wheel brakes should you
bleed first?
a. The one farthest from the
master cylinder
b. The one closest to the
master cylinder
c. The one closest to the
driver
d. The one closest to the
passenger ---------- Correct Answer ------------ a
What special tool is required
to pressure bleed a system
equipped with a metering
valve?
a. An adjustment gauge
b. A torque wrench
c. A vacuum tool
d. An override tool ---------- Correct Answer ------------ d
On a front brake hose that
does not have a banjo fitting,
which end do you disconnect
first?
a. Female end
b. Male end
c. Caliper end
d. Either end ---------- Correct Answer ------------ a
After bleeding brakes:
a. The pressure differential
switch may need to be
recentered.
b. The metering valve may
need to be adjusted
c. The proportioning valve
may need to be recentered
d. The pressure differential
switch may need to be
