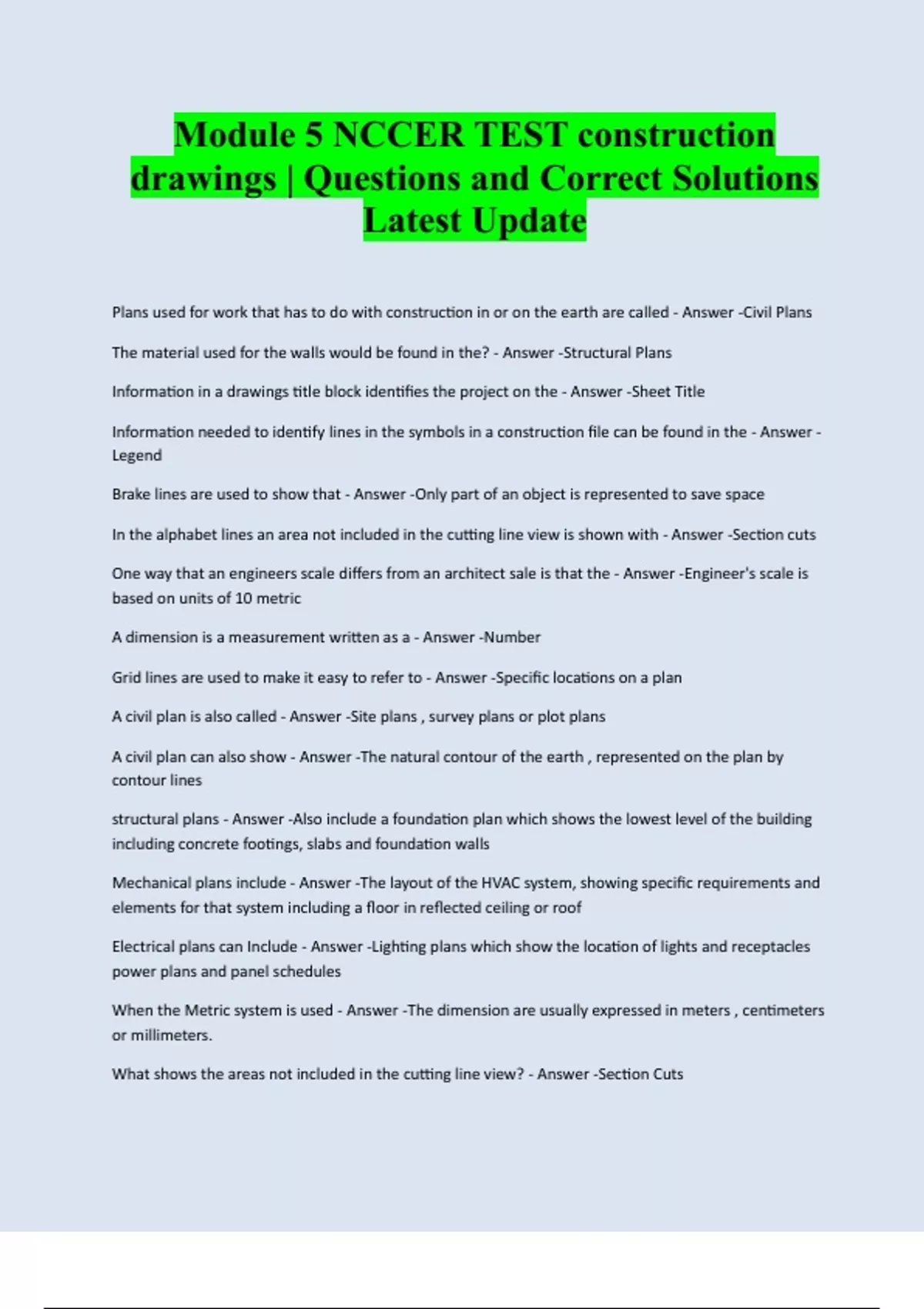

Module 5 NCCER TEST construction drawings | Questions and Correct Solutions Latest Update

Module 5 NCCER TEST construction drawings | Questions and Correct Solutions Latest Update Plans used for work that has to do with construction in or on the earth are called - Answer -Civil Plans The material used for the walls would be found in the? - Answer -Structural Plans Information in a drawings title block identifies the project on the - Answer -Sheet Title Information needed to identify lines in the symbols in a construction file can be found in the - Answer - Legend Brake lines are used to show that - Answer -Only part of an object is represented to save space In the alphabet lines an area not included in the cutting line view is shown with - Answer -Section cuts One way that an engineers scale differs from an architect sale is that the - Answer -Engineer's scale is based on units of 10 metric A dimension is a measurement written as a - Answer -Number Grid lines are used to make it easy to refer to - Answer -Specific locations on a plan A civil plan is also called - Answer -Site plans , survey plans or plot p
