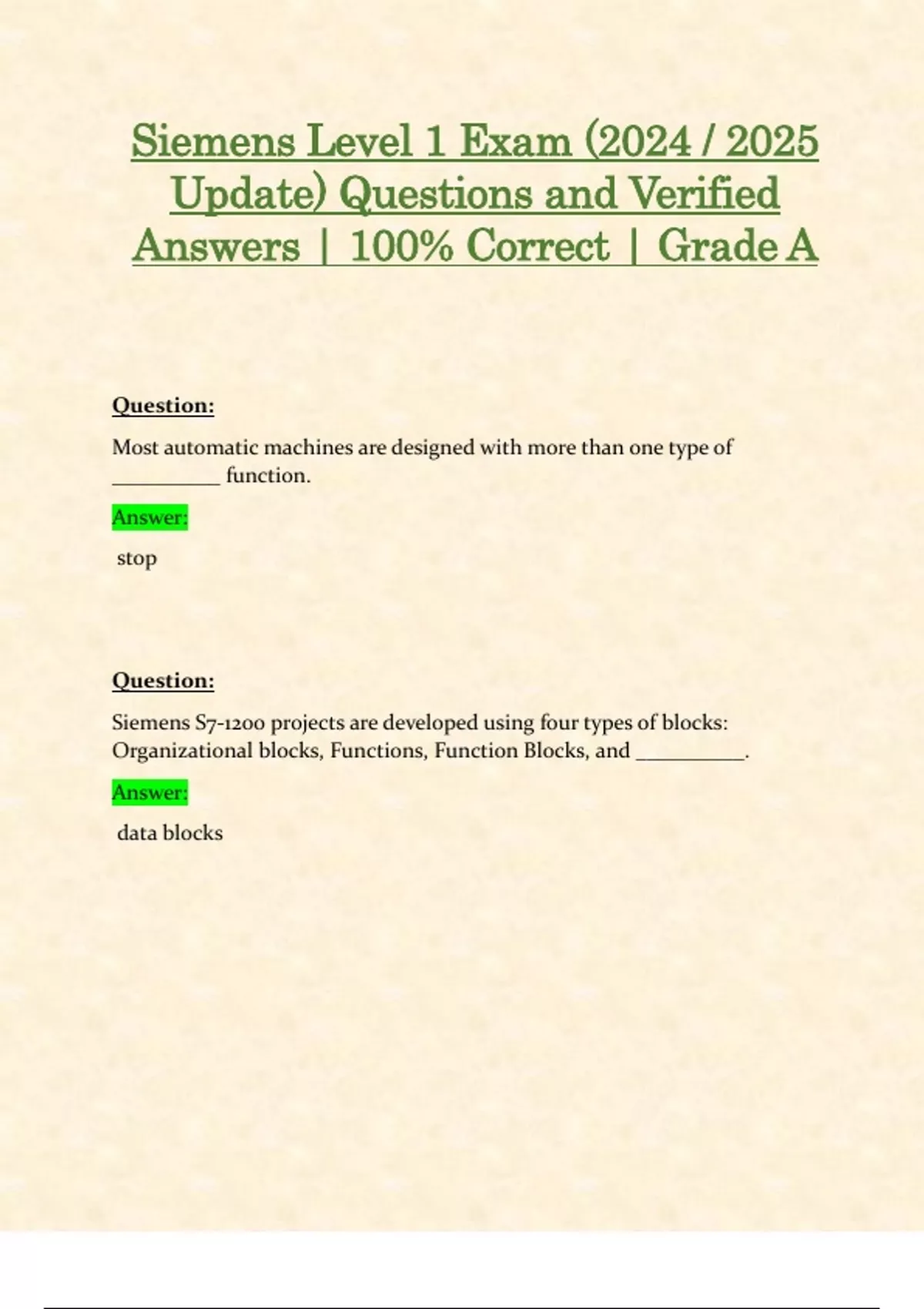

Siemens Level 1 Exam (2024 / 2025 Update) Questions and Verified Answers | 100% Correct | Grade A

Siemens Level 1 Exam (2024 / 2025 Update) Questions and Verified Answers | 100% Correct | Grade A Q: Most automatic machines are designed with more than one type of------------- function. Answer: stop Q: Siemens S7-1200 projects are developed using four types of blocks : Orga- nizational blocks, Functions, Function Blocks, and------------- . Answer: data blocks Q: What is most likely being called below? Answer: FBs Q: A processor encountering a(n)------------- JMP instruction interrupts nor- mal, linear, program execution by jumping to the LABEL instruction specified, continuing logic execution from that point. Answer: True Q: Startup organization blocks execute once when the PLC transitions from , or when recovering from loss of power. Answer: Stop to Run mode Q: When energized, the Siemens SUB instruction subtracts the value of the constant or memory location defined at IN2 from the value of the constant or memory location defined at IN1 and outputs the difference to a(n) memory location. undefined Answer: User-defined Q: To associate HMI screen elements with data in the PLC Answer: HMI Tags are associated with PLC Tags Q: Which of the following is not needed in HMI programming? Answer: Animated Buttons Q: Data is exchanged between the PLC and the HMI via . Answer: Tags Q: The most common standard pneumatic signals produced by sensors are- Answer: 3-15 psi Q: What is the rate at which a signal repeats itself? Answer: Frequency Q: Which of the following is NOT analog in nature. Answer: A Light switching on or off Q: Identify the logic gate shown below. Answer: Exclusive-OR gate
