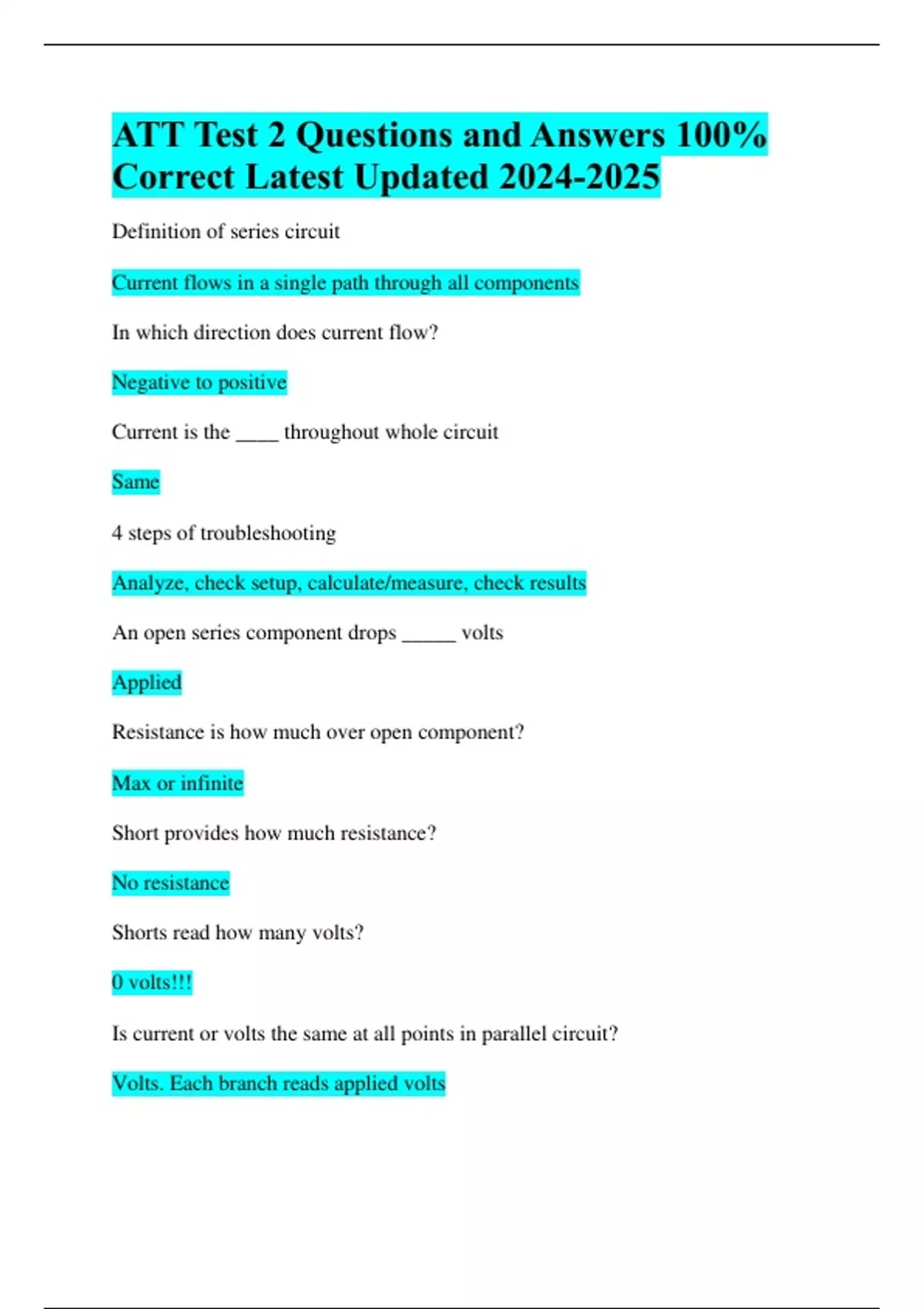

ATT Test 2 Questions and Answers 100% Correct Latest Updated 202 4-2025 Definition of series circuit Current flows in a single path through all components In which direction does current flow? Negative to positive Current is the ____ throughout whole circuit Same 4 steps of troubleshooting Analyze, check setup, calculate/measure, check results An open series component drops _____ volts Applied Resistance is how much over open component? Max or infinite Short provides how much resistance? No resistance Shorts read how many volts? 0 volts!!! Is current or volts the same at all points in parallel c ircuit? Volts. Each branch reads applied volts
Preview 1 out of 4 pages
Exam (elaborations)
ATT Test 2 Questions and Answers 100% Correct Latest Updated
Preview 1 out of 4 pages
ATT Test 2 Questions and Answers 100% Correct Latest Updated Definition of series circuit Current flows in a single path through all components In which direction does current flow? Negative to positive Current is the ____ throughout whole circuit Same 4 steps of troubleshooting
