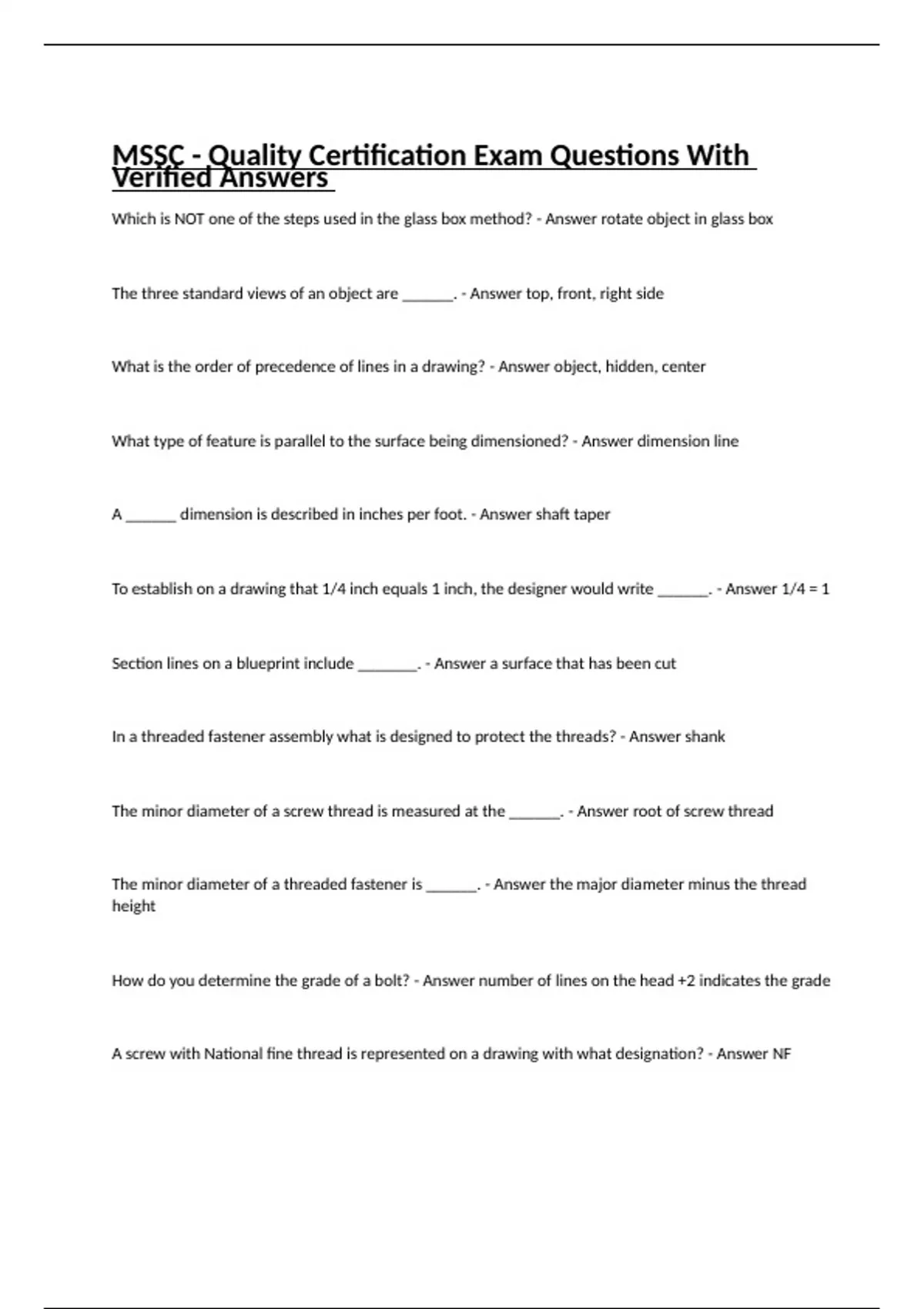

MSSC - Quality Certification Exam Questions With Verified Answers

Which is NOT one of the steps used in the glass box method? - Answer rotate object in glass box The three standard views of an object are ______. - Answer top, front, right side What is the order of precedence of lines in a drawing? - Answer object, hidden, center What type of feature is parallel to the surface being dimensioned? - Answer dimension line A ______ dimension is described in inches per foot. - Answer shaft taper To establish on a drawing that 1/4 inch equals 1 inch, the designer would write ______. - Answer 1/4 = 1 Section lines on a blueprint include _______. - Answer a surface that has been cut In a threaded fastener assembly what is designed to protect the threads? - Answer shank The minor diameter of a screw thread is measured at the ______. - Answer root of screw thread The minor diameter of a threaded fastener is ______. - Answer the major diameter minus the thread height How do you determine the grade of a bolt? - Answer number of lines on the head +2 indicates the grade A screw with National fine thread is represented on a drawing with what designation? - Answer NF Metals treated by ______ processes become soft. - Answer annealing A running fit is also called a(n) ______. - Answer sliding fit The term ______ refers to a physical portion of a part. - Answer feature A(n) _______ is a theoretically perfect line, point or pane that is located by a similar feature or part. - Answer datum GD&T _________________. - Answer allows certain tolerances on part features to be increased A feature control frame is not used to describe ______. - Answer measurements A common decimal inch rule graduation is in _______. - Answer 50ths A scale typically found on a machinist rule is _______. - Answer 1/16 Resolution is sometimes called ______. - Answer discrimination A common fractional inch rule graduation is in _______. - Answer 32nds One inch is equal to _______. - Answer 25.4mm A typical dial caliper can be used to measure dimensions to the nearest ________ inches. - Answer 0.001 Calibration means to ______. - Answer adjust a device to a standard The typical accuracy of a dial caliper is about ______ inches. - Answer 0.003 The accuracy of a digital caliper reading is about ______ inches. - Answer 0.003 A micrometer increments how far for each complete rotation of its thimble? - Answer 0.025 Company standards determine how often ______ is performed. - Answer calibration of surface finish gaues The dial indicator makes measurements using the ______ method. - Answer indirect comparison The best method for checking the height of two or more parts is to use a dial indicator and stand, gauge block and a ______. - Answer surface plate A _______ is a measurement tool that measures part dimensions by indicating the amount of
