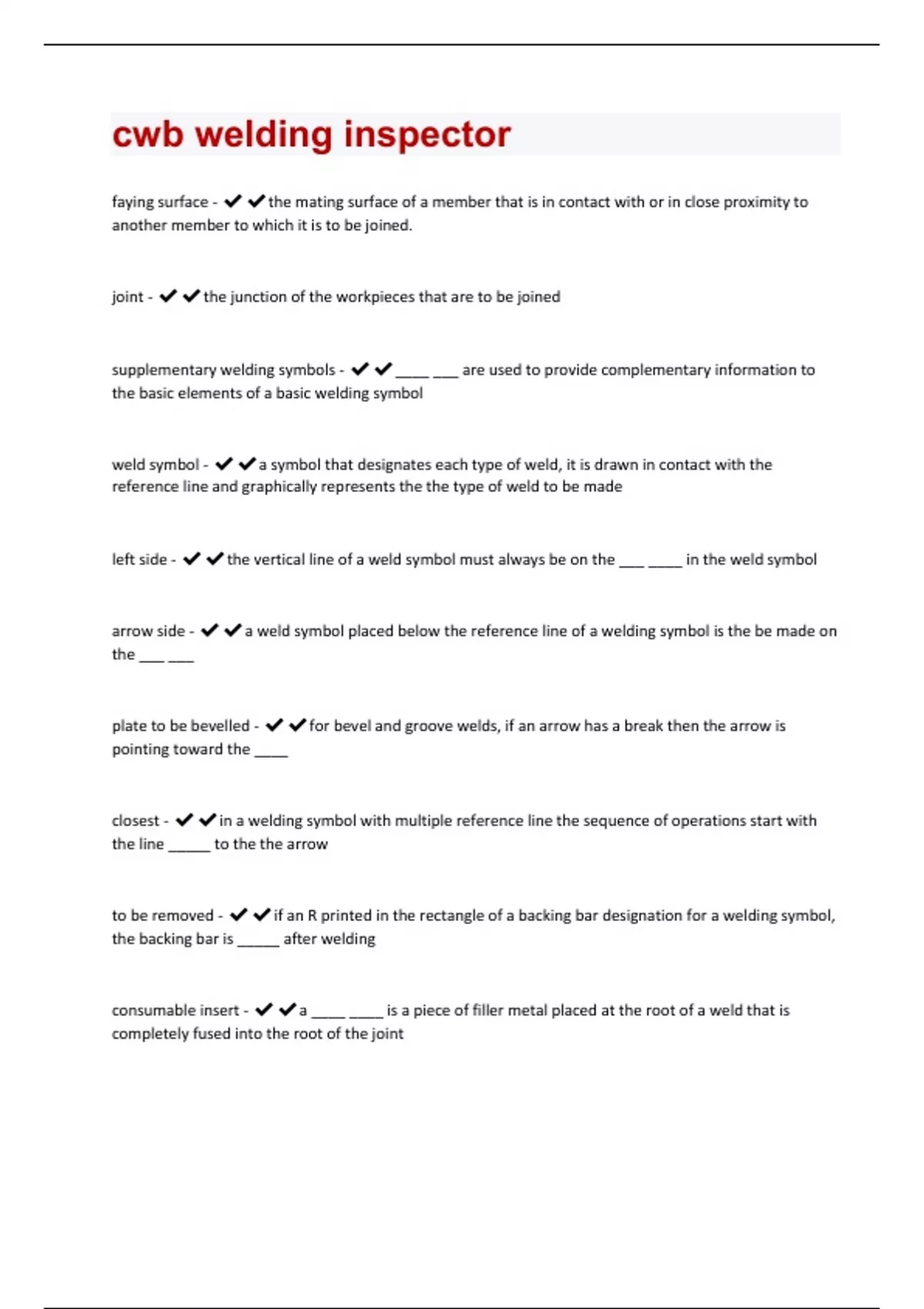

cwb welding inspector Questions With 100% Correct Answers.

faying surface - the mating surface of a member that is in contact with or in close proximity to another member to which it is to be joined. joint - the junction of the workpieces that are to be joined supplementary welding symbols - ____ ___ are used to provide complementary information to the basic elements of a basic welding symbol weld symbol - a symbol that designates each type of weld, it is drawn in contact with the reference line and graphically represents the the type of weld to be made left side - the vertical line of a weld symbol must always be on the ___ ____ in the weld symbol arrow side - a weld symbol placed below the reference line of a welding symbol is the be made on the ___ ___ plate to be bevelled - for bevel and groove welds, if an arrow has a break then the arrow is pointing toward the ____ closest - in a welding symbol with multiple reference line the sequence of operations start with the line _____ to the the arrow to be removed - if an R printed in the rectangle of a backing bar designation for a welding symbol, the backing bar is _____ after welding consumable insert - a ____ ____ is a piece of filler metal placed at the root of a weld that is completely fused into the root of the jointsquare - the symbol for a consumable insert in a welding symbol is a ____ placed on the opposite side of the reference line from the weld Gouge to sound metal - GTSM in the tail of awelding symbol means ____
