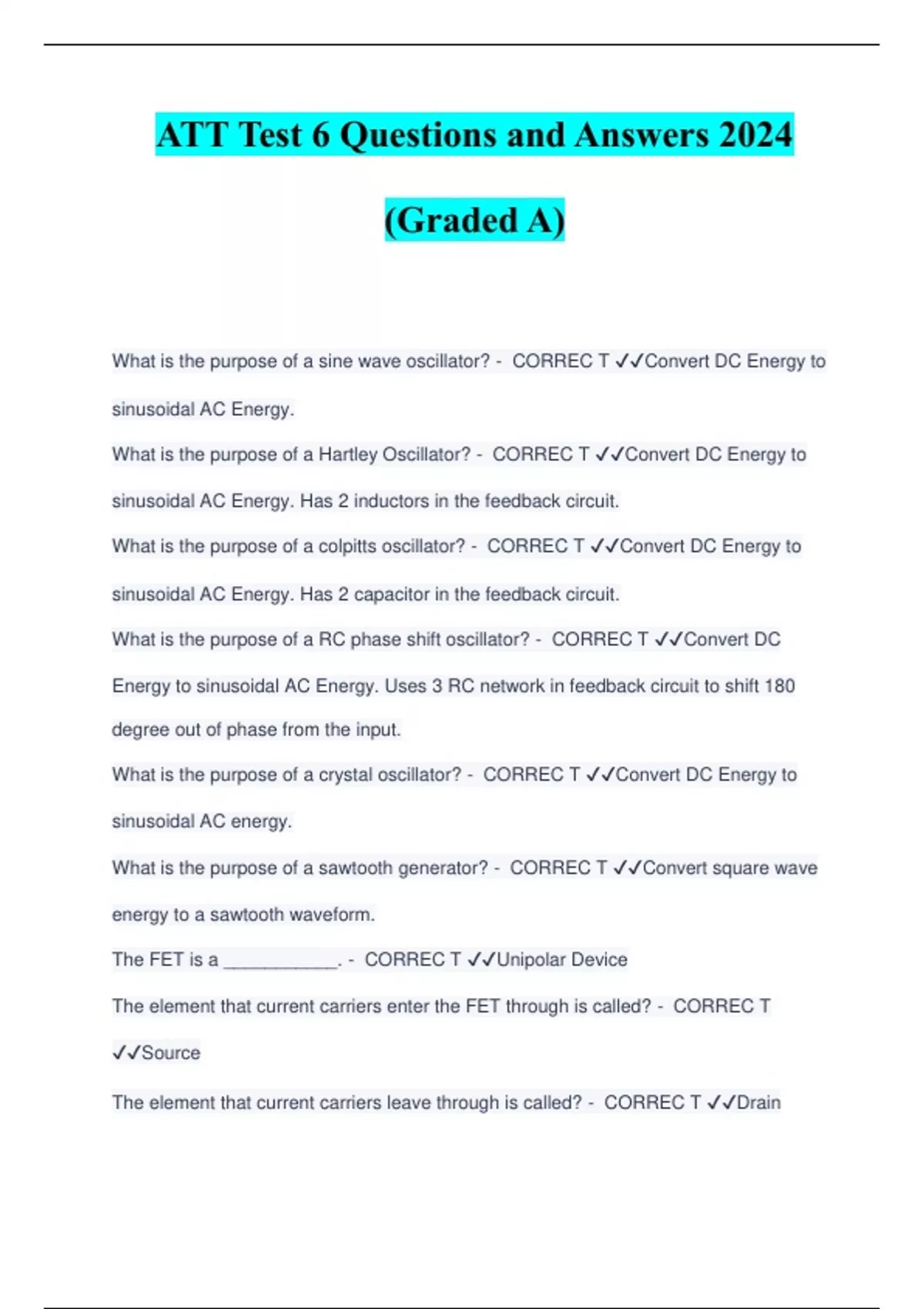

ATT Test 6 Questions and Answers 2024 (Graded A)
ATT Test 6 Questions and Answers 2024 (Graded A) What is the purpose of a sine wave oscillator? - CORREC T ️️ Convert DC Energy to sinusoidal AC Energy. What is the purpose of a Hartley Oscillator? - CORREC T ️️ Convert DC Energy to sinusoidal AC Energy. Has 2 inductors in the feedback circuit. What is the purpose of a colpitts oscillator? - CORREC T ️️ Convert DC Energy to sinusoidal AC Energy. Has 2 capacitor in the feedback circuit. What is the purpose of a RC phase shift oscillator? - CORREC T ️️ Convert DC Energy to sinusoidal AC Energy. Uses 3 RC network in feedback circuit to shift 180 degree out of phase from the input. What is the purpose of a crystal oscillator? - CORREC T ️️ Convert DC Energy to sinusoidal AC energy. What is the purpose of a sawtooth generator? - CORREC T ️️ Convert square wave energy to a sawtooth waveform. The FET is a ___________. - CORREC T ️️ Unipolar Device The element that current carriers enter the FET through is called? - CORREC T ️️ Source The element that current carriers leave through is called? - CORREC T ️️ Drain
