MSSC Quality Practices & Measurement Questions and Answers Already Passed
Preview 4 out of 40 pages

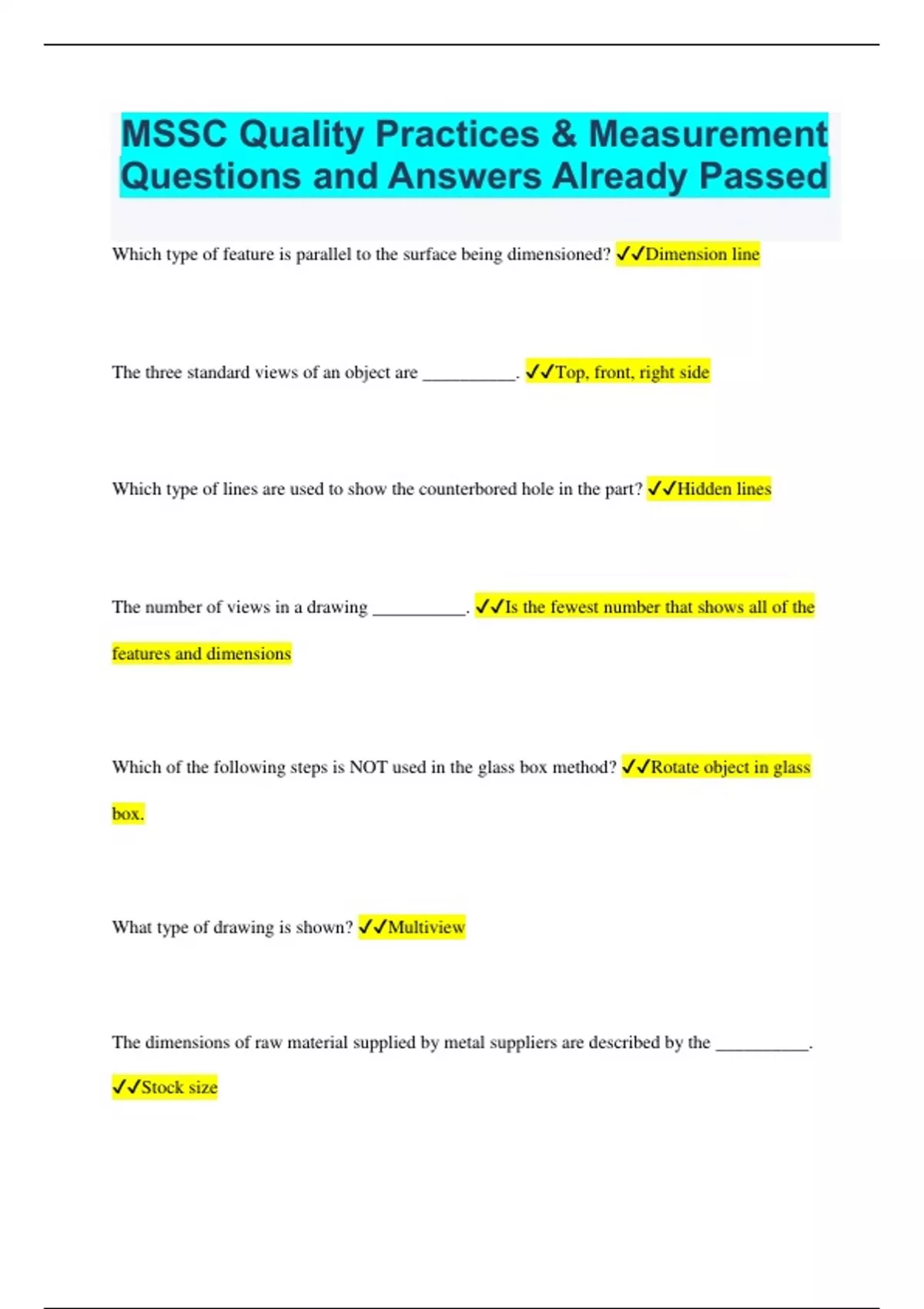

MSSC Quality Practices & Measurement Questions and Answers Already Passed Which type of feature is parallel to the surface being dimensioned? Dimension line The three standard views of an object are __________. Top, front, right side Which type of lines are used to show the counterbored hole in the part? Hidden lines The number of views in a drawing __________. Is the fewest number that shows all of the features and dimensions Which of the following steps is NOT used in the glass box method? Rotate object in glass box. What type of drawing is shown? Multiview The dimensions of raw material supplied by metal suppliers are described by the __________. Stock size
