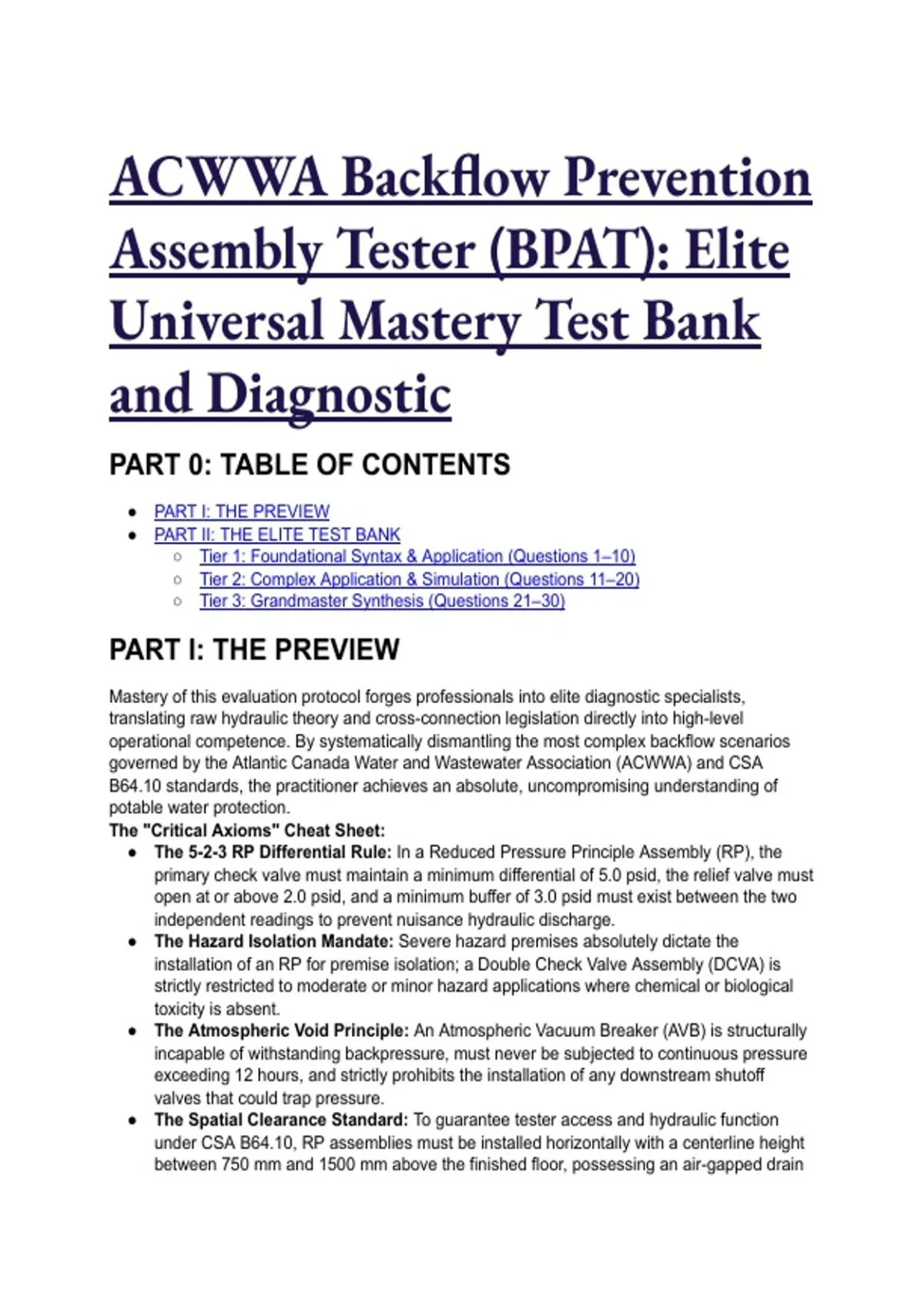

ACWWA Backflow Prevention
Assembly Tester (BPAT): Elite
Universal Mastery Test Bank
and Diagnostic
PART 0: TABLE OF CONTENTS
● PART I: THE PREVIEW
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastery of this evaluation protocol forges professionals into elite diagnostic specialists,
translating raw hydraulic theory and cross-connection legislation directly into high-level
operational competence. By systematically dismantling the most complex backflow scenarios
governed by the Atlantic Canada Water and Wastewater Association (ACWWA) and CSA
B64.10 standards, the practitioner achieves an absolute, uncompromising understanding of
potable water protection.
The "Critical Axioms" Cheat Sheet:
● The 5-2-3 RP Differential Rule: In a Reduced Pressure Principle Assembly (RP), the
primary check valve must maintain a minimum differential of 5.0 psid, the relief valve must
open at or above 2.0 psid, and a minimum buffer of 3.0 psid must exist between the two
independent readings to prevent nuisance hydraulic discharge.
● The Hazard Isolation Mandate: Severe hazard premises absolutely dictate the
installation of an RP for premise isolation; a Double Check Valve Assembly (DCVA) is
strictly restricted to moderate or minor hazard applications where chemical or biological
toxicity is absent.
● The Atmospheric Void Principle: An Atmospheric Vacuum Breaker (AVB) is structurally
incapable of withstanding backpressure, must never be subjected to continuous pressure
exceeding 12 hours, and strictly prohibits the installation of any downstream shutoff
valves that could trap pressure.
● The Spatial Clearance Standard: To guarantee tester access and hydraulic function
under CSA B64.10, RP assemblies must be installed horizontally with a centerline height
between 750 mm and 1500 mm above the finished floor, possessing an air-gapped drain
, precisely twice the pipe's diameter.
● The Certification Protocol: ACWWA Cross Connection Control Tester Certificates hold a
rigid five-year validity cycle, requiring mandatory recertification and uncompromised
annual calibration of all differential pressure gauges to ensure ongoing legal and
metrological compliance.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application (Questions 1–10)
Q1: A commercial facility manager hires a newly certified ACWWA technician to perform annual
testing on a premise isolation assembly. During the administrative review, the facility manager
requests confirmation regarding the legal validity duration of the technician's ACWWA Cross
Connection Control Tester Certificate. Based on ACWWA administrative mandates, which
statement regarding certification is the MOST ACCURATE? A) The certification remains valid
indefinitely, provided the tester calibrates their differential gauge annually and submits proof to
the local municipal authority. B) The certification is valid for a period of exactly three years, after
which the tester must submit a continuing education log for an administrative renewal. C) The
certification is valid for a strict five-year period, requiring the tester to successfully complete a
recognized recertification course at the end of this term. D) The certification is governed locally
and expires exclusively when the tester's accompanying provincial plumbing or sprinkler fitting
license expires.
● Answer: C (The certification is valid for a strict five-year period, requiring the tester to
successfully complete a recognized recertification course at the end of this term.)
● Distractor Analysis:
○ A is incorrect: Indefinite certification represents a severe legacy misconception.
Industry standards mandate periodic knowledge reassessment to account for
evolving CSA B64.10 and AWWA codes, rendering lifetime certificates legally
invalid.
○ B is incorrect: While three-year continuing education cycles exist in peripheral
trades or other jurisdictions, ACWWA explicitly dictates a five-year validity timeline
for the Cross Connection Control credential.
○ D is incorrect: Although holding a plumbing or sprinkler certificate is frequently a
prerequisite for a General Tester license, the ACWWA Cross Connection Control
Tester Certificate operates entirely on its own independent five-year expiration
cycle.
The Mentor's Analysis: Regulatory compliance forms the absolute baseline of backflow
prevention architecture. A tester operating with an expired certificate instantly voids the legal
standing of the test, exposing the municipality and the facility to severe liability. By maintaining
the five-year recertification rhythm, the industry ensures all practitioners remain aligned with
updated CSA B64.10 guidelines. Professional/Academic Intuition: An invalid certificate
invalidates the test; ACWWA dictates a non-negotiable five-year lifespan for all
cross-connection credentials.
Q2: A technician is conducting a field test on a Reduced Pressure Principle Assembly (RP)
protecting a chemical mixing plant. During the relief valve operational test, the technician slowly
opens the low-bleed valve on the differential gauge. To satisfy CSA B64.10 and ACWWA testing
protocols, what is the ABSOLUTE MINIMUM differential pressure at which the relief valve must
, begin to visibly discharge? A) 1.0 psid B) 2.0 psid C) 3.0 psid D) 5.0 psid
● Answer: B (2.0 psid)
● Distractor Analysis:
○ A is incorrect: The 1.0 psid metric is the minimum holding requirement for the
internal check valves within a DCVA, not the relief valve opening point of an RP
assembly.
○ C is incorrect: The 3.0 psid threshold represents the minimum required
mathematical buffer between the #1 check valve reading and the relief valve
opening point, but it does not represent the legal minimum limit for the relief valve
itself.
○ D is incorrect: The 5.0 psid threshold is the required minimum differential pressure
across the #1 check valve, representing a distinct structural metric entirely separate
from the relief valve actuation point.
The Mentor's Analysis: The relief valve acts as the fail-safe mechanical barrier between
contaminated downstream water and the potable supply zone. It must actuate and vent to the
atmosphere long before the pressure in the zone of reduced pressure equals the supply
pressure. The 2.0 psid threshold guarantees a safe margin of hydraulic dominance.
Professional/Academic Intuition: The RP relief valve must always open at or above 2.0
psid to maintain the absolute integrity of the reduced pressure zone.
Q3: An engineering consultant is designing a potable water distribution layout for a commercial
laundry facility classified as a severe hazard. The design includes an Atmospheric Vacuum
Breaker (AVB) positioned immediately upstream of a highly restricted chemical dispenser.
Based on the hydraulic constraints of the AVB, why is this design FUNDAMENTALLY
FLAWED? A) An AVB is physically incapable of mitigating severe hazards and is exclusively
relegated by code to minor hazard applications. B) The AVB utilizes an internally loaded check
valve that creates excessive friction loss, ultimately starving the chemical dispenser of
necessary operational flow. C) An AVB is not rated for continuous pressure exceeding 12 hours
and cannot safely accommodate any downstream shutoff valves or flow restrictions. D) The
installation requires a 12-inch vertical clearance above the highest downstream point, which is
mathematically impossible in a standard ceiling grid layout.
● Answer: C (An AVB is not rated for continuous pressure exceeding 12 hours and cannot
safely accommodate any downstream shutoff valves or flow restrictions.)
● Distractor Analysis:
○ A is incorrect: An AVB is legally permitted for high hazard (severe) situations,
provided the hydraulic hazard is strictly limited to back-siphonage with zero
potential for backpressure.
○ B is incorrect: An AVB does not contain an internally spring-loaded check valve; it
relies entirely on a gravity-operated float disc to seal the atmospheric vent when
pressurized.
○ D is incorrect: The critical level clearance for an AVB is 6 inches above the highest
downstream piping, whereas the 12-inch parameter applies specifically to Pressure
Vacuum Breakers (PVB) under specific international codes.
The Mentor's Analysis: The AVB operates solely on the physics of gravity. If a downstream
valve is closed, or if the system remains pressurized indefinitely, the device becomes trapped
under continuous pressure, causing the float disc to permanently fuse to the air inlet canopy.
Should a back-siphonage event occur, the seized disc will fail to drop, pulling lethal
contaminants directly into the potable supply. Professional/Academic Intuition: An AVB's
Achilles heel is continuous pressure; it must breathe, mandating zero downstream
