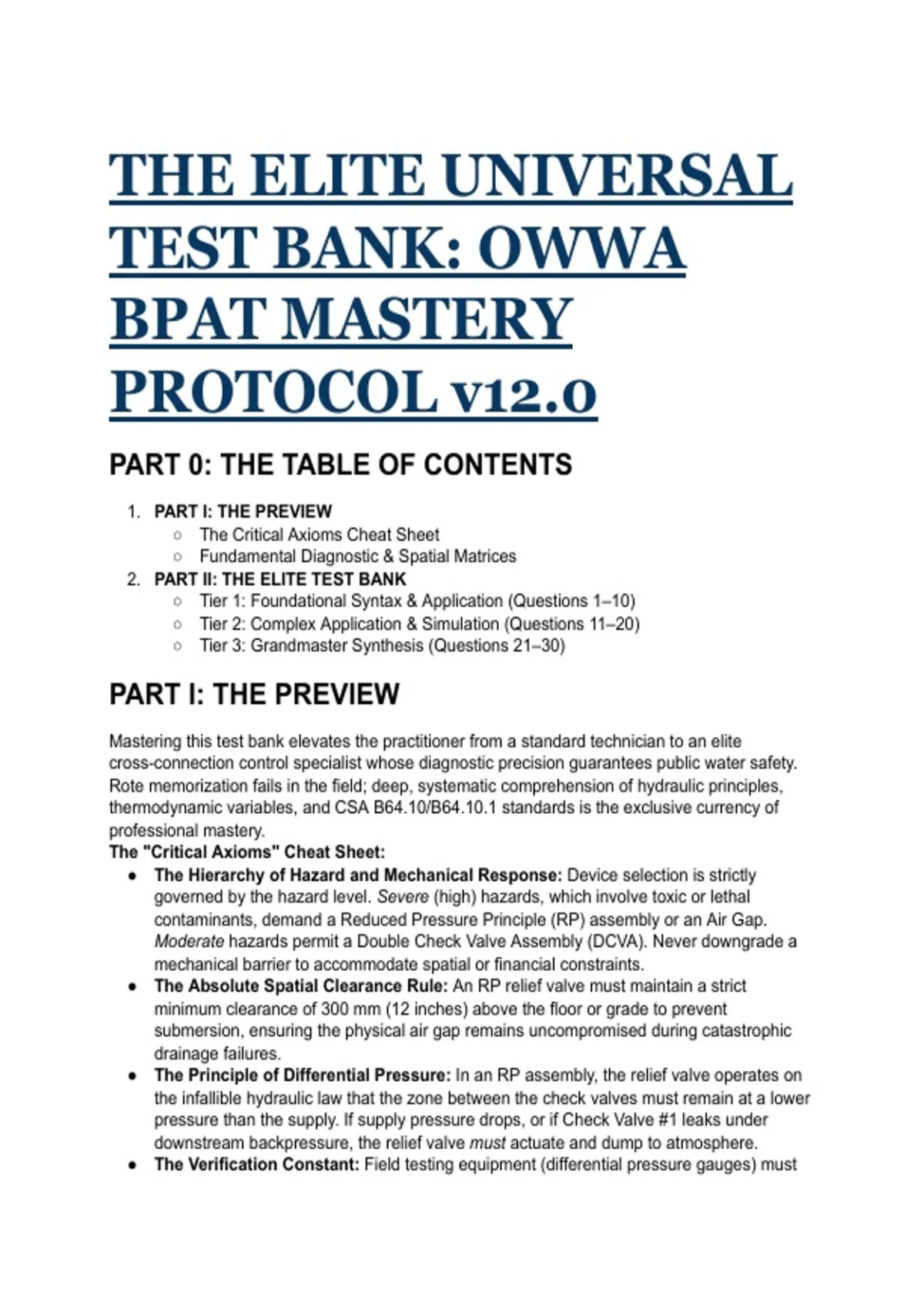

THE ELITE UNIVERSAL
TEST BANK: OWWA
BPAT MASTERY
PROTOCOL v12.0
PART 0: THE TABLE OF CONTENTS
1. PART I: THE PREVIEW
○ The Critical Axioms Cheat Sheet
○ Fundamental Diagnostic & Spatial Matrices
2. PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastering this test bank elevates the practitioner from a standard technician to an elite
cross-connection control specialist whose diagnostic precision guarantees public water safety.
Rote memorization fails in the field; deep, systematic comprehension of hydraulic principles,
thermodynamic variables, and CSA B64.10/B64.10.1 standards is the exclusive currency of
professional mastery.
The "Critical Axioms" Cheat Sheet:
● The Hierarchy of Hazard and Mechanical Response: Device selection is strictly
governed by the hazard level. Severe (high) hazards, which involve toxic or lethal
contaminants, demand a Reduced Pressure Principle (RP) assembly or an Air Gap.
Moderate hazards permit a Double Check Valve Assembly (DCVA). Never downgrade a
mechanical barrier to accommodate spatial or financial constraints.
● The Absolute Spatial Clearance Rule: An RP relief valve must maintain a strict
minimum clearance of 300 mm (12 inches) above the floor or grade to prevent
submersion, ensuring the physical air gap remains uncompromised during catastrophic
drainage failures.
● The Principle of Differential Pressure: In an RP assembly, the relief valve operates on
the infallible hydraulic law that the zone between the check valves must remain at a lower
pressure than the supply. If supply pressure drops, or if Check Valve #1 leaks under
downstream backpressure, the relief valve must actuate and dump to atmosphere.
● The Verification Constant: Field testing equipment (differential pressure gauges) must
, be verified for calibration at least annually using NIST or AWWA-traceable standards. An
uncalibrated gauge renders a legal test report void and leaves the municipal grid
vulnerable.
● Isolation Paradigms: Premise Isolation protects the municipal grid from the building's
internal network. Zone Isolation protects the building's potable grid from a specific
hazardous wing. Fixture Isolation protects the user at the exact point of use.
Fundamental Diagnostic & Spatial Matrices
Hazard Classification Contaminant Profile Permissible Premise Isolation
Devices (CSA B64.10)
Severe (High) Toxic (e.g., sewage, glycol, Reduced Pressure Principle
pesticides, biological waste). (RP), Air Gap
Gosselin rating 2+
Moderate Non-toxic but aesthetically Double Check Valve Assembly
objectionable (e.g., food (DCVA), RP, Air Gap
processing, stagnant water)
Minor (Low) Nuisance (e.g., standard Dual Check Valve (DuC),
residential domestic lines) DCVA, RP, Air Gap
System Test Pressure Required Gauge Increment Diagnostic Application
Resolution
\le 10 psi (69 kPa) Maximum 0.10 psi (0.69 kPa) Specialized low-pressure
diagnostics
> 10 psi to 100 psi Maximum 1.0 psi (6.89 kPa) Standard RP and DCVA field
testing
> 100 psi (690 kPa) Maximum 2.0 psi (13.8 kPa) High-pressure industrial/fire line
testing
Device Type Minimum Floor Maximum Floor Minimum Wall
Clearance Clearance Clearance
RP Assembly 300 mm (12 inches) 1500 mm (60 inches) 300 mm (12 inches)
from relief valve
DCVA 300 mm (12 inches) 1500 mm (60 inches) 300 mm (12 inches)
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A commercial facility operates a closed-loop hydronic heating boiler system. The facility
management recently introduced an ethylene glycol-based anti-freeze into the boiler to prevent
winter freezing. Based on the principles of CSA B64.10 hazard classification, which backflow
prevention upgrade is IMMEDIATELY required at the potable water make-up line? A) Replace
the existing device with a Dual Check Valve with Atmospheric Port (DCAP) to vent excess
pressure. B) Install a Double Check Valve Assembly (DCVA) to isolate the moderate boiler
pressure from the supply. C) Install a Reduced Pressure Principle (RP) backflow preventer or an
approved Air Gap. D) Install an Atmospheric Vacuum Breaker (AVB) at the highest piping
, elevation.
● Answer: C (Install a Reduced Pressure Principle (RP) backflow preventer or an approved
Air Gap.)
● Distractor Analysis:
○ A is incorrect: A DCAP is acceptable for low-hazard boilers without chemical
additives. The introduction of ethylene glycol—an essentially toxic transfer fluid with
a Gosselin rating of 2 or higher—elevates the hazard to severe, strictly invalidating
the DCAP.
○ B is incorrect: A DCVA provides adequate backpressure protection but is explicitly
prohibited for severe health hazards, as it lacks a failsafe atmospheric vent.
○ D is incorrect: An AVB cannot protect against backpressure, which is a constant
inherent to closed-loop boiler systems, and is not rated for severe hazards under
continuous pressure.
The Mentor's Analysis: Toxicity dictates the mechanical response. Ethylene glycol carries a
chemical toxicity profile that immediately flags the system as a severe health hazard. When a
system crosses the threshold from non-toxic to toxic, the mechanical barrier must upgrade to an
RP or an Air Gap to ensure any failure dumps to atmosphere rather than into the potable grid.
By utilizing Severe Hazard Premise/Fixture Isolation, you bypass the common trap of assuming
all boilers require identical protection regardless of their thermodynamic transfer fluids.
Professional/Academic Intuition: The fluid dictates the fixture. Toxic additives
immediately mandate RP or Air Gap protection, regardless of operating pressure.
Q2: A certified BPAT is preparing to conduct an annual field test on a Double Check Valve
Assembly (DCVA) in an institutional setting. According to universal B64.10.1 testing protocols,
what is the MAXIMUM allowable interval for the calibration verification of the differential
pressure gauge used for this test? A) Semi-annually (every 6 months) to account for regular
mechanical wear. B) Prior to every test if the gauge has been transported in a commercial
vehicle. C) Annually (within a 12-month period) traceable to a national standard. D) Every 5
years, coinciding with the mandatory internal rebuild of check modules.
● Answer: C (Annually (within a 12-month period) traceable to a national standard.)
● Distractor Analysis:
○ A is incorrect: While frequent calibration is an excellent internal quality control
practice, the rigid legal and code standard is annual verification; requiring it every
six months is not universally mandated by CSA or AWWA.
○ B is incorrect: Transporting a gauge requires care to avoid shocking the
diaphragms, but formal calibration before every test is practically impossible and
unsupported by the standard.
○ D is incorrect: Five years is the recommended maintenance cycle for certain
elastomer replacements within the assemblies themselves, not gauge calibration.
The Mentor's Analysis: The validity of a backflow test rests entirely on the integrity of the
diagnostic tool. A differential pressure gauge is a highly sensitive precision instrument; its
internal diaphragms and coiled springs drift over time due to pressure spikes and environmental
extremes. By utilizing Annual NIST/AWWA-traceable Calibration, you bypass the common trap
of submitting legally void test reports. If the gauge is uncalibrated, the test never happened in
the eyes of the law. Professional/Academic Intuition: An uncalibrated gauge is a blind
inspector. Annual traceable calibration is the absolute legal hard-deck for test validity.
Q3: During the rough-in phase of a new industrial facility, a plumbing contractor is installing a
Reduced Pressure Principle (RP) backflow preventer for premise isolation. To comply with CSA
B64.10 installation standards, what is the MINIMUM required vertical clearance from the bottom
