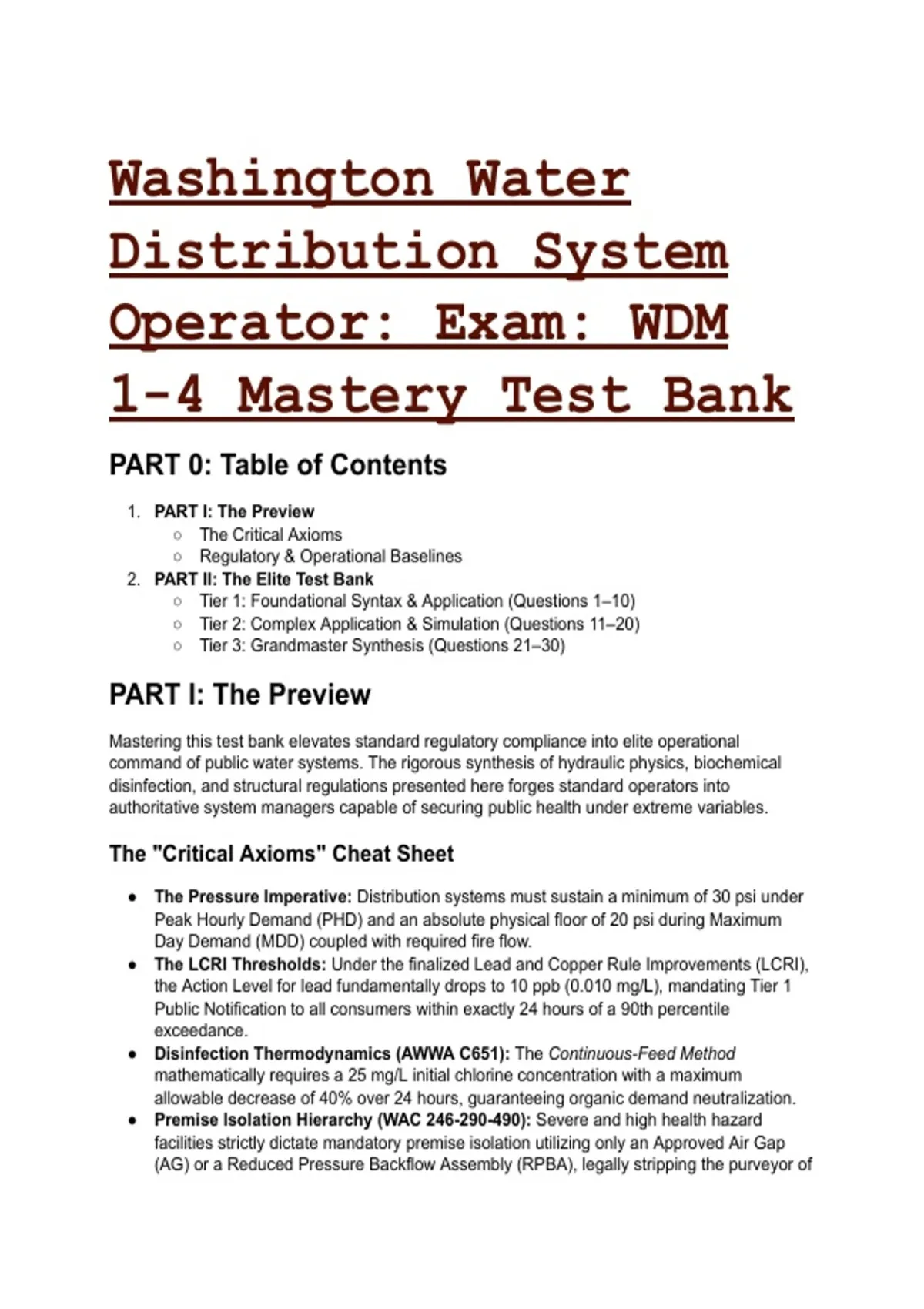

Washington Water
Distribution System
Operator: Exam: WDM
1-4 Mastery Test Bank
PART 0: Table of Contents
1. PART I: The Preview
○ The Critical Axioms
○ Regulatory & Operational Baselines
2. PART II: The Elite Test Bank
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: The Preview
Mastering this test bank elevates standard regulatory compliance into elite operational
command of public water systems. The rigorous synthesis of hydraulic physics, biochemical
disinfection, and structural regulations presented here forges standard operators into
authoritative system managers capable of securing public health under extreme variables.
The "Critical Axioms" Cheat Sheet
● The Pressure Imperative: Distribution systems must sustain a minimum of 30 psi under
Peak Hourly Demand (PHD) and an absolute physical floor of 20 psi during Maximum
Day Demand (MDD) coupled with required fire flow.
● The LCRI Thresholds: Under the finalized Lead and Copper Rule Improvements (LCRI),
the Action Level for lead fundamentally drops to 10 ppb (0.010 mg/L), mandating Tier 1
Public Notification to all consumers within exactly 24 hours of a 90th percentile
exceedance.
● Disinfection Thermodynamics (AWWA C651): The Continuous-Feed Method
mathematically requires a 25 mg/L initial chlorine concentration with a maximum
allowable decrease of 40% over 24 hours, guaranteeing organic demand neutralization.
● Premise Isolation Hierarchy (WAC 246-290-490): Severe and high health hazard
facilities strictly dictate mandatory premise isolation utilizing only an Approved Air Gap
(AG) or a Reduced Pressure Backflow Assembly (RPBA), legally stripping the purveyor of
, discretion.
● HAZMAT Containment Protocols: The Chlorine Institute Emergency Kit "A" secures
100/150 lb cylinders (DOT 3A480), Kit "B" secures one-ton containers (DOT 106A500X),
and Kit "C" secures rail tank cars (DOT 105J500W).
Parameter Legacy Standard Modern Elite Standard
(Current)
Lead Action Level 15 ppb (0.015 mg/L) 10 ppb (0.010 mg/L)
Lead Public Notice 30 Days (Standard) 24 Hours (Tier 1 Emergency)
Minimum Fire Flow Pressure Variable by local code 20 psi Absolute Minimum
High-Hazard Isolation DCVA or In-Premise allowed RPBA or AG strictly at the
meter
PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: A newly installed 8-inch ductile iron water main requires disinfection before being placed
into active service. The operating authority elects to utilize the Continuous-Feed Method as
outlined in AWWA C651. Based on the principles of AWWA C651 Main Disinfection, which
action/conclusion is the MOST ACCURATE? A) The initial chlorine concentration must reach 50
mg/L and remain untouched for 48 hours to ensure complete pathogen eradication. B) The
initial chlorine concentration must be at least 25 mg/L, and after a 24-hour contact period, the
concentration must not decrease by more than 40% or fall below a maximum of 50 mg/L. C) The
main must be filled with a 100 mg/L chlorine solution, which is retained for exactly 3 hours
before high-velocity flushing. D) The initial chlorine concentration is set at 10 mg/L, provided the
water temperature exceeds 15 degrees Celsius for 24 hours.
● Answer: B (The initial chlorine concentration must be at least 25 mg/L, and after a
24-hour contact period, the concentration must not decrease by more than 40% or fall
below a maximum of 50 mg/L.)
● Distractor Analysis:
○ A is incorrect: A 50 mg/L initial dose over 48 hours represents an obsolete
interpretation of legacy guidelines, not current AWWA C651 Continuous-Feed
parameters.
○ C is incorrect: The 100 mg/L dosage held for exactly 3 hours perfectly describes the
Slug Method, not the Continuous-Feed Method.
○ D is incorrect: A 10 mg/L initial concentration is severely under-dosed and fails to
meet the 25 mg/L baseline mandated to overcome the biological oxygen demand
(BOD) inside a newly constructed pipe.
The Mentor's Analysis: The Continuous-Feed Method relies on a precise initial dosage and a
maximum allowable degradation limit to scientifically verify that organic demand within the new
pipe has been neutralized. By utilizing ANSI/AWWA Standard C651, the operator guarantees
structural disinfection without causing excessive oxidative degradation to the pipe wall.
Professional/Academic Intuition: A 25 mg/L initial dose with a maximum 40% degradation
over 24 hours defines the mathematical baseline for Continuous-Feed disinfection
success.
Q2: A distribution system manager prepares to implement a lead service line replacement
(LSLR) program under the finalized Lead and Copper Rule Improvements (LCRI). Based on the
principles of the Safe Drinking Water Act and Washington DOH regulations, which
, action/conclusion is the MOST ACCURATE? A) The system must wait for the 90th percentile to
reach 15 ppb before conducting an initial service line inventory of the public and private sectors.
B) The system must issue a Tier 1 Public Notice within 24 hours only if copper levels
simultaneously exceed 1.3 mg/L alongside lead exceedances. C) The system must provide a
Tier 1 Public Notice to all customers within 24 hours of learning that the 90th percentile of lead
tap samples exceeds the revised action level. D) Galvanized lines are permanently exempt from
the inventory requirements unless they are currently located upstream of a known lead service
line.
● Answer: C (The system must provide a Tier 1 Public Notice to all customers within 24
hours of learning that the 90th percentile of lead tap samples exceeds the revised action
level.)
● Distractor Analysis:
○ A is incorrect: Initial service line inventories were universally mandated by October
16, 2024, regardless of current 90th percentile analytical results.
○ B is incorrect: Lead action level exceedances trigger Tier 1 notifications
independently; they are absolutely not contingent upon concurrent copper action
level exceedances.
○ D is incorrect: Galvanized lines that are currently or ever were downstream of lead
or unknown service lines are classified as "Galvanized Requiring Replacement"
(GRR) and are strictly mandated for inventory inclusion and replacement planning.
The Mentor's Analysis: The LCRI structurally shifts lead exceedances from a chronic,
long-term administrative issue into an acute public health emergency requiring immediate mass
communication. By utilizing Tier 1 Public Notification, regulatory bodies bypass the historical
trap of delayed consumer awareness regarding neurotoxin exposure. Professional/Academic
Intuition: An Action Level exceedance for lead (now strictly 10 ppb) demands Tier 1
Public Notification within exactly 24 hours of laboratory confirmation.
Q3: During hydraulic modeling for a new residential subdivision, a consulting engineer
evaluates the baseline capacity of the existing infrastructure. Based on the principles of WAC
246-290-230 Distribution Systems, which action/conclusion is the MOST ACCURATE? A) The
system must structurally provide a minimum pressure of 20 psi at all service meters during Peak
Hourly Demand (PHD) conditions. B) The system must be designed to deliver Peak Hourly
Demand (PHD) at a minimum of 30 psi measured at all existing and proposed service water
meters. C) Individual booster pumps owned by the utility can be used permanently for all new
subdivisions to meet the 30 psi requirement. D) The minimum diameter of all new distribution
mains shall be four inches unless specifically justified by hydraulic modeling for larger capacity.
● Answer: B (The system must be designed to deliver Peak Hourly Demand (PHD) at a
minimum of 30 psi measured at all existing and proposed service water meters.)
● Distractor Analysis:
○ A is incorrect: 20 psi is the absolute minimum allowed during fire flow plus
Maximum Day Demand (MDD), not normal Peak Hourly Demand (PHD) operations.
○ C is incorrect: Individual booster pumps are statutorily intended strictly as interim
solutions for existing systems with deficiencies, not as permanent design baselines
for new construction.
○ D is incorrect: The statutory minimum diameter for distribution mains is six inches,
not four inches, unless a smaller size is specifically justified hydraulically (and fire
flow is not required).
The Mentor's Analysis: System pressure acts as the primary physical barrier against mass
contamination via backsiphonage. When facing hydraulic design parameters, the immediate
