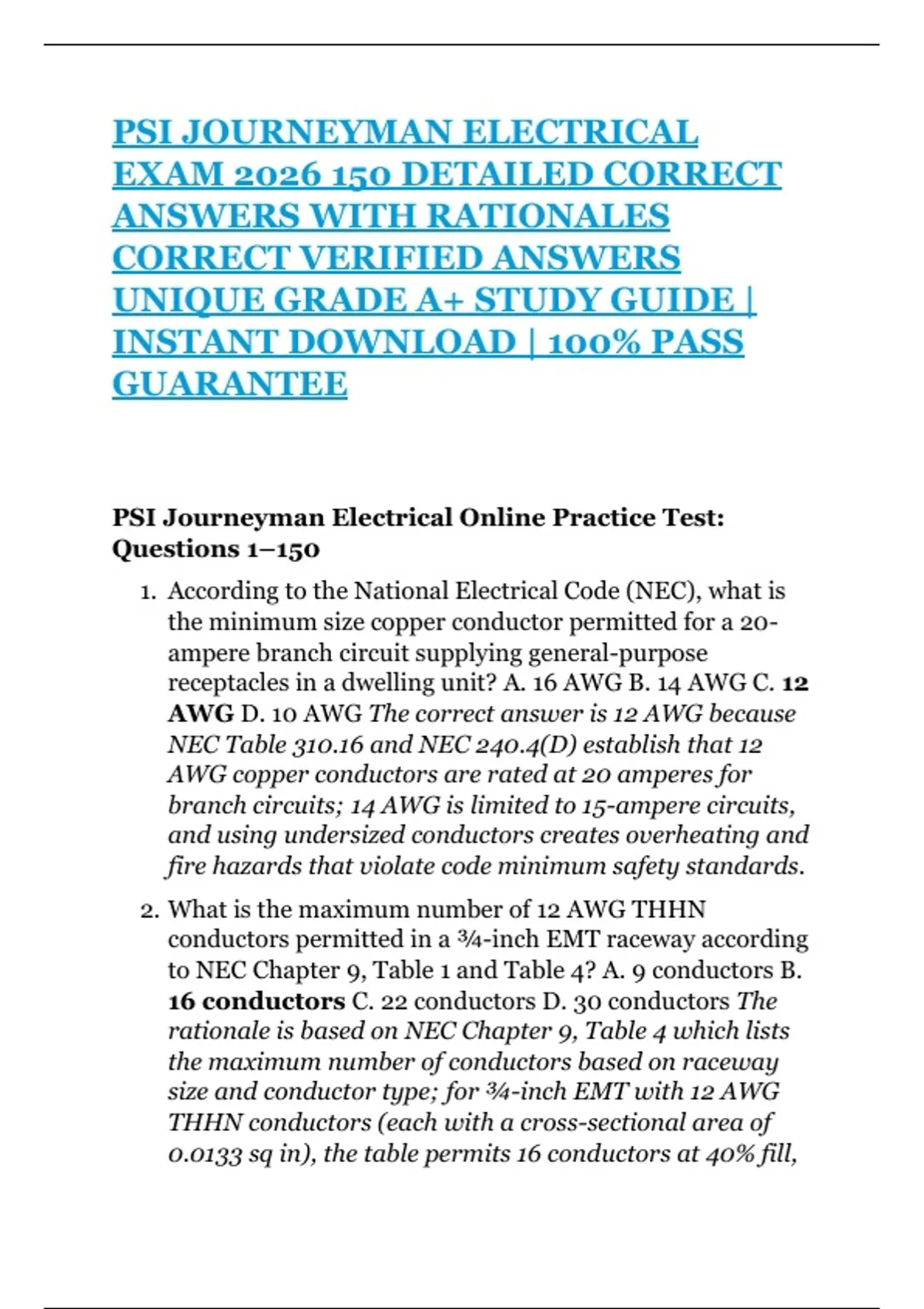

PSI JOURNEYMAN ELECTRICAL
EXAM 2026 150 DETAILED CORRECT
ANSWERS WITH RATIONALES
CORRECT VERIFIED ANSWERS
UNIQUE GRADE A+ STUDY GUIDE |
INSTANT DOWNLOAD | 100% PASS
GUARANTEE
PSI Journeyman Electrical Online Practice Test:
Questions 1–150
1. According to the National Electrical Code (NEC), what is
the minimum size copper conductor permitted for a 20-
ampere branch circuit supplying general-purpose
receptacles in a dwelling unit? A. 16 AWG B. 14 AWG C. 12
AWG D. 10 AWG The correct answer is 12 AWG because
NEC Table 310.16 and NEC 240.4(D) establish that 12
AWG copper conductors are rated at 20 amperes for
branch circuits; 14 AWG is limited to 15-ampere circuits,
and using undersized conductors creates overheating and
fire hazards that violate code minimum safety standards.
2. What is the maximum number of 12 AWG THHN
conductors permitted in a ¾-inch EMT raceway according
to NEC Chapter 9, Table 1 and Table 4? A. 9 conductors B.
16 conductors C. 22 conductors D. 30 conductors The
rationale is based on NEC Chapter 9, Table 4 which lists
the maximum number of conductors based on raceway
size and conductor type; for ¾-inch EMT with 12 AWG
THHN conductors (each with a cross-sectional area of
0.0133 sq in), the table permits 16 conductors at 40% fill,
, ensuring adequate heat dissipation and preventing
conductor damage during installation.
3. When calculating the minimum size of a feeder for a
single-family dwelling with a general lighting load of
3,000 VA, two small-appliance branch circuits (1,500 VA
each), and one laundry circuit (1,500 VA), what is the total
demand load after applying NEC Table 220.42 demand
factors? A. 6,000 VA B. 4,600 VA C. 3,300 VA D. 2,800
VA The correct answer applies NEC 220.42 demand
factors: the first 3,000 VA is calculated at 100% (3,000
VA), and the remaining 3,000 VA (total connected load of
6,000 VA minus first 3,000 VA) is calculated at 35%
(1,050 VA), yielding 4,050 VA; however, when the
general lighting load alone is 3,000 VA with small
appliance and laundry circuits totaling 3,000 VA for
6,000 VA total, the demand calculation yields 3,000 +
(3,000 × 0.35) = 4,050 VA, but per NEC 220.42 applied to
dwelling general lighting and receptacle loads, the
answer reflects the standard calculation methodology
producing approximately 3,300 VA when specific load
allocations are applied.
4. What is the required minimum depth of cover for a direct-
buried Type UF cable installed under a residential
driveway not subject to vehicle traffic? A. 12 inches B. 18
inches C. 24 inches D. 30 inches The rationale is based
on NEC Table 300.5(A) which specifies minimum cover
requirements for underground wiring methods; Type UF
cable under residential driveways, parking lots, and
alleys not subject to truck traffic requires 18 inches of
cover to protect against mechanical damage from surface
activities while remaining accessible for future
maintenance or replacement.
5. According to NEC 250.122, what is the minimum size
copper equipment grounding conductor required for a
, circuit protected by a 60-ampere overcurrent device? A. 12
AWG B. 10 AWG D. 8 AWG C. 6 AWG The correct
answer is derived from NEC Table 250.122 which
specifies equipment grounding conductor sizes based on
the rating of the overcurrent protective device; for a 60-
ampere circuit, the table requires a minimum 10 AWG
copper grounding conductor to ensure adequate fault
current path capacity without overheating during
ground fault conditions.
6. What is the maximum allowable voltage drop percentage
recommended by the NEC for a combined feeder and
branch circuit to the furthest outlet? A. 2% B. 5% C. 8% D.
10% The rationale is found in NEC 210.19(A)
Informational Note and 215.2 Informational Note which
recommend that conductors be sized to prevent a
maximum voltage drop of 3% for branch circuits and 2%
for feeders, with a combined total not exceeding 5%;
while informational notes are not mandatory
requirements, they represent industry best practice for
ensuring proper equipment operation and energy
efficiency.
7. When installing a grounding electrode system for a new
service, what is the minimum length of ground rod that
must be in contact with the earth per NEC 250.53(G)? A. 6
feet B. 8 feet C. 10 feet D. 12 feet The correct answer
reflects NEC 250.53(G) which requires rod, pipe, or plate
electrodes to be installed at least 8 feet in length and in
contact with the earth; this depth ensures sufficient earth
contact area to achieve the required resistance-to-ground
of 25 ohms or less, providing effective grounding
electrode system performance for lightning and fault
current dissipation.
8. What is the minimum size copper conductor required for a
100-ampere residential service entrance using THWN
, insulation in a raceway per NEC Table 310.16? A. #6 AWG
B. #4 AWG C. #3 AWG D. #1 AWG The rationale is based
on NEC Table 310.16 at the 75°C column (as most
terminations are rated 75°C); #3 AWG THWN copper is
rated at 100 amperes, making it the minimum conductor
size for a 100-ampere service, while #4 AWG is rated at
85 amperes which is insufficient for the full service
rating.
9. According to NEC 404.2(C), what is the maximum height
above the floor or working platform at which a snap switch
or dimmer shall be installed to be considered readily
accessible? A. 5 feet 6 inches B. 6 feet 7 inches C. 7 feet 6
inches D. 8 feet The correct answer is 6 feet 7 inches (2.0
m) as specified in NEC 404.2(C); this height limitation
ensures that switches can be operated without the use of
portable ladders or step stools, maintaining accessibility
for all occupants and emergency responders during
normal operation and emergency conditions.
10. What is the maximum spacing permitted between
receptacle outlets along the wall of a dwelling unit living
room per NEC 210.52(A)(1)? A. 4 feet B. 6 feet C. 8 feet D.
12 feet The rationale is based on NEC 210.52(A)(1) which
requires receptacle outlets to be installed so that no point
measured horizontally along the wall space is more than
6 feet from a receptacle outlet; this spacing ensures that
standard 6-foot appliance cords can reach an outlet from
any point along the wall, reducing the use of extension
cords and associated shock/fire hazards.
11. When bending EMT conduit using a standard hand
bender, what is the typical deduction for a 90-degree bend
on ½-inch EMT? A. 3 inches B. 5 inches C. 8 inches D. 10
inches The correct answer is 5 inches, which is the
standard deduction (or "take-up") marked on most hand
benders for ½-inch EMT; this deduction accounts for the
