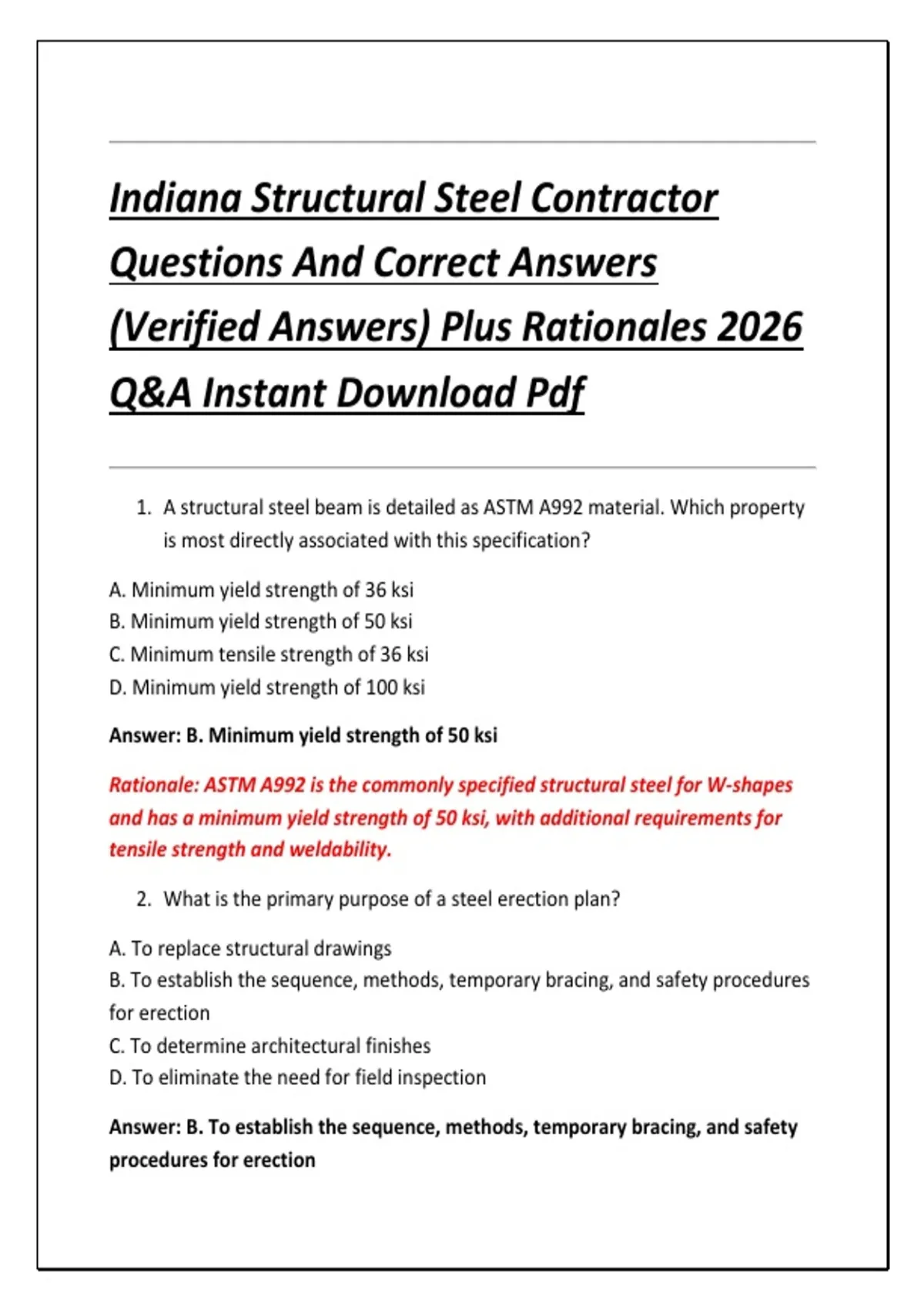

Indiana Structural Steel Contractor
Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A Instant Download Pdf
1. A structural steel beam is detailed as ASTM A992 material. Which property
is most directly associated with this specification?
A. Minimum yield strength of 36 ksi
B. Minimum yield strength of 50 ksi
C. Minimum tensile strength of 36 ksi
D. Minimum yield strength of 100 ksi
Answer: B. Minimum yield strength of 50 ksi
Rationale: ASTM A992 is the commonly specified structural steel for W-shapes
and has a minimum yield strength of 50 ksi, with additional requirements for
tensile strength and weldability.
2. What is the primary purpose of a steel erection plan?
A. To replace structural drawings
B. To establish the sequence, methods, temporary bracing, and safety procedures
for erection
C. To determine architectural finishes
D. To eliminate the need for field inspection
Answer: B. To establish the sequence, methods, temporary bracing, and safety
procedures for erection
,Rationale: An erection plan coordinates the safe handling and installation of
structural members and addresses sequencing, stability, lifting, temporary
bracing, and connections.
3. A W18×50 beam is supported on a column. The notation “50” primarily
represents what?
A. Beam depth
B. Flange width
C. Nominal weight in pounds per linear foot
D. Yield strength
Answer: C. Nominal weight in pounds per linear foot
Rationale: In a W-shape designation such as W18×50, the first number identifies
nominal depth and the second identifies nominal weight per foot.
4. What is the principal purpose of a column base plate?
A. Increase column length
B. Transfer column forces into the supporting foundation
C. Prevent all column buckling
D. Replace anchor rods
Answer: B. Transfer column forces into the supporting foundation
Rationale: Base plates distribute concentrated column loads over the supporting
concrete or foundation and provide a connection interface with anchor rods.
5. Which condition is most likely to require a thicker base plate?
A. Very low column load
B. Increased bearing pressure or large bending demands beneath the column
C. Smaller anchor rods
D. Reduced column height
Answer: B. Increased bearing pressure or large bending demands beneath the
column
,Rationale: Base-plate thickness is influenced by bearing pressure, bending,
column geometry, support conditions, and connection forces.
6. Which bolt installation condition is most appropriate for a slip-critical
connection?
A. Bolts installed finger-tight only
B. High-strength bolts pretensioned according to the applicable requirements
C. Unspecified machine bolts
D. Welded bolts
Answer: B. High-strength bolts pretensioned according to the applicable
requirements
Rationale: Slip-critical connections rely on friction between faying surfaces
developed by properly pretensioned high-strength bolts.
7. What is the main structural function of a gusset plate?
A. Provide architectural trim
B. Connect members such as braces, beams, or trusses and transfer forces
between them
C. Reduce concrete strength
D. Replace all welding
Answer: B. Connect members such as braces, beams, or trusses and transfer
forces between them
Rationale: Gusset plates provide a connection surface and transfer tension,
compression, shear, and sometimes combined forces among structural
members.
8. A beam is laterally unsupported over a long distance. Which failure mode
becomes especially important?
A. Concrete crushing
B. Lateral-torsional buckling
, C. Anchor-rod pullout only
D. Weld discoloration
Answer: B. Lateral-torsional buckling
Rationale: An inadequately braced beam subjected to bending can experience
lateral displacement and twisting before reaching its full flexural capacity.
9. What is the purpose of shear studs installed on a steel beam supporting a
composite concrete slab?
A. Prevent corrosion of the beam
B. Transfer longitudinal shear between the concrete slab and steel beam
C. Increase bolt pretension
D. Replace reinforcing steel
Answer: B. Transfer longitudinal shear between the concrete slab and steel
beam
Rationale: Headed shear connectors develop composite action by transferring
shear between the concrete slab and steel beam.
10.Which weld type is commonly used to connect a plate to the face of
another member when full joint penetration is not required?
A. Fillet weld
B. Groove weld only
C. Plug weld exclusively
D. Stud weld only
Answer: A. Fillet weld
Rationale: Fillet welds are widely used for lap, tee, and corner-type connections
where the design does not require complete joint penetration.
11.What does the effective throat of a standard 90-degree fillet weld
represent?
