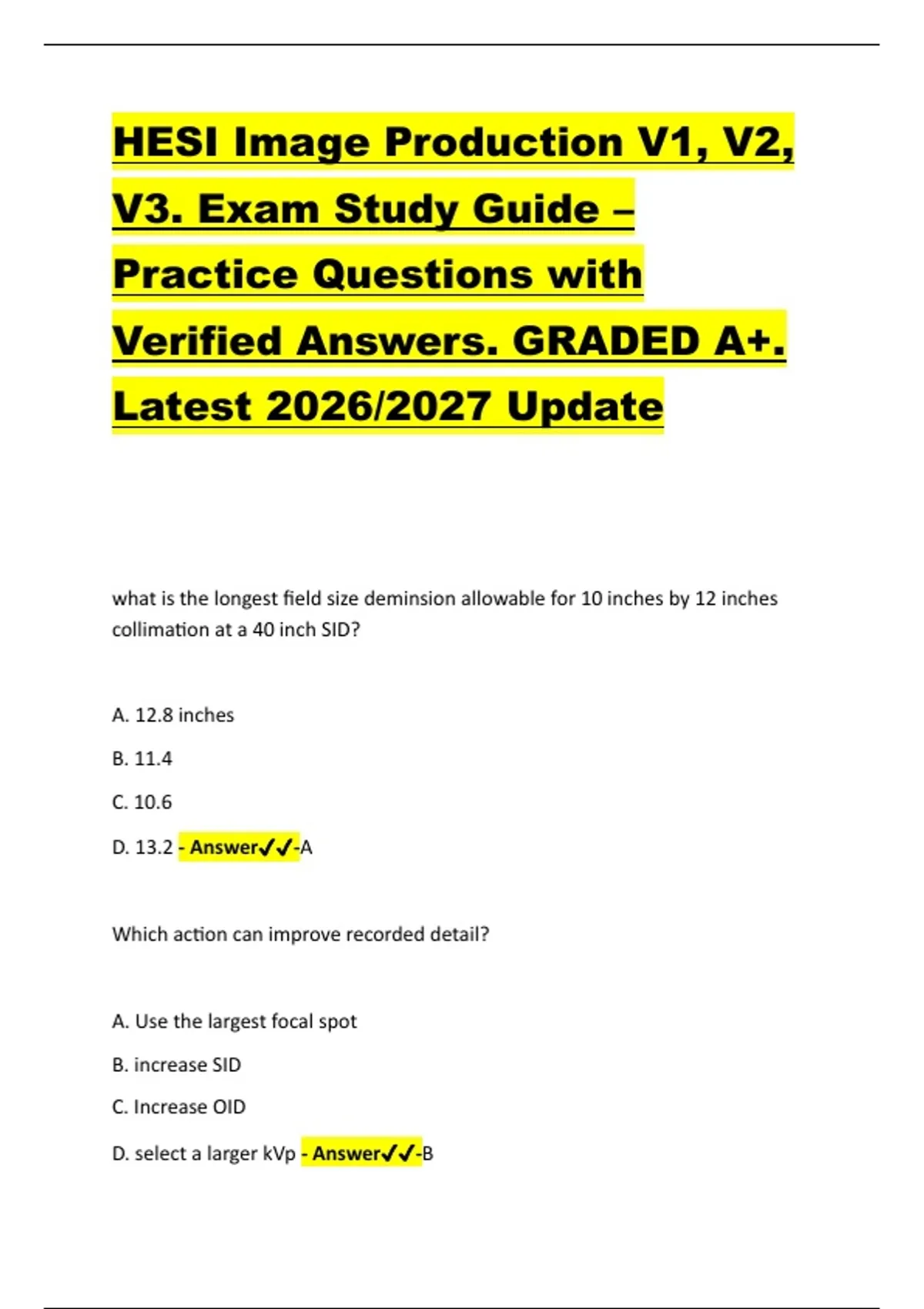

HESI Image Production V1, V2,
V3. Exam Study Guide –
Practice Questions with
Verified Answers. GRADED A+.
Latest 2026/2027 Update
what is the longest field size deminsion allowable for 10 inches by 12 inches
collimation at a 40 inch SID?
A. 12.8 inches
B. 11.4
C. 10.6
D. 13.2 - Answer✔✔-A
Which action can improve recorded detail?
A. Use the largest focal spot
B. increase SID
C. Increase OID
D. select a larger kVp - Answer✔✔-B
,The radiographer is using automatic brightness control during fluoroscopy.
what change in patient exposure should the radiographer expect as the patient
size increases?
A. No change in exposure
B. Increase in exposure
C. Indeterminant change in exposure
D. Reduction in exposure - Answer✔✔-B
PACS networks are capable of performing which functions? select 2
A. Tracking radiology scheduling info
B. tracking billing info
C. Processing Lab reports
D. Downloading images from different imaging modalities
E. Transmitting diagnostic images to remote work stations - Answer✔✔-D E
Which xray beam characteristic is reduce by adding aluminium filtration?
A. xray beam quality
B. Half value layer
C. energy of the xray beam
D. Quantity of xrays - Answer✔✔-D
,Which digital post processing results in a black background surround the
original collimated edges?
A. Beam restriction
B. Shuttering
C. Collimation
D. Subtraction - Answer✔✔-B
what is the result if pixel bit depth is decreased?
A. Spatial resolution is increased
B. Brightness is increased
C. Contrast resolution is decreased
D. Image noise is decrease - Answer✔✔-C
Which technique produces a 2 milliroentgens (mR) exposure to an image
receptor plate if 70 kvp at 25 mAs produces 1.6 mR?
A. 70 kVp at 31.25 mas
B. 70 kvp at 50 mas
C. 70 kvp at 35 mas
D. 70 kvp at 27.5 mas - Answer✔✔-A
Which technique mimics the use of a grid?
, A. Increased OID
B. Decrease SID
C. Decrease mas
Increase kvp - Answer✔✔-A
How dose the Density log Exposure curve appear for a digital imaging
receptor?
A. A straight line at a 45 degree angle
B. a shallow slope
C. a Steep slope
D. an S curve - Answer✔✔-A
Prior to performing a PA chest projection with AEC, the radiographer discovers
that the patient has had a right total pneumonectomy. which technical
consideration should be considered?
A. Selecting only the detector on the right side
B. Selecting onlu the detector on the left side
C. Selecting both out detectors
D. Selecting the center detector - Answer✔✔-B
What are the recommended uses of the digital annotation tool? Select 4
A. Labeling right or left side of anatomy
B. Entering technical factors
