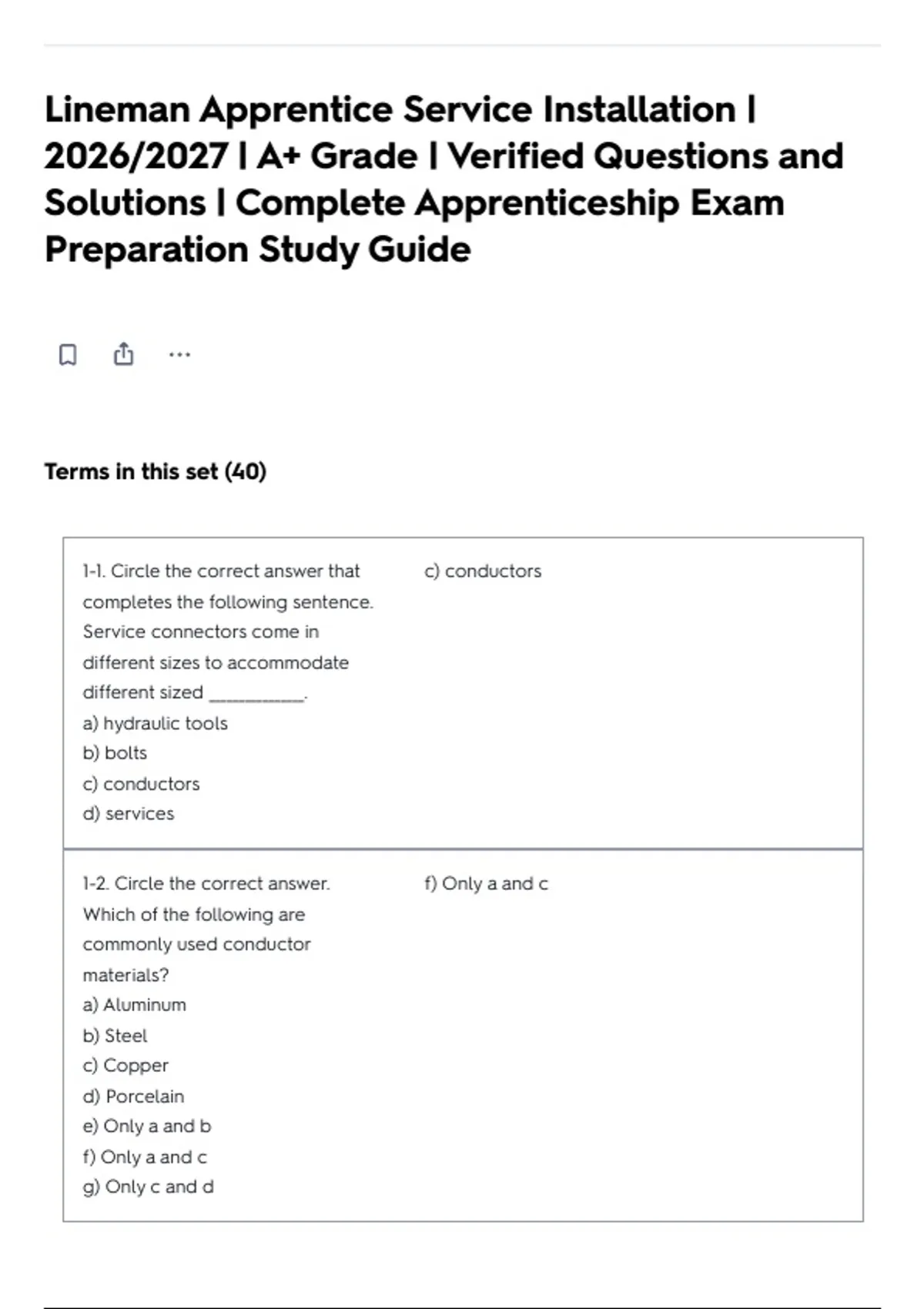

Lineman Apprentice Service Installation |
2026/2027 | A+ Grade | Verified Questions and
Solutions | Complete Apprenticeship Exam
Preparation Study Guide
Terms in this set (40)
1-1. Circle the correct answer that c) conductors
completes the following sentence.
Service connectors come in
different sizes to accommodate
different sized ________________.
a) hydraulic tools
b) bolts
c) conductors
d) services
1-2. Circle the correct answer. f) Only a and c
Which of the following are
commonly used conductor
materials?
a) Aluminum
b) Steel
c) Copper
d) Porcelain
e) Only a and b
f) Only a and c
g) Only c and d
,1-3. Circle the correct answer. f) Only a and c
Which of the following is referred
to as a 'mechanical' connector?
a) Single bolt
b) Groove bolt
c) Split bolt
d) All of the above
e) Only a and b
f) Only a and c
1-4. True or False. False
Compression connections generally
do not loosen after a period of
time, and compression connectors
may be removed and used again
and again.
1-5. True or False. False
In general, compression connectors
and mechanical connectors may be
used interchangeably to make
service connections.
, 1-6. Circle the correct answer. a) The C-body produces a spring tension
Which of the following most maintaining the connector pressure
accurately describes a wedge
connector?
a) The C-body produces a spring
tension maintaining the connector
pressure
b) The reversible wedge can be
used one direction for aluminum,
the other for copper
c) The bolt on the C-body ensures
the wedge does not loosen after
installation
d) The spring wedge actuator is
compressed with a special tool
2-1. Circle the correct answer. d) Secondary voltage
Which of the following is NOT a
factor in deciding the type of
connector to use when making a
service connection?
a) Application
b) Wire size
c) Wire type
d) Secondary voltage
2-2. True or False. True
When a copper wire comes in
contact with an aluminum wire, a
chemical reaction can occur that
can corrode the aluminum wire.
