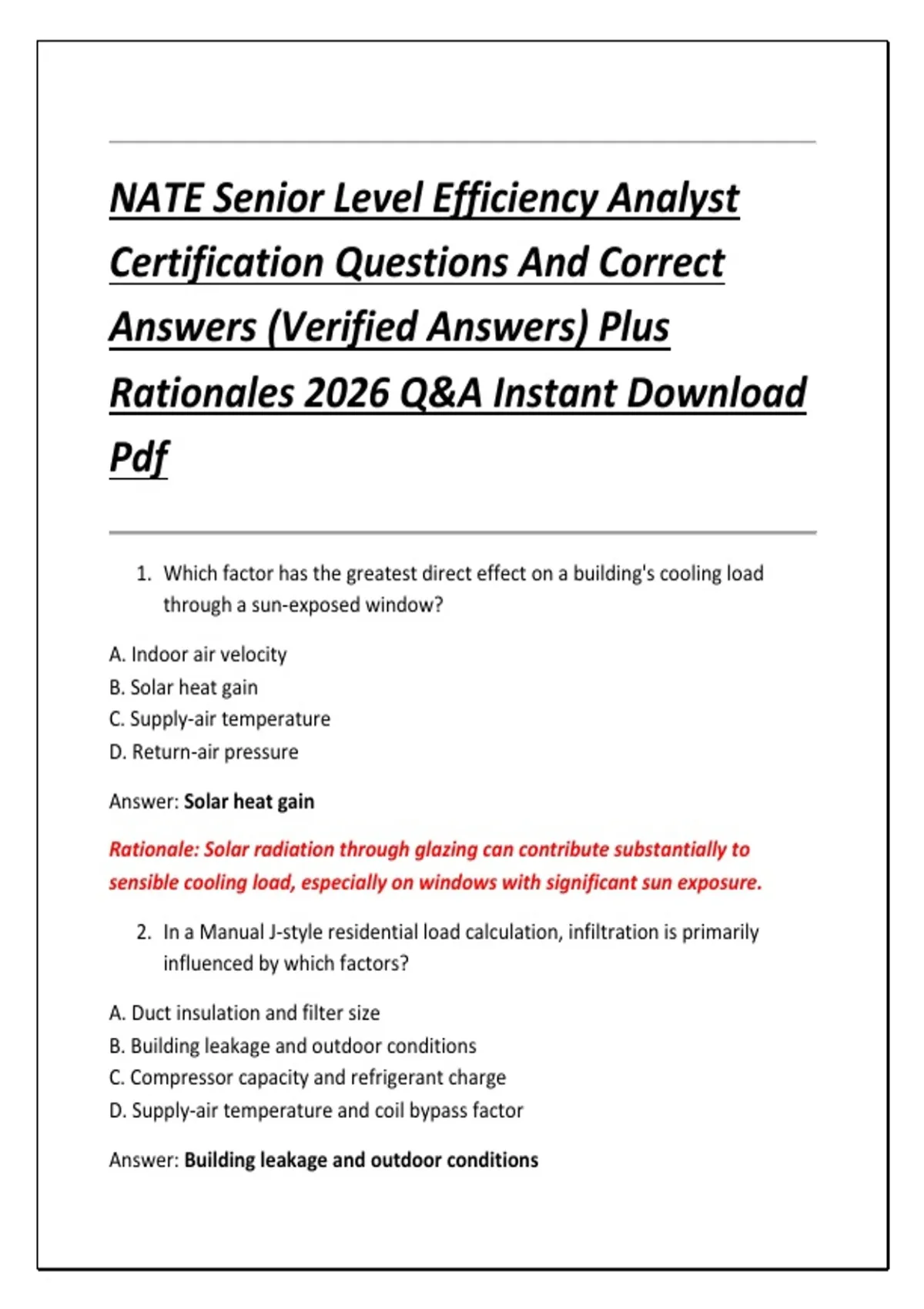

NATE Senior Level Efficiency Analyst
Certification Questions And Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A Instant Download
Pdf
1. Which factor has the greatest direct effect on a building's cooling load
through a sun-exposed window?
A. Indoor air velocity
B. Solar heat gain
C. Supply-air temperature
D. Return-air pressure
Answer: Solar heat gain
Rationale: Solar radiation through glazing can contribute substantially to
sensible cooling load, especially on windows with significant sun exposure.
2. In a Manual J-style residential load calculation, infiltration is primarily
influenced by which factors?
A. Duct insulation and filter size
B. Building leakage and outdoor conditions
C. Compressor capacity and refrigerant charge
D. Supply-air temperature and coil bypass factor
Answer: Building leakage and outdoor conditions
,Rationale: Infiltration depends largely on the building envelope's leakage
characteristics and the pressure and weather conditions driving outdoor air into
the structure.
3. What is the primary purpose of performing a heating and cooling load
calculation?
A. To determine the refrigerant type
B. To select equipment based only on floor area
C. To determine the required heating and cooling capacity
D. To determine the electrical service voltage
Answer: To determine the required heating and cooling capacity
Rationale: A load calculation estimates the building's actual heating and cooling
requirements so equipment can be properly sized.
4. Oversizing a cooling system can cause which problem?
A. Longer compressor run times
B. Improved dehumidification
C. Short cycling and poor humidity control
D. Reduced equipment capacity
Answer: Short cycling and poor humidity control
Rationale: An oversized cooling system can satisfy sensible temperature demand
quickly without running long enough to provide effective moisture removal.
5. Which building characteristic generally reduces conductive heat transfer
through a wall?
A. Higher thermal resistance
B. Increased air leakage
C. Larger uninsulated areas
D. Higher thermal conductivity
Answer: Higher thermal resistance
,Rationale: Greater thermal resistance, or R-value, reduces the rate of heat
transfer through the building assembly.
6. What happens to the heating load when outdoor design temperature
decreases?
A. The heating load generally decreases
B. The heating load generally increases
C. The cooling load becomes zero
D. The building becomes more internally insulated
Answer: The heating load generally increases
Rationale: A lower outdoor temperature increases the temperature difference
between indoors and outdoors, increasing heat loss.
7. Which internal source contributes sensible and latent heat to a building?
A. Occupants
B. Insulation
C. Roof decking
D. Vapor barrier
Answer: Occupants
Rationale: People release sensible heat and moisture, contributing both sensible
and latent cooling loads.
8. Why should internal heat gains be included in a cooling-load calculation?
A. They always reduce equipment capacity
B. They add heat that the cooling system must remove
C. They determine refrigerant pressure
D. They determine duct friction only
Answer: They add heat that the cooling system must remove
, Rationale: Occupants, lighting, appliances, and equipment can add substantial
heat to the conditioned space.
9. What is the most appropriate basis for selecting residential HVAC
equipment?
A. Equipment size of the previous system
B. Contractor preference
C. Calculated heating and cooling loads
D. Nominal tonnage per square foot
Answer: Calculated heating and cooling loads
Rationale: Proper sizing should be based on calculated loads rather than rules of
thumb or the capacity of existing equipment.
10.Which load is associated with moisture introduced into a conditioned
space?
A. Sensible load
B. Latent load
C. Conductive load
D. Radiant-only load
Answer: Latent load
Rationale: Latent load represents the energy required to remove moisture from
the air.
11.A building has excessive air leakage around doors and windows. Which load
is most directly increased?
A. Infiltration load
B. Equipment standby load
C. Compressor shell load
D. Motor bearing load
Answer: Infiltration load
