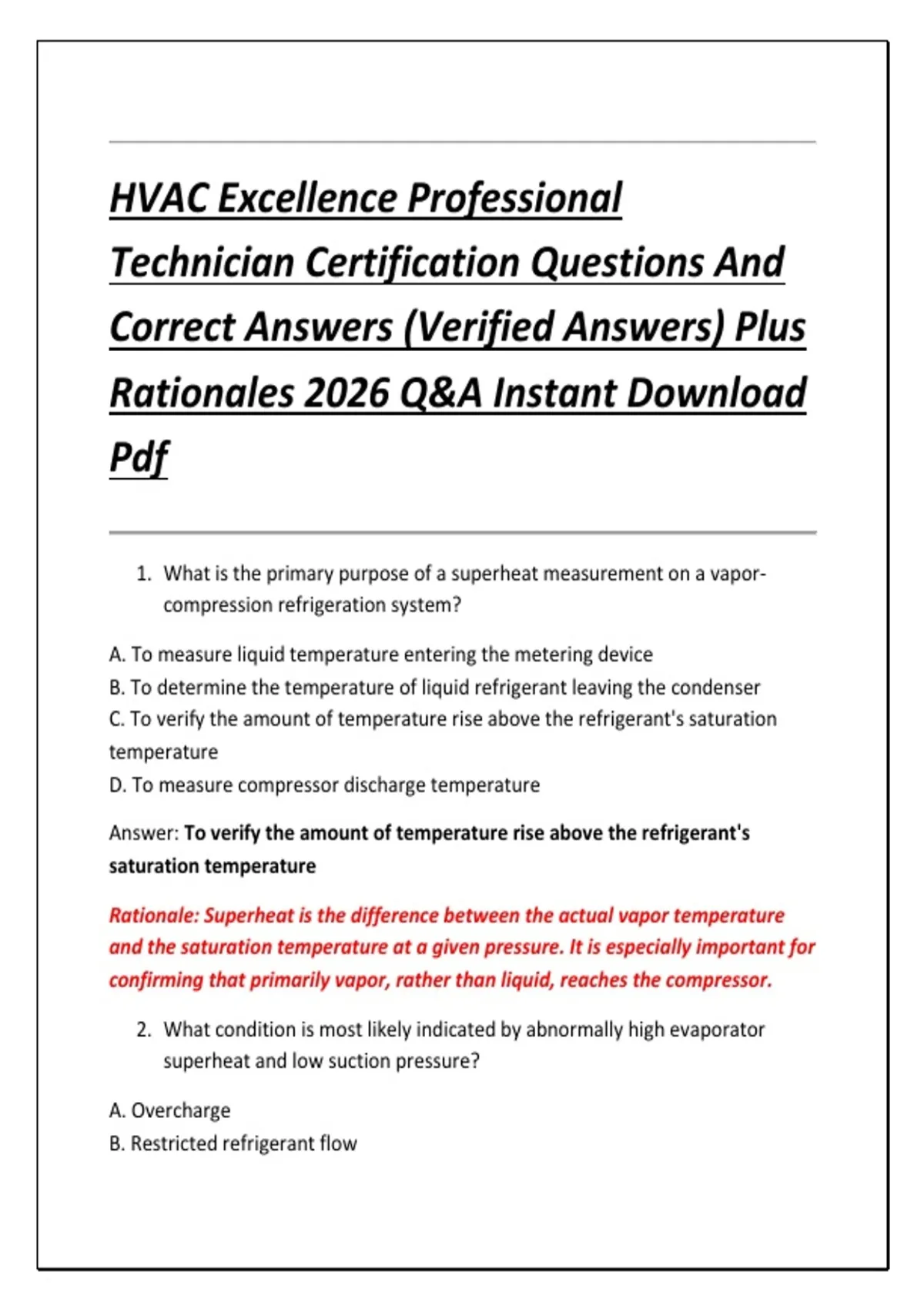

HVAC Excellence Professional
Technician Certification Questions And
Correct Answers (Verified Answers) Plus
Rationales 2026 Q&A Instant Download
Pdf
1. What is the primary purpose of a superheat measurement on a vapor-
compression refrigeration system?
A. To measure liquid temperature entering the metering device
B. To determine the temperature of liquid refrigerant leaving the condenser
C. To verify the amount of temperature rise above the refrigerant's saturation
temperature
D. To measure compressor discharge temperature
Answer: To verify the amount of temperature rise above the refrigerant's
saturation temperature
Rationale: Superheat is the difference between the actual vapor temperature
and the saturation temperature at a given pressure. It is especially important for
confirming that primarily vapor, rather than liquid, reaches the compressor.
2. What condition is most likely indicated by abnormally high evaporator
superheat and low suction pressure?
A. Overcharge
B. Restricted refrigerant flow
,C. Flooded evaporator
D. Excessive condenser airflow
Answer: Restricted refrigerant flow
Rationale: A restricted metering device, plugged filter-drier, or similar restriction
can starve the evaporator, producing low suction pressure and high superheat.
3. What is the main function of a filter-drier in a refrigeration system?
A. Increase compressor capacity
B. Remove moisture and contaminants
C. Increase refrigerant pressure
D. Reduce condenser temperature
Answer: Remove moisture and contaminants
Rationale: Filter-driers capture moisture, acids, debris, and other contaminants
that can damage system components and degrade reliability.
4. Which instrument is used to measure refrigerant pressure?
A. Manometer
B. Psychrometer
C. Manifold gauge set
D. Megohmmeter
Answer: Manifold gauge set
Rationale: A manifold gauge set allows the technician to measure refrigerant-
side pressures and, when properly connected, perform charging and recovery
procedures.
5. What does a micron gauge measure?
A. Refrigerant velocity
B. Electrical resistance
,C. Absolute pressure during evacuation
D. Air temperature
Answer: Absolute pressure during evacuation
Rationale: A micron gauge measures very low absolute pressures and is used to
determine whether a refrigeration system has been evacuated adequately.
6. Why should a vacuum pump be connected using large-diameter, short
hoses whenever practical?
A. To increase refrigerant charge
B. To reduce evacuation resistance
C. To increase compressor speed
D. To prevent condenser flooding
Answer: To reduce evacuation resistance
Rationale: Large, short evacuation hoses minimize flow resistance and allow the
vacuum pump to remove moisture and noncondensables more effectively.
7. What is the primary purpose of a compressor crankcase heater?
A. Increase condenser pressure
B. Prevent liquid refrigerant from migrating into the compressor oil
C. Increase evaporator superheat
D. Cool the compressor motor
Answer: Prevent liquid refrigerant from migrating into the compressor oil
Rationale: A crankcase heater helps keep refrigerant from condensing and
accumulating in the compressor crankcase, reducing the risk of liquid slugging
and oil dilution.
8. What is the normal direction of refrigerant flow through a thermostatic
expansion valve?
, A. Evaporator to condenser
B. Condenser to evaporator
C. Compressor to evaporator
D. Receiver to compressor
Answer: Condenser to evaporator
Rationale: The metering device controls liquid refrigerant flow from the high-
pressure side into the low-pressure evaporator.
9. What is the primary purpose of an evaporator?
A. Reject heat to outdoor air
B. Absorb heat from the conditioned space
C. Compress refrigerant vapor
D. Store refrigerant
Answer: Absorb heat from the conditioned space
Rationale: Refrigerant evaporates in the evaporator while absorbing heat from
the air, water, or other medium being cooled.
10.What is the primary function of a condenser?
A. Absorb heat from the conditioned space
B. Remove heat from refrigerant and reject it to the surroundings
C. Reduce suction pressure
D. Meter refrigerant into the evaporator
Answer: Remove heat from refrigerant and reject it to the surroundings
Rationale: The condenser rejects heat absorbed in the evaporator plus the
compressor's heat of compression, causing refrigerant vapor to condense into
liquid.
11.A dirty condenser coil will most commonly cause which condition?
