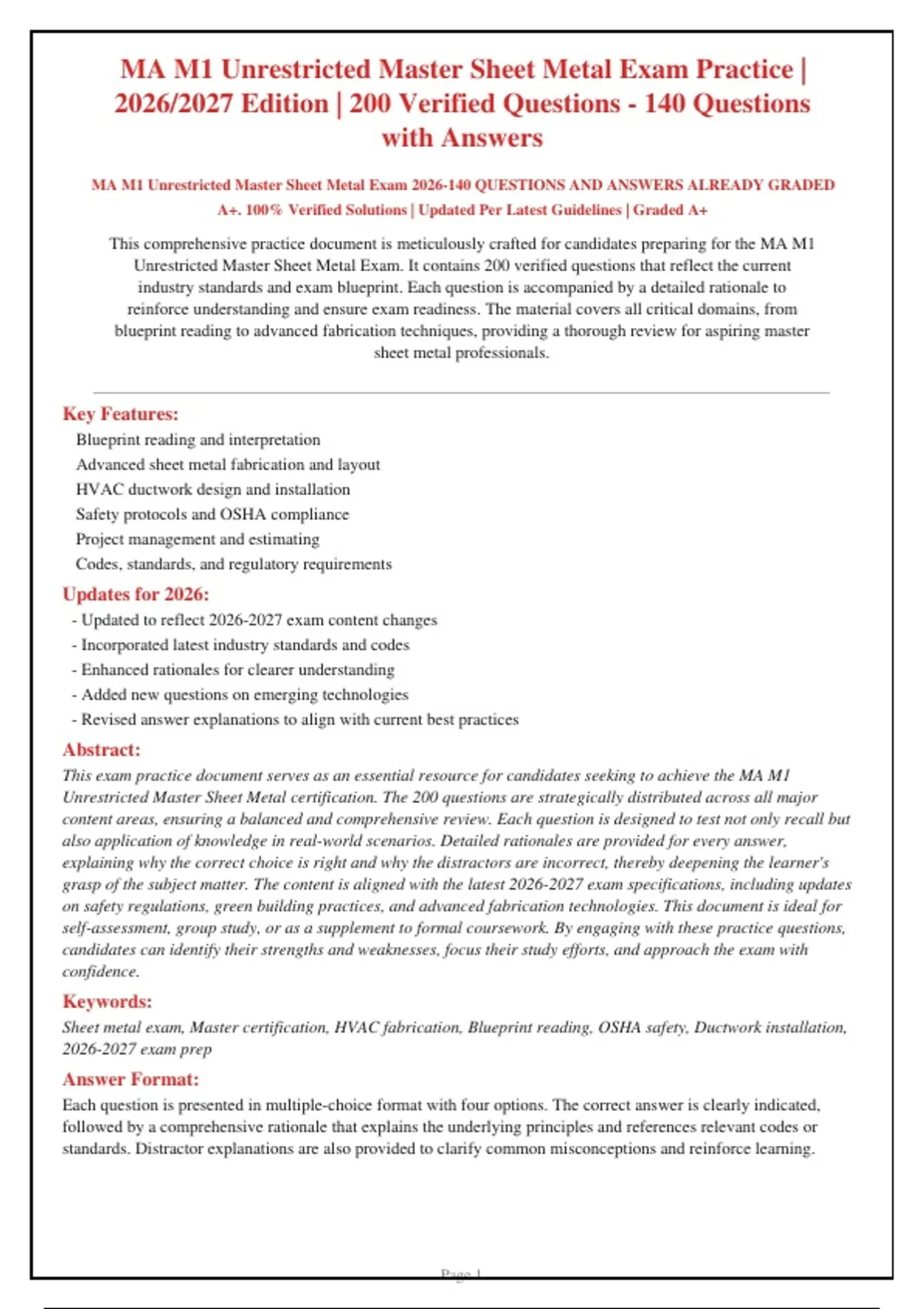

MA M1 Unrestricted Master Sheet Metal Exam Practice |
2026/2027 Edition | 200 Verified Questions - 140 Questions
with Answers
MA M1 Unrestricted Master Sheet Metal Exam 2026-140 QUESTIONS AND ANSWERS ALREADY GRADED
A+. 100% Verified Solutions | Updated Per Latest Guidelines | Graded A+
This comprehensive practice document is meticulously crafted for candidates preparing for the MA M1
Unrestricted Master Sheet Metal Exam. It contains 200 verified questions that reflect the current
industry standards and exam blueprint. Each question is accompanied by a detailed rationale to
reinforce understanding and ensure exam readiness. The material covers all critical domains, from
blueprint reading to advanced fabrication techniques, providing a thorough review for aspiring master
sheet metal professionals.
Key Features:
Blueprint reading and interpretation
Advanced sheet metal fabrication and layout
HVAC ductwork design and installation
Safety protocols and OSHA compliance
Project management and estimating
Codes, standards, and regulatory requirements
Updates for 2026:
- Updated to reflect 2026-2027 exam content changes
- Incorporated latest industry standards and codes
- Enhanced rationales for clearer understanding
- Added new questions on emerging technologies
- Revised answer explanations to align with current best practices
Abstract:
This exam practice document serves as an essential resource for candidates seeking to achieve the MA M1
Unrestricted Master Sheet Metal certification. The 200 questions are strategically distributed across all major
content areas, ensuring a balanced and comprehensive review. Each question is designed to test not only recall but
also application of knowledge in real-world scenarios. Detailed rationales are provided for every answer,
explaining why the correct choice is right and why the distractors are incorrect, thereby deepening the learner's
grasp of the subject matter. The content is aligned with the latest 2026-2027 exam specifications, including updates
on safety regulations, green building practices, and advanced fabrication technologies. This document is ideal for
self-assessment, group study, or as a supplement to formal coursework. By engaging with these practice questions,
candidates can identify their strengths and weaknesses, focus their study efforts, and approach the exam with
confidence.
Keywords:
Sheet metal exam, Master certification, HVAC fabrication, Blueprint reading, OSHA safety, Ductwork installation,
2026-2027 exam prep
Answer Format:
Each question is presented in multiple-choice format with four options. The correct answer is clearly indicated,
followed by a comprehensive rationale that explains the underlying principles and references relevant codes or
standards. Distractor explanations are also provided to clarify common misconceptions and reinforce learning.
Page 1
,Compliance Checklist:
Aligned with 2026-2027 exam blueprint
Covers all major content areas
Includes verified answers and rationales
Updated to reflect latest industry standards
Suitable for independent study or classroom use
Content Area Overview:
Content Area Questions Key Topics Weight
Blueprint Reading and 1-30 Architectural symbols, drafting standards, 15%
Interpretation dimensioning, tolerances
Sheet Metal Fabrication and 31-70 Pattern development, cutting, bending, 20%
Layout forming, welding
HVAC Ductwork Design and 71-110 Airflow principles, duct sizing, fittings, 20%
Installation sealing, supports
Safety Protocols and OSHA 111-140 Personal protective equipment, hazard 15%
Compliance communication, lockout/tagout, fall
protection
Project Management and 141-170 Material takeoff, cost estimation, 15%
Estimating scheduling, quality control
Codes, Standards, and 171-200 SMACNA, ASHRAE, local building codes, 15%
Regulatory Requirements permit requirements
Page 2
,Q1. In a deep drawing operation of a 1.2 mm thick low-carbon steel blank, the
limiting drawing ratio (LDR) is found to be 2.1. If the punch force reaches 90% of the
maximum allowable press load, which adjustment would most effectively increase the
LDR while maintaining part integrity?
A. Increase the blank holder force to reduce wrinkling
B. Switch to a higher-viscosity lubricant to reduce friction at the flange
C. Increase the punch-die clearance to reduce thinning at the cup wall
D. Increase the punch speed to reduce strain rate effects
Correct Answer: B. Switch to a higher-viscosity lubricant to reduce friction at the
flange
Rationale: The LDR is primarily limited by fracture at the cup bottom due to excessive
tensile stress. Reducing friction at the flange lowers the tensile stress on the cup wall,
allowing deeper draws before failure. Higher blank holder force increases friction and
stress, worsening LDR. Increased clearance reduces wall thinning but not the fundamental
stress limit. Punch speed has minimal effect on LDR for low-carbon steel.
Why Wrong:
A - Increasing blank holder force raises friction and tensile stress, which lowers the
LDR.
C - Larger clearance reduces wall thinning but does not address the tensile stress at the
cup bottom that limits LDR.
D - Punch speed has negligible influence on LDR for low-carbon steel at typical
forming speeds.
Reference: Kalpakjian, S. & Schmid, S. (2021). Manufacturing Engineering and
Technology, 8th Ed., Ch. 16
Q2. A designer specifies a 2 mm thick aluminum alloy 6061-T6 sheet for a component
requiring high strength and good corrosion resistance. The part will be formed by
bending at a sharp radius (inner radius = 1.5 mm). What is the primary concern
during bending, and what mitigation is most appropriate?
A. Springback; compensate by overbending by the springback angle
B. Cracking on the outer surface; use a larger bend radius or anneal the material
C. Wrinkling on the inner surface; increase blank holder force
D. Luders banding; pre-strain the material before bending
Correct Answer: B. Cracking on the outer surface; use a larger bend radius or anneal
the material
Rationale: Aluminum 6061-T6 is a precipitation-hardened alloy with limited ductility.
Bending to a tight radius (r/t = 0.75) exceeds the minimum bend radius and causes
cracking on the outer (tension) surface. Annealing (O temper) increases ductility, or a
larger radius reduces strain. Springback is a dimensional issue, not a fracture risk.
Wrinkling is more common in compression-dominated processes like deep drawing, not
Page 3
, bending. Luders banding is typical of low-carbon steels, not T6 aluminum.
Why Wrong:
A - Springback is a concern but not the primary issue for a sharp bend in a
low-ductility alloy; cracking will occur first.
C - Wrinkling is not typical in bending; it is a compression instability in deep
drawing.
D - Luders banding is a phenomenon in low-carbon steels, not in
precipitation-hardened aluminum.
Reference: ASM Handbook, Vol. 14B: Metalworking: Sheet Forming (2006), Ch. 8
Q3. During hydroforming of a tubular blank, a burst occurs at the free-expansion
zone. The tube material is a 304 stainless steel with a strain-hardening exponent (n) of
0.45. Which factor most likely contributed to the burst, and what corrective action is
most effective?
A. Excessive axial feeding caused buckling; reduce axial feed rate
B. Internal pressure exceeded the burst pressure of the tube; lower the pressure setpoint
C. Insufficient calibration pressure led to incomplete die fill; increase pressure after
contact
D. High strain rate localized necking; reduce the pressurization rate
Correct Answer: B. Internal pressure exceeded the burst pressure of the tube; lower
the pressure setpoint
Rationale: In hydroforming, a burst in the free-expansion zone occurs when the internal
pressure exceeds the instantaneous burst pressure of the tube, which depends on the
current wall thickness and flow stress. High n-value material has good post-uniform
elongation, but if pressure is too high, it will burst. Corrective action is to reduce the
pressure setpoint or increase axial feeding to supply material and reduce wall thinning.
Buckling is a different failure mode (compression). Calibration pressure is applied after
expansion to eliminate springback, not to prevent bursts. Strain rate is not the primary
cause of burst.
Why Wrong:
A - Axial feeding causes buckling, not burst; burst is from excessive tensile stress due
to pressure.
C - Calibration pressure occurs after expansion and its increase would worsen burst,
not prevent it.
D - High strain rate may affect flow stress but not as directly as pressure control; burst
is pressure-driven.
Reference: Koc, M. (2008). Hydroforming for Advanced Manufacturing, Ch. 5
Q4. A laser cutting process on a 6 mm thick mild steel plate produces a cut edge with
excessive dross and a rough surface. The assist gas is oxygen, and the laser power is 4
Page 4
2026/2027 Edition | 200 Verified Questions - 140 Questions
with Answers
MA M1 Unrestricted Master Sheet Metal Exam 2026-140 QUESTIONS AND ANSWERS ALREADY GRADED
A+. 100% Verified Solutions | Updated Per Latest Guidelines | Graded A+
This comprehensive practice document is meticulously crafted for candidates preparing for the MA M1
Unrestricted Master Sheet Metal Exam. It contains 200 verified questions that reflect the current
industry standards and exam blueprint. Each question is accompanied by a detailed rationale to
reinforce understanding and ensure exam readiness. The material covers all critical domains, from
blueprint reading to advanced fabrication techniques, providing a thorough review for aspiring master
sheet metal professionals.
Key Features:
Blueprint reading and interpretation
Advanced sheet metal fabrication and layout
HVAC ductwork design and installation
Safety protocols and OSHA compliance
Project management and estimating
Codes, standards, and regulatory requirements
Updates for 2026:
- Updated to reflect 2026-2027 exam content changes
- Incorporated latest industry standards and codes
- Enhanced rationales for clearer understanding
- Added new questions on emerging technologies
- Revised answer explanations to align with current best practices
Abstract:
This exam practice document serves as an essential resource for candidates seeking to achieve the MA M1
Unrestricted Master Sheet Metal certification. The 200 questions are strategically distributed across all major
content areas, ensuring a balanced and comprehensive review. Each question is designed to test not only recall but
also application of knowledge in real-world scenarios. Detailed rationales are provided for every answer,
explaining why the correct choice is right and why the distractors are incorrect, thereby deepening the learner's
grasp of the subject matter. The content is aligned with the latest 2026-2027 exam specifications, including updates
on safety regulations, green building practices, and advanced fabrication technologies. This document is ideal for
self-assessment, group study, or as a supplement to formal coursework. By engaging with these practice questions,
candidates can identify their strengths and weaknesses, focus their study efforts, and approach the exam with
confidence.
Keywords:
Sheet metal exam, Master certification, HVAC fabrication, Blueprint reading, OSHA safety, Ductwork installation,
2026-2027 exam prep
Answer Format:
Each question is presented in multiple-choice format with four options. The correct answer is clearly indicated,
followed by a comprehensive rationale that explains the underlying principles and references relevant codes or
standards. Distractor explanations are also provided to clarify common misconceptions and reinforce learning.
Page 1
,Compliance Checklist:
Aligned with 2026-2027 exam blueprint
Covers all major content areas
Includes verified answers and rationales
Updated to reflect latest industry standards
Suitable for independent study or classroom use
Content Area Overview:
Content Area Questions Key Topics Weight
Blueprint Reading and 1-30 Architectural symbols, drafting standards, 15%
Interpretation dimensioning, tolerances
Sheet Metal Fabrication and 31-70 Pattern development, cutting, bending, 20%
Layout forming, welding
HVAC Ductwork Design and 71-110 Airflow principles, duct sizing, fittings, 20%
Installation sealing, supports
Safety Protocols and OSHA 111-140 Personal protective equipment, hazard 15%
Compliance communication, lockout/tagout, fall
protection
Project Management and 141-170 Material takeoff, cost estimation, 15%
Estimating scheduling, quality control
Codes, Standards, and 171-200 SMACNA, ASHRAE, local building codes, 15%
Regulatory Requirements permit requirements
Page 2
,Q1. In a deep drawing operation of a 1.2 mm thick low-carbon steel blank, the
limiting drawing ratio (LDR) is found to be 2.1. If the punch force reaches 90% of the
maximum allowable press load, which adjustment would most effectively increase the
LDR while maintaining part integrity?
A. Increase the blank holder force to reduce wrinkling
B. Switch to a higher-viscosity lubricant to reduce friction at the flange
C. Increase the punch-die clearance to reduce thinning at the cup wall
D. Increase the punch speed to reduce strain rate effects
Correct Answer: B. Switch to a higher-viscosity lubricant to reduce friction at the
flange
Rationale: The LDR is primarily limited by fracture at the cup bottom due to excessive
tensile stress. Reducing friction at the flange lowers the tensile stress on the cup wall,
allowing deeper draws before failure. Higher blank holder force increases friction and
stress, worsening LDR. Increased clearance reduces wall thinning but not the fundamental
stress limit. Punch speed has minimal effect on LDR for low-carbon steel.
Why Wrong:
A - Increasing blank holder force raises friction and tensile stress, which lowers the
LDR.
C - Larger clearance reduces wall thinning but does not address the tensile stress at the
cup bottom that limits LDR.
D - Punch speed has negligible influence on LDR for low-carbon steel at typical
forming speeds.
Reference: Kalpakjian, S. & Schmid, S. (2021). Manufacturing Engineering and
Technology, 8th Ed., Ch. 16
Q2. A designer specifies a 2 mm thick aluminum alloy 6061-T6 sheet for a component
requiring high strength and good corrosion resistance. The part will be formed by
bending at a sharp radius (inner radius = 1.5 mm). What is the primary concern
during bending, and what mitigation is most appropriate?
A. Springback; compensate by overbending by the springback angle
B. Cracking on the outer surface; use a larger bend radius or anneal the material
C. Wrinkling on the inner surface; increase blank holder force
D. Luders banding; pre-strain the material before bending
Correct Answer: B. Cracking on the outer surface; use a larger bend radius or anneal
the material
Rationale: Aluminum 6061-T6 is a precipitation-hardened alloy with limited ductility.
Bending to a tight radius (r/t = 0.75) exceeds the minimum bend radius and causes
cracking on the outer (tension) surface. Annealing (O temper) increases ductility, or a
larger radius reduces strain. Springback is a dimensional issue, not a fracture risk.
Wrinkling is more common in compression-dominated processes like deep drawing, not
Page 3
, bending. Luders banding is typical of low-carbon steels, not T6 aluminum.
Why Wrong:
A - Springback is a concern but not the primary issue for a sharp bend in a
low-ductility alloy; cracking will occur first.
C - Wrinkling is not typical in bending; it is a compression instability in deep
drawing.
D - Luders banding is a phenomenon in low-carbon steels, not in
precipitation-hardened aluminum.
Reference: ASM Handbook, Vol. 14B: Metalworking: Sheet Forming (2006), Ch. 8
Q3. During hydroforming of a tubular blank, a burst occurs at the free-expansion
zone. The tube material is a 304 stainless steel with a strain-hardening exponent (n) of
0.45. Which factor most likely contributed to the burst, and what corrective action is
most effective?
A. Excessive axial feeding caused buckling; reduce axial feed rate
B. Internal pressure exceeded the burst pressure of the tube; lower the pressure setpoint
C. Insufficient calibration pressure led to incomplete die fill; increase pressure after
contact
D. High strain rate localized necking; reduce the pressurization rate
Correct Answer: B. Internal pressure exceeded the burst pressure of the tube; lower
the pressure setpoint
Rationale: In hydroforming, a burst in the free-expansion zone occurs when the internal
pressure exceeds the instantaneous burst pressure of the tube, which depends on the
current wall thickness and flow stress. High n-value material has good post-uniform
elongation, but if pressure is too high, it will burst. Corrective action is to reduce the
pressure setpoint or increase axial feeding to supply material and reduce wall thinning.
Buckling is a different failure mode (compression). Calibration pressure is applied after
expansion to eliminate springback, not to prevent bursts. Strain rate is not the primary
cause of burst.
Why Wrong:
A - Axial feeding causes buckling, not burst; burst is from excessive tensile stress due
to pressure.
C - Calibration pressure occurs after expansion and its increase would worsen burst,
not prevent it.
D - High strain rate may affect flow stress but not as directly as pressure control; burst
is pressure-driven.
Reference: Koc, M. (2008). Hydroforming for Advanced Manufacturing, Ch. 5
Q4. A laser cutting process on a 6 mm thick mild steel plate produces a cut edge with
excessive dross and a rough surface. The assist gas is oxygen, and the laser power is 4
Page 4
