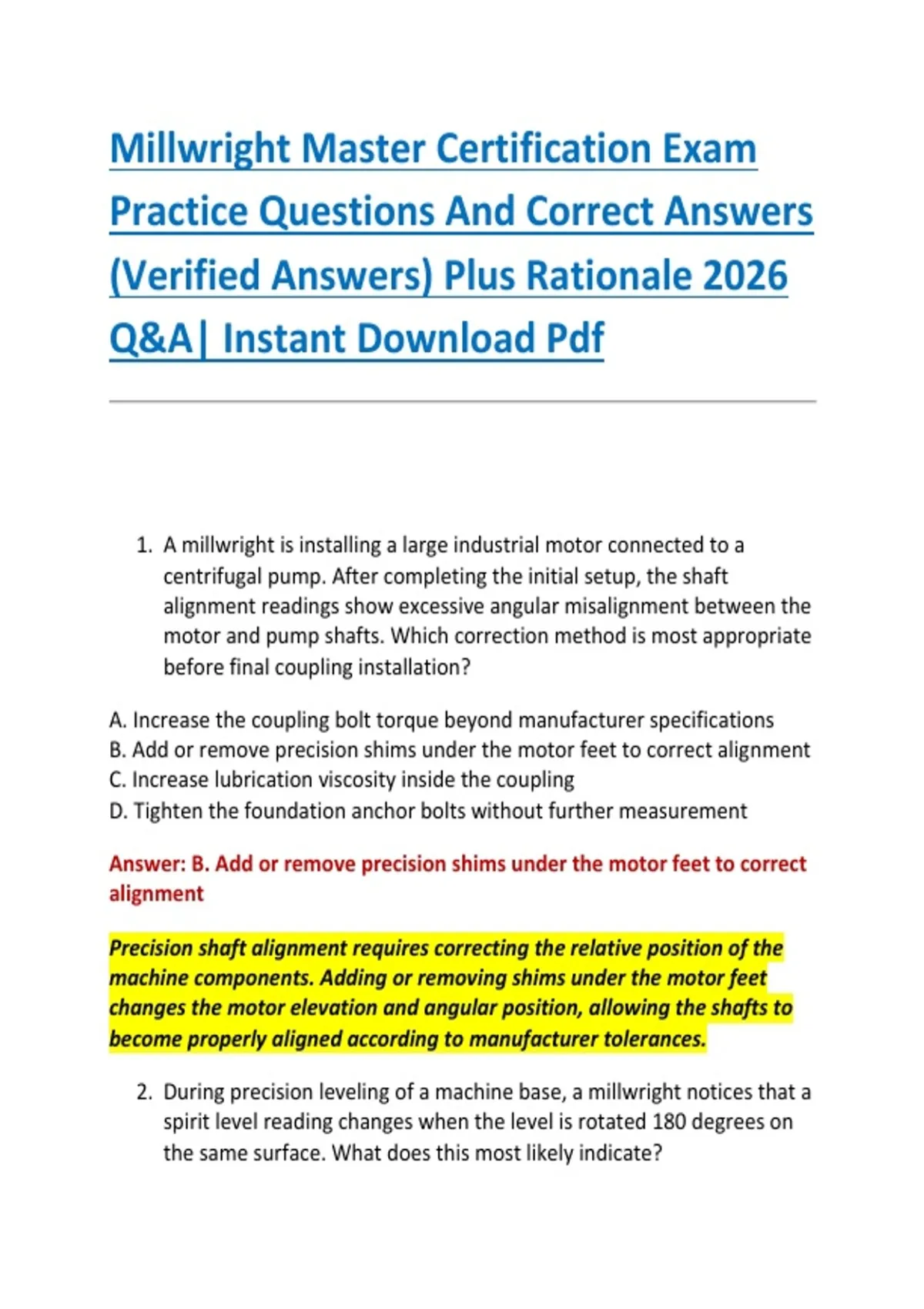

Millwright Master Certification Exam
Practice Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. A millwright is installing a large industrial motor connected to a
centrifugal pump. After completing the initial setup, the shaft
alignment readings show excessive angular misalignment between the
motor and pump shafts. Which correction method is most appropriate
before final coupling installation?
A. Increase the coupling bolt torque beyond manufacturer specifications
B. Add or remove precision shims under the motor feet to correct alignment
C. Increase lubrication viscosity inside the coupling
D. Tighten the foundation anchor bolts without further measurement
Answer: B. Add or remove precision shims under the motor feet to correct
alignment
Precision shaft alignment requires correcting the relative position of the
machine components. Adding or removing shims under the motor feet
changes the motor elevation and angular position, allowing the shafts to
become properly aligned according to manufacturer tolerances.
2. During precision leveling of a machine base, a millwright notices that a
spirit level reading changes when the level is rotated 180 degrees on
the same surface. What does this most likely indicate?
,A. The machine base is perfectly level
B. The spirit level itself requires calibration
C. The foundation has excessive rigidity
D. The machine requires additional lubrication
Answer: B. The spirit level itself requires calibration
A properly calibrated precision level should provide the same reading when
rotated 180 degrees on the same surface. A reversed reading difference
indicates an error in the level instrument rather than the machine
condition.
3. A rolling element bearing repeatedly fails shortly after replacement.
Inspection reveals small pits and flaking on the raceway surfaces.
What is the most likely cause?
A. Electrical arcing or current passing through the bearing
B. Excessive grease cleanliness
C. Insufficient shaft diameter measurement
D. Incorrect paint application on the housing
Answer: A. Electrical arcing or current passing through the bearing
Electrical current flowing through a bearing can create arcing damage
known as fluting or pitting. This damages raceways and rolling elements,
leading to premature bearing failure.
4. When installing a flexible coupling between two rotating machines,
what is the primary purpose of maintaining correct alignment?
A. To increase machine weight
B. To eliminate the need for lubrication
C. To reduce vibration and prevent premature component failure
D. To prevent the coupling from rotating
Answer: C. To reduce vibration and prevent premature component failure
,Proper alignment minimizes forces transmitted through shafts, bearings,
and couplings. Misalignment creates vibration, heat, and excessive wear
that can shorten equipment life.
5. A millwright uses a dial indicator to measure shaft runout. What does
excessive runout indicate?
A. The shaft or rotating component is not perfectly concentric
B. The bearing lubricant is too clean
C. The foundation bolts are oversized
D. The motor horsepower is too high
Answer: A. The shaft or rotating component is not perfectly concentric
Dial indicators measure deviations from true rotation. Excessive runout
indicates that the shaft, coupling, or mounting surface may be bent,
damaged, or improperly installed.
6. Before lifting a heavy machine component with a chain hoist, the
millwright should first:
A. Remove all identification tags
B. Verify the load weight and ensure lifting equipment capacity is adequate
C. Paint the lifting points
D. Disconnect all nearby lighting circuits
Answer: B. Verify the load weight and ensure lifting equipment capacity is
adequate
Safe rigging begins with knowing the load weight and confirming that all
lifting devices are rated for the intended load. Failure to do so can result in
equipment failure and serious injury.
7. What is the primary function of a keyway in a shaft and hub assembly?
A. To reduce shaft diameter
B. To prevent relative rotation between the shaft and mounted component
, C. To increase lubrication flow
D. To eliminate the need for fasteners
Answer: B. To prevent relative rotation between the shaft and mounted
component
A key and keyway transmit torque between a shaft and a mounted
component such as a gear or pulley by preventing rotational slipping.
8. A machine foundation is experiencing repeated cracking near anchor
bolts. What is a likely cause?
A. Improper foundation design or excessive machine vibration
B. Excessively clean bearings
C. Low oil temperature
D. Incorrect paint thickness
Answer: A. Improper foundation design or excessive machine vibration
Foundation cracking commonly results from excessive dynamic forces, poor
installation practices, or inadequate foundation design that allows
vibration stresses to accumulate.
9. When installing a tapered roller bearing, why is proper preload
adjustment important?
A. It controls bearing internal clearance and operating performance
B. It eliminates the need for lubrication
C. It increases shaft length
D. It prevents the bearing from rotating
Answer: A. It controls bearing internal clearance and operating
performance
Correct preload ensures that tapered roller bearings operate with the
correct internal clearance, reducing overheating, excessive wear, and
premature failure.
