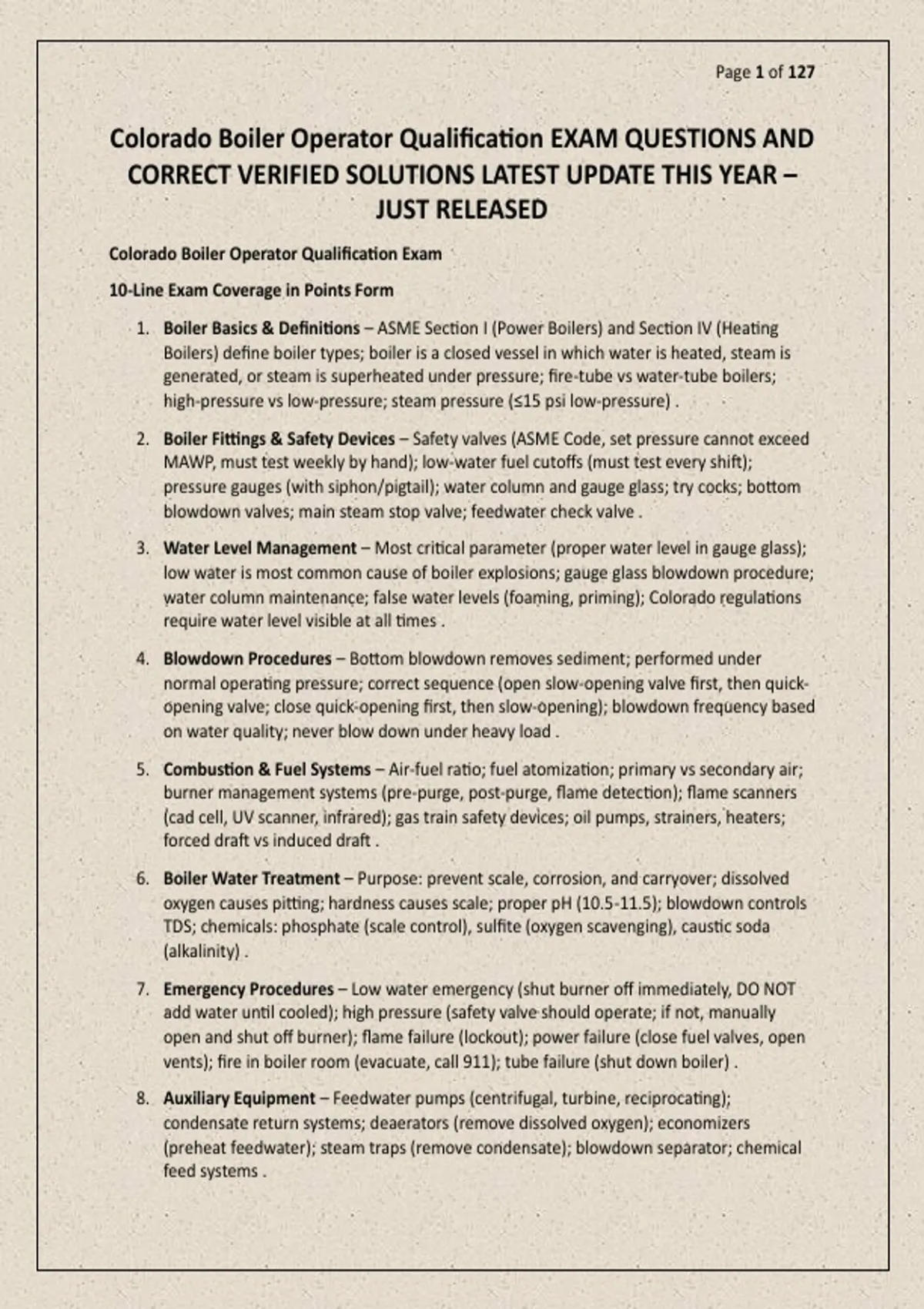

Page 1 of 127
Colorado Boiler Operator Qualification EXAM QUESTIONS AND
CORRECT VERIFIED SOLUTIONS LATEST UPDATE THIS YEAR –
JUST RELEASED
Colorado Boiler Operator Qualification Exam
10-Line Exam Coverage in Points Form
1. Boiler Basics & Definitions – ASME Section I (Power Boilers) and Section IV (Heating
Boilers) define boiler types; boiler is a closed vessel in which water is heated, steam is
generated, or steam is superheated under pressure; fire-tube vs water-tube boilers;
high-pressure vs low-pressure; steam pressure (≤15 psi low-pressure) .
2. Boiler Fittings & Safety Devices – Safety valves (ASME Code, set pressure cannot exceed
MAWP, must test weekly by hand); low-water fuel cutoffs (must test every shift);
pressure gauges (with siphon/pigtail); water column and gauge glass; try cocks; bottom
blowdown valves; main steam stop valve; feedwater check valve .
3. Water Level Management – Most critical parameter (proper water level in gauge glass);
low water is most common cause of boiler explosions; gauge glass blowdown procedure;
water column maintenance; false water levels (foaming, priming); Colorado regulations
require water level visible at all times .
4. Blowdown Procedures – Bottom blowdown removes sediment; performed under
normal operating pressure; correct sequence (open slow-opening valve first, then quick-
opening valve; close quick-opening first, then slow-opening); blowdown frequency based
on water quality; never blow down under heavy load .
5. Combustion & Fuel Systems – Air-fuel ratio; fuel atomization; primary vs secondary air;
burner management systems (pre-purge, post-purge, flame detection); flame scanners
(cad cell, UV scanner, infrared); gas train safety devices; oil pumps, strainers, heaters;
forced draft vs induced draft .
6. Boiler Water Treatment – Purpose: prevent scale, corrosion, and carryover; dissolved
oxygen causes pitting; hardness causes scale; proper pH (10.5-11.5); blowdown controls
TDS; chemicals: phosphate (scale control), sulfite (oxygen scavenging), caustic soda
(alkalinity) .
7. Emergency Procedures – Low water emergency (shut burner off immediately, DO NOT
add water until cooled); high pressure (safety valve should operate; if not, manually
open and shut off burner); flame failure (lockout); power failure (close fuel valves, open
vents); fire in boiler room (evacuate, call 911); tube failure (shut down boiler) .
8. Auxiliary Equipment – Feedwater pumps (centrifugal, turbine, reciprocating);
condensate return systems; deaerators (remove dissolved oxygen); economizers
(preheat feedwater); steam traps (remove condensate); blowdown separator; chemical
feed systems .
, Page 2 of 127
9. Inspection & Regulations – Colorado boiler inspections by the Division of Oil and Public
Safety; ASME Code compliance; National Board inspection; annual internal inspection;
operating certificate requirements; boiler log requirements; operator qualifications .
10. Operator Responsibilities – Starting up and shutting down boilers; monitoring boiler
operation; maintaining proper water level; conducting blowdown; recording boiler data
in log; performing safety checks; responding to alarms; maintaining safe operating
conditions; communicating with supervision .
100 Practice Questions with Rationales
Question 1
Which ASME Code section covers power boilers?
A) ASME Section I
B) ASME Section IV
C) ASME Section VIII
D) ASME Section IX
Correct Answer: A
Rationale: ASME Section I covers Power Boilers . This includes boilers that generate steam at
pressures exceeding 15 psi or hot water at pressures exceeding 160 psi and/or temperatures
exceeding 250°F.
Question 2
Which ASME Code section covers heating boilers?
, Page 3 of 127
A) ASME Section I
B) ASME Section IV
C) ASME Section VIII
D) ASME Section IX
Correct Answer: B
Rationale: ASME Section IV covers Heating Boilers . This includes low-pressure steam boilers
(≤15 psi) and hot water heating boilers (≤160 psi, ≤250°F).
Question 3
What is the maximum allowable working pressure (MAWP) for a low-pressure steam boiler?
A) 5 psi
B) 10 psi
C) 15 psi
D) 20 psi
Correct Answer: C
Rationale: A low-pressure steam boiler has a maximum allowable working pressure of 15 psi .
This is defined in ASME Section IV.
Question 4
What is the maximum allowable working pressure (MAWP) for a hot water heating boiler?
, Page 4 of 127
A) 100 psi
B) 120 psi
C) 150 psi
D) 160 psi
Correct Answer: D
Rationale: A hot water heating boiler has a maximum allowable working pressure of 160 psi .
The temperature limit is 250°F, as defined in ASME Section IV.
Question 5
What is the most common cause of boiler explosions?
A) Excessive pressure
B) Low water
C) Scale buildup
D) Corrosion
Correct Answer: B
Rationale: Low water is the most common cause of boiler explosions . When water level drops
below the safe operating level, boiler tubes overheat and fail catastrophically.
Question 6
What should be done if a boiler is discovered to have low water?
