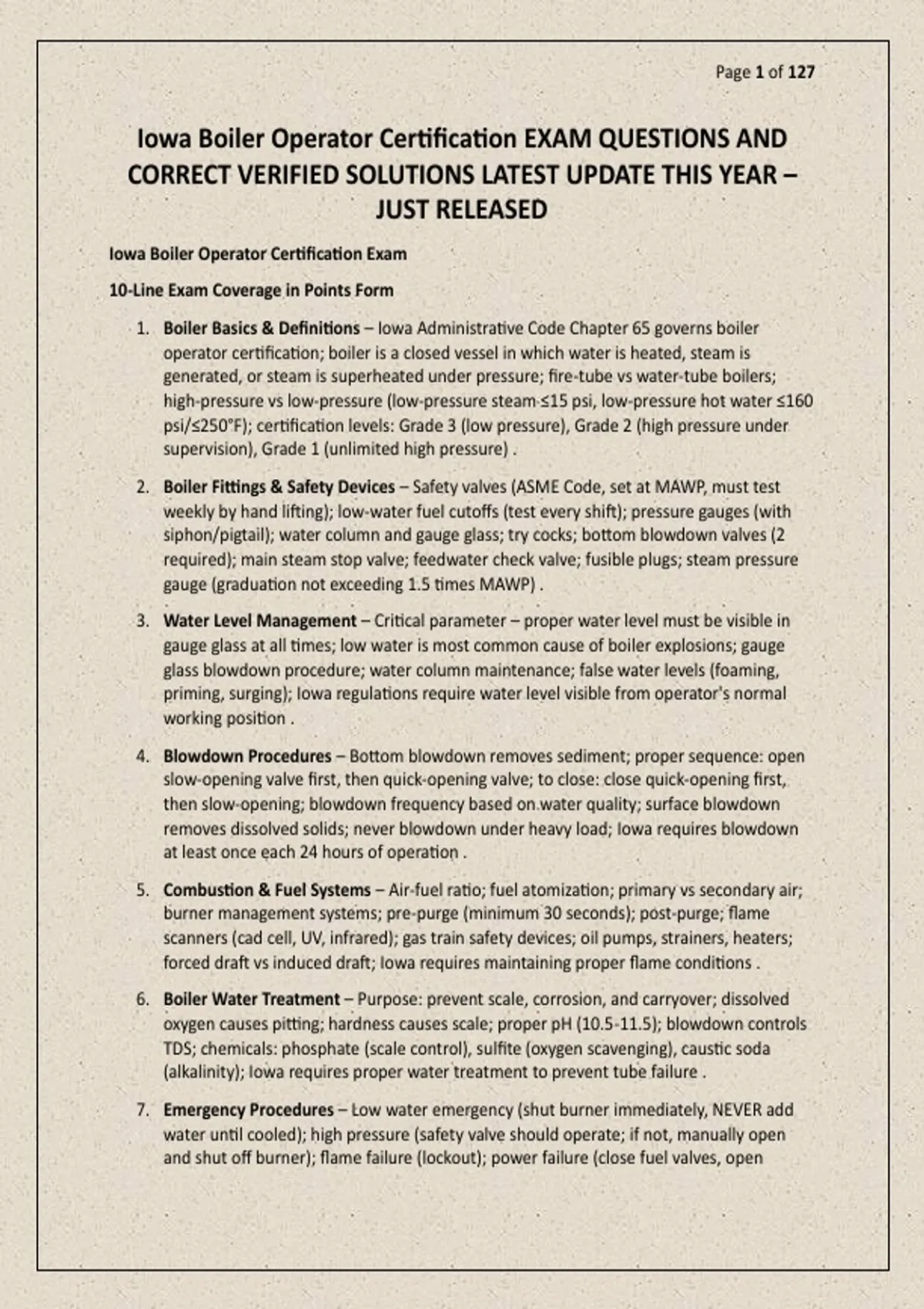

Page 1 of 127
Iowa Boiler Operator Certification EXAM QUESTIONS AND
CORRECT VERIFIED SOLUTIONS LATEST UPDATE THIS YEAR –
JUST RELEASED
Iowa Boiler Operator Certification Exam
10-Line Exam Coverage in Points Form
1. Boiler Basics & Definitions – Iowa Administrative Code Chapter 65 governs boiler
operator certification; boiler is a closed vessel in which water is heated, steam is
generated, or steam is superheated under pressure; fire-tube vs water-tube boilers;
high-pressure vs low-pressure (low-pressure steam ≤15 psi, low-pressure hot water ≤160
psi/≤250°F); certification levels: Grade 3 (low pressure), Grade 2 (high pressure under
supervision), Grade 1 (unlimited high pressure) .
2. Boiler Fittings & Safety Devices – Safety valves (ASME Code, set at MAWP, must test
weekly by hand lifting); low-water fuel cutoffs (test every shift); pressure gauges (with
siphon/pigtail); water column and gauge glass; try cocks; bottom blowdown valves (2
required); main steam stop valve; feedwater check valve; fusible plugs; steam pressure
gauge (graduation not exceeding 1.5 times MAWP) .
3. Water Level Management – Critical parameter – proper water level must be visible in
gauge glass at all times; low water is most common cause of boiler explosions; gauge
glass blowdown procedure; water column maintenance; false water levels (foaming,
priming, surging); Iowa regulations require water level visible from operator's normal
working position .
4. Blowdown Procedures – Bottom blowdown removes sediment; proper sequence: open
slow-opening valve first, then quick-opening valve; to close: close quick-opening first,
then slow-opening; blowdown frequency based on water quality; surface blowdown
removes dissolved solids; never blowdown under heavy load; Iowa requires blowdown
at least once each 24 hours of operation .
5. Combustion & Fuel Systems – Air-fuel ratio; fuel atomization; primary vs secondary air;
burner management systems; pre-purge (minimum 30 seconds); post-purge; flame
scanners (cad cell, UV, infrared); gas train safety devices; oil pumps, strainers, heaters;
forced draft vs induced draft; Iowa requires maintaining proper flame conditions .
6. Boiler Water Treatment – Purpose: prevent scale, corrosion, and carryover; dissolved
oxygen causes pitting; hardness causes scale; proper pH (10.5-11.5); blowdown controls
TDS; chemicals: phosphate (scale control), sulfite (oxygen scavenging), caustic soda
(alkalinity); Iowa requires proper water treatment to prevent tube failure .
7. Emergency Procedures – Low water emergency (shut burner immediately, NEVER add
water until cooled); high pressure (safety valve should operate; if not, manually open
and shut off burner); flame failure (lockout); power failure (close fuel valves, open
, Page 2 of 127
vents); fire in boiler room (evacuate, call 911); tube failure (shut down boiler); steam
explosion prevention .
8. Auxiliary Equipment – Feedwater pumps (centrifugal, turbine, reciprocating);
condensate return systems; deaerators (remove dissolved oxygen); economizers
(preheat feedwater); steam traps (remove condensate); blowdown separator; chemical
feed systems; heat recovery equipment .
9. Inspection & Regulations – Iowa Department of Inspections and Appeals conducts
inspections; ASME Code compliance; National Board inspection; annual internal
inspection; operating certificate requirements; boiler log requirements; operator
qualifications by boiler horsepower; Iowa requires external inspection at least once per
year .
10. Operator Responsibilities – Starting up and shutting down boilers; monitoring boiler
operation; maintaining proper water level; conducting blowdown; recording boiler data
in log; performing safety checks; responding to alarms; maintaining safe operating
conditions; communicating with supervision; Iowa requires minimum 1 year experience
for Grade 2 certification .
100 Practice Questions with Rationales
Question 1
Which Iowa Administrative Code chapter governs boiler operator certification?
A) Chapter 50
B) Chapter 55
C) Chapter 60
D) Chapter 65
Correct Answer: D
Rationale: Iowa Administrative Code Chapter 65 governs boiler operator certification in Iowa,
including definitions, certification requirements, and examination procedures .
, Page 3 of 127
Question 2
What is the maximum allowable working pressure (MAWP) for a low-pressure steam boiler?
A) 10 psi
B) 12 psi
C) 15 psi
D) 20 psi
Correct Answer: C
Rationale: A low-pressure steam boiler has a maximum allowable working pressure of 15 psi .
This is defined in boiler codes.
Question 3
What is the maximum allowable working pressure for a low-pressure hot water boiler?
A) 100 psi
B) 120 psi
C) 150 psi
D) 160 psi
Correct Answer: D
Rationale: A low-pressure hot water boiler has a maximum allowable working pressure of 160
psi . The temperature limit is 250°F.
, Page 4 of 127
Question 4
What is the maximum temperature for a low-pressure hot water boiler?
A) 200°F
B) 212°F
C) 230°F
D) 250°F
Correct Answer: D
Rationale: A low-pressure hot water boiler has a maximum temperature of 250°F . The pressure
limit is 160 psi.
Question 5
In Iowa, how many grades of boiler operator certification are there?
A) 1
B) 2
C) 3
D) 4
Correct Answer: C
Rationale: There are three grades of boiler operator certification in Iowa: Grade 3 (low
pressure), Grade 2 (high pressure under supervision), and Grade 1 (unlimited high pressure) .
