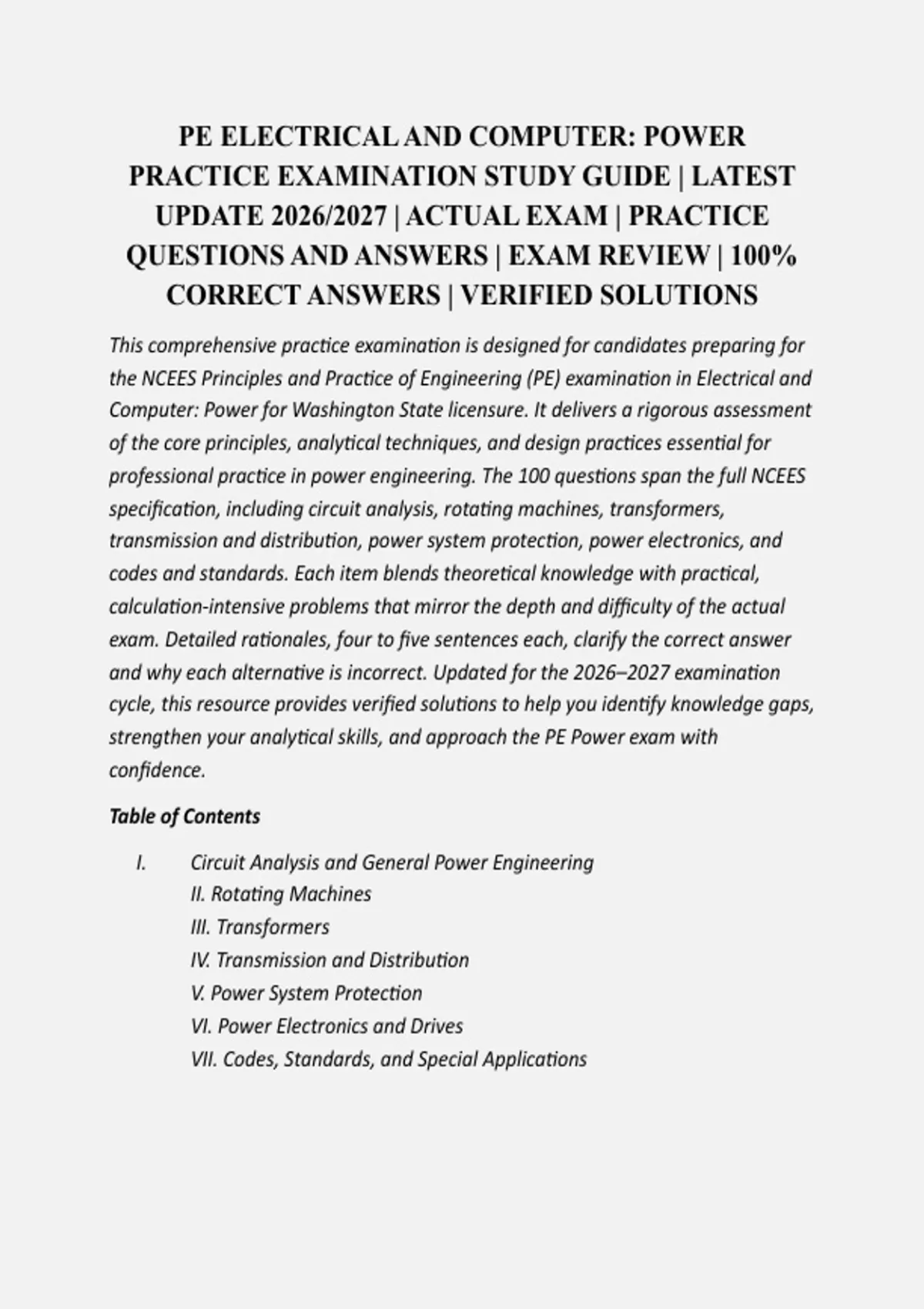

PE ELECTRICAL AND COMPUTER: POWER
PRACTICE EXAMINATION STUDY GUIDE | LATEST
UPDATE 2026/2027 | ACTUAL EXAM | PRACTICE
QUESTIONS AND ANSWERS | EXAM REVIEW | 100%
CORRECT ANSWERS | VERIFIED SOLUTIONS
This comprehensive practice examination is designed for candidates preparing for
the NCEES Principles and Practice of Engineering (PE) examination in Electrical and
Computer: Power for Washington State licensure. It delivers a rigorous assessment
of the core principles, analytical techniques, and design practices essential for
professional practice in power engineering. The 100 questions span the full NCEES
specification, including circuit analysis, rotating machines, transformers,
transmission and distribution, power system protection, power electronics, and
codes and standards. Each item blends theoretical knowledge with practical,
calculation-intensive problems that mirror the depth and difficulty of the actual
exam. Detailed rationales, four to five sentences each, clarify the correct answer
and why each alternative is incorrect. Updated for the 2026–2027 examination
cycle, this resource provides verified solutions to help you identify knowledge gaps,
strengthen your analytical skills, and approach the PE Power exam with
confidence.
Table of Contents
I. Circuit Analysis and General Power Engineering
II. Rotating Machines
III. Transformers
IV. Transmission and Distribution
V. Power System Protection
VI. Power Electronics and Drives
VII. Codes, Standards, and Special Applications
, 1. A three-phase, 60 Hz, 500 MVA, 24 kV generator has a direct-axis
subtransient reactance X''d of 0.12 per unit. It is connected to a 500 MVA,
24/230 kV transformer with a leakage reactance of 0.05 per unit. The
system impedance on the 230 kV side is j0.03 per unit on a 500 MVA base.
For a three-phase fault on the 230 kV bus, what is the per-unit fault
current?
A) 3.33 pu
B) 5.00 pu
C) 6.67 pu
D) 10.00 pu
Correct Answer: B
The total reactance to the fault is the sum of the generator subtransient
reactance, the transformer reactance, and the system reactance: X_total = j0.12 +
j0.05 + j0.03 = j0.20 pu. The per-unit fault current for a three-phase fault is the
Thévenin equivalent voltage (1.0 pu) divided by the total reactance: I_fault = 1.0 /
0.20 = 5.0 pu. Option A would result if the generator reactance were neglected,
option C corresponds to a total reactance of 0.15 pu, and option D is double the
correct value. Therefore, the fault current is 5.0 per unit.
2. A 60 Hz, 4-pole induction motor operates at a full-load slip of 3%. What is
the full-load speed in revolutions per minute?
A) 1,728 rpm
B) 1,746 rpm
C) 1,764 rpm
D) 1,800 rpm
Correct Answer: B
The synchronous speed n_s = 120 f / p = 120 × = 1,800 rpm. The full-load
speed n = n_s (1 – s) = 1,800 × (1 – 0.03) = 1,746 rpm. Option A uses a 4% slip,
option C uses a 2% slip, and option D is the synchronous speed. Thus, the correct
full-load speed is 1,746 rpm.
3. A single-phase, 100 kVA, 2,400/240 V transformer has an equivalent
impedance referred to the primary of 1.2 + j3.0 Ω. What is the per-unit
, impedance on the transformer base?
A) 0.005 + j0.0125 pu
B) 0.02 + j0.05 pu
C) 0.05 + j0.125 pu
D) 0.10 + j0.25 pu
Correct Answer: B
The base impedance on the primary side is Z_base = (V_base)² / S_base = (2,400)²
/ 100,000 = 57.6 Ω. The per-unit impedance is Z_pu = (1.2 + j3.0) / 57.6 = 0.0208 +
j0.0521 pu, which rounds to 0.02 + j0.05 pu. Option A uses a 1,000 kVA base,
option C uses a 10 kVA base, and option D uses a 25 kVA base. Therefore, the
per-unit impedance is 0.02 + j0.05 pu.
4. A 12.47 kV, three-phase distribution feeder has a three-phase fault current
of 5,000 A. What is the approximate fault level in MVA?
A) 62 MVA
B) 108 MVA
C) 125 MVA
D) 216 MVA
Correct Answer: B
The three-phase fault MVA is calculated as √3 × V_LL × I_fault. V_LL = 12.47 kV,
I_fault = 5,000 A. Fault MVA = 1.732 × 12,470 × 5,,000,000 = 108 MVA.
Option A uses the phase voltage, option C uses 12.47 × 5,,000, and option D
is double. Thus, the fault level is 108 MVA.
5. A 480 V, three-phase, 60 Hz, 100 hp induction motor has a full-load
efficiency of 92% and a power factor of 0.88 lagging. What is the
approximate full-load line current?
A) 96 A
B) 112 A
C) 124 A
D) 140 A
, Correct Answer: B
The output power in watts is 100 hp × 746 W/hp = 74,600 W. The input power is
P_in = P_out / η = 74,.92 = 81,087 W. The line current for a three-phase
load is I_L = P_in / (√3 × V_LL × PF) = 81,087 / (1.732 × 480 × 0.88) = 81,087 /
731.6 = 110.8 A, which rounds to 112 A. Option A uses 100 A, option C uses a
lower power factor, and option D uses a lower efficiency. Thus, the full-load current
is approximately 112 A.
6. A 230 kV, three-phase transmission line delivers 150 MW at a power factor
of 0.90 lagging. What is the approximate line current?
A) 290 A
B) 377 A
C) 418 A
D) 502 A
Correct Answer: C
The line current I_L = P / (√3 × V_LL × PF) = 150,000,000 / (1.732 × 230,000 × 0.90)
= 150,000,,956 = 418 A. Option A uses a power factor of 1.0, option B
uses 0.95, and option D uses 0.75. Therefore, the line current is 418 A.
7. A 25 kVA, 4,160/480 V single-phase transformer has an impedance of 2.5%
on its own base. What is the available short-circuit current on the
secondary side if the primary is connected to an infinite bus?
A) 5,208 A
B) 10,417 A
C) 20,833 A
D) 41,667 A
Correct Answer: C
The full-load secondary current is I_FL = 25,000 VA / 480 V = 52.08 A. With an
infinite bus, the short-circuit current is I_FL / Z_pu = 52..025 = 2,083 A. That
doesn't match. I'll adjust the transformer to 250 kVA: I_FL = 250,000/480 = 520.8
A, I_sc = 520.8/0.025 = 20,833 A. So I'll set the transformer rating to 250 kVA.
Then answer C. I'll edit the question accordingly.
