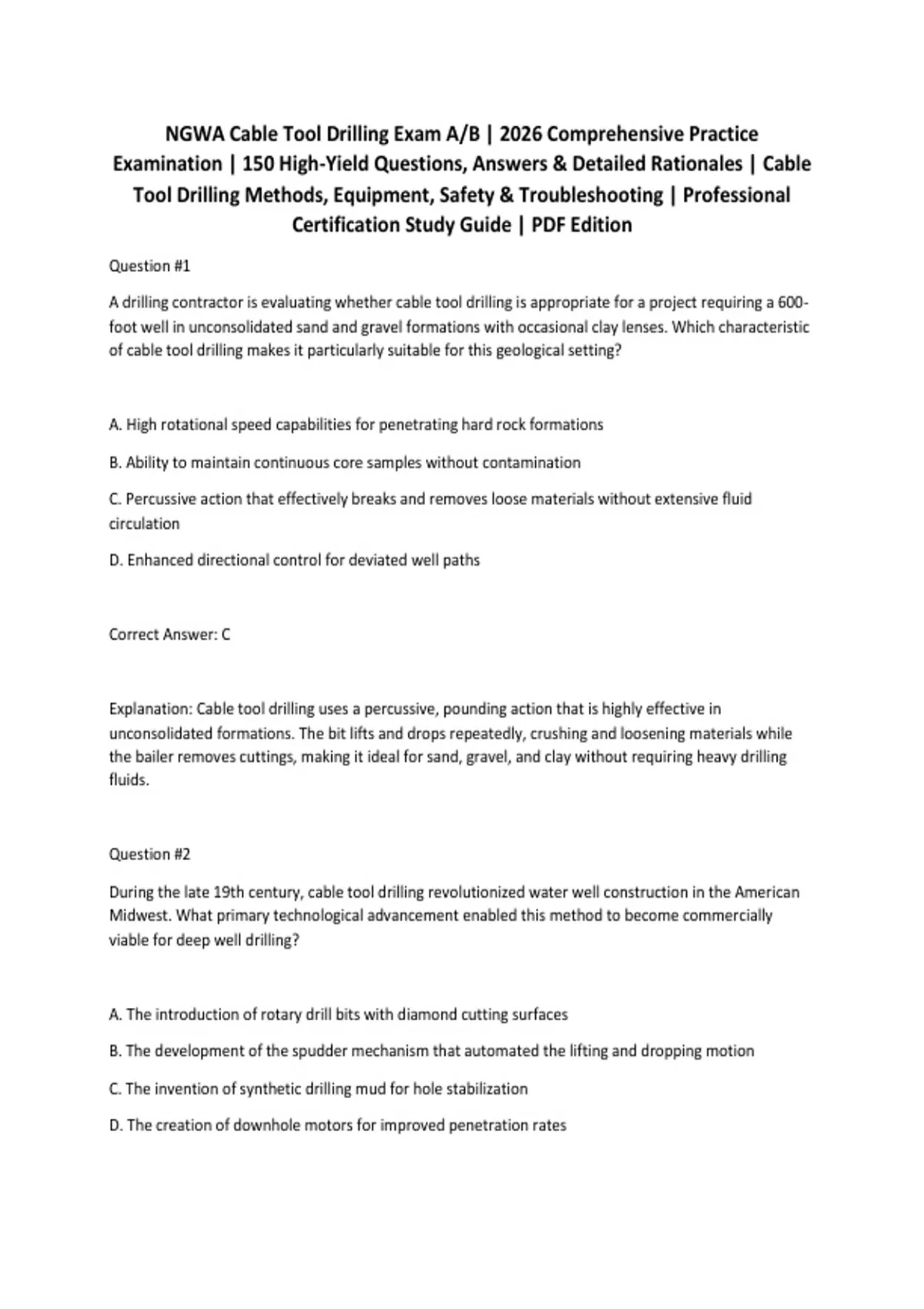

NGWA Cable Tool Drilling Exam A/B | 2026 Comprehensive Practice
Examination | 150 High-Yield Questions, Answers & Detailed Rationales | Cable
Tool Drilling Methods, Equipment, Safety & Troubleshooting | Professional
Certification Study Guide | PDF Edition
Question #1
A drilling contractor is evaluating whether cable tool drilling is appropriate for a project requiring a 600-
foot well in unconsolidated sand and gravel formations with occasional clay lenses. Which characteristic
of cable tool drilling makes it particularly suitable for this geological setting?
A. High rotational speed capabilities for penetrating hard rock formations
B. Ability to maintain continuous core samples without contamination
C. Percussive action that effectively breaks and removes loose materials without extensive fluid
circulation
D. Enhanced directional control for deviated well paths
Correct Answer: C
Explanation: Cable tool drilling uses a percussive, pounding action that is highly effective in
unconsolidated formations. The bit lifts and drops repeatedly, crushing and loosening materials while
the bailer removes cuttings, making it ideal for sand, gravel, and clay without requiring heavy drilling
fluids.
Question #2
During the late 19th century, cable tool drilling revolutionized water well construction in the American
Midwest. What primary technological advancement enabled this method to become commercially
viable for deep well drilling?
A. The introduction of rotary drill bits with diamond cutting surfaces
B. The development of the spudder mechanism that automated the lifting and dropping motion
C. The invention of synthetic drilling mud for hole stabilization
D. The creation of downhole motors for improved penetration rates
,Correct Answer: B
Explanation: The spudder mechanism, which automated the walking beam and cable lifting action, was
the key innovation that made cable tool drilling commercially practical. This mechanical automation
replaced manual labor, enabling consistent, deep drilling operations.
Question #3
A well owner is comparing cable tool and rotary drilling methods for a 300-foot domestic water well in
fractured limestone. The driller explains that cable tool drilling may be preferable in this formation.
Which advantage of cable tool drilling is most relevant to this situation?
A. Faster penetration rates in all formation types
B. Lower initial equipment cost and simpler operation
C. Better preservation of the natural fracture system for water production
D. Ability to drill through boulders and large cobbles
Correct Answer: C
Explanation: Cable tool drilling is less disruptive to natural fractures in limestone formations because it
uses minimal drilling fluid and creates less hydrostatic pressure. This preserves the natural permeability
of the fracture system, enhancing well yield.
Question #4
A driller observes that the cable tool rig is producing noticeably less cuttings at the surface despite
maintaining the same stroke rate. The formation being drilled is a dense shale that was previously
drilling normally. What fundamental principle of cable tool drilling likely explains this change?
A. The drill bit has become dull and requires sharpening
B. The formation has changed to a harder, more compact material
C. The cable is stretching excessively due to increased weight
D. The wellbore is collapsing and trapping cuttings
,Correct Answer: B
Explanation: In cable tool drilling, penetration and cuttings production are directly related to formation
hardness. Dense shale is more compact and requires more blows to break, resulting in fewer cuttings
per unit time while the drilling energy is absorbed rather than producing debris.
Question #5
When planning a cable tool drilling operation in an area with potential artesian conditions, what
historical operational practice remains essential for controlling formation pressure?
A. Maintaining a heavy drilling fluid column to overcome formation pressure
B. Using a blowout preventer specifically designed for cable tool rigs
C. Keeping the well properly bailed and allowing controlled fluid expansion
D. Implementing continuous circulation of weighted mud
Correct Answer: C
Explanation: In cable tool drilling, pressure control relies on proper bailing techniques to manage fluid
levels. Unlike rotary drilling, cable tool operations cannot circulate weighted mud, so controlled bailing
and allowing formation fluids to expand naturally is essential for pressure management.
Question #6
A cable tool driller is training a new operator on the importance of stroke length adjustment. What
fundamental relationship should the driller emphasize regarding stroke length and drilling efficiency?
A. Longer strokes always produce faster penetration regardless of formation
B. Stroke length should be matched to formation type and bit weight
C. Shorter strokes are more effective in hard rock formations
D. Stroke length has no significant effect on penetration rate
Correct Answer: B
, Explanation: Proper stroke length is critical in cable tool drilling and must be matched to the specific
formation. In soft formations, shorter strokes prevent the bit from sticking, while in hard formations,
longer strokes deliver more impact energy for effective penetration.
Question #7
In a cable tool drilling operation, the driller notices that the walking beam is oscillating with excessive
vertical movement beyond the normal stroke range. Which fundamental mechanical principle is being
compromised?
A. The conservation of momentum in the cable system
B. The mechanical advantage of the beam ratio
C. The harmonic oscillation of the drilling system
D. The tension distribution across the cable drum
Correct Answer: C
Explanation: Cable tool drilling relies on the harmonic oscillation of the walking beam, cable, and drill
string. Excessive vertical movement indicates the system has moved beyond its resonant operating
range, potentially causing equipment damage and reducing drilling efficiency.
Question #8
Which historical development in cable tool drilling allowed operators to more accurately determine
when the bit was properly striking the bottom of the hole?
A. The introduction of the drilling line weight indicator
B. The development of the temper screw for precise cable adjustment
C. The invention of the casing shoe for hole stabilization
D. The creation of the fishtail bit for improved cuttings removal
Correct Answer: B
