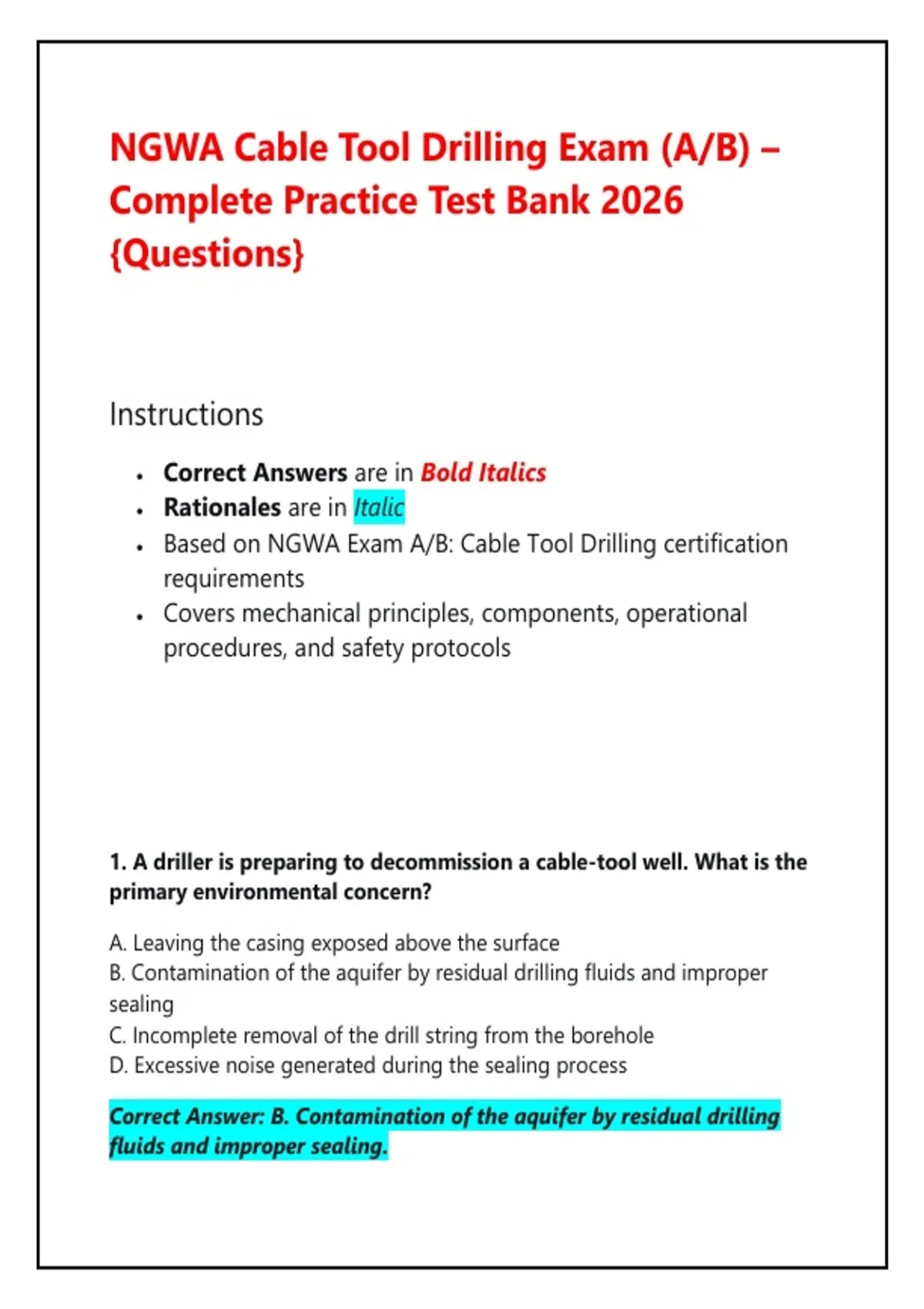

NGWA Cable Tool Drilling Exam (A/B) –
Complete Practice Test Bank 2026
{Questions}
Instructions
• Correct Answers are in Bold Italics
• Rationales are in Italic
• Based on NGWA Exam A/B: Cable Tool Drilling certification
requirements
• Covers mechanical principles, components, operational
procedures, and safety protocols
1. A driller is preparing to decommission a cable-tool well. What is the
primary environmental concern?
A. Leaving the casing exposed above the surface
B. Contamination of the aquifer by residual drilling fluids and improper
sealing
C. Incomplete removal of the drill string from the borehole
D. Excessive noise generated during the sealing process
Correct Answer: B. Contamination of the aquifer by residual drilling
fluids and improper sealing.
,Rationale: Proper sealing prevents any remaining drilling fluids or
contaminants from migrating into the aquifer, which is the primary
environmental concern during decommissioning .
2. A cable-tool driller notices that adding a small amount of water to
the cuttings creates a slurry. What is the primary purpose of this
practice?
A. To reduce friction on the drill string
B. To facilitate bailer lifting of cuttings by lowering their bulk density
C. To increase the overall weight of the pounder for greater impact
D. To cool the drill bit during operation
Correct Answer: B. To facilitate bailer lifting of cuttings by lowering
their bulk density.
Rationale: Adding water to cuttings creates a slurry that lowers the bulk
density, making it easier for the bailer to lift them out of the hole .
3. Which fishing tool is specifically designed to engage a slipped tool
string for retrieval from the borehole?
A. Horn socket
B. Slip socket
C. Drill jar
D. Mother Hubbard bit
Correct Answer: B. Slip socket.
Rationale: A slip socket grips the tool string and can be used to pull or rotate
a stuck assembly out of the hole .
,4. A dart-valve bailer functions differently from a flat-valve bailer
primarily because it:
A. Has a rotating cutter to grind cuttings
B. Uses a spring-loaded valve that opens when lifted, reducing water
ingress
C. Can only fit into larger diameter boreholes
D. Operates exclusively with oil-based drilling fluids
Correct Answer: B. Uses a spring-loaded valve that opens when lifted,
reducing water ingress.
Rationale: The dart-valve bailer's spring-loaded valve opens on upward
motion, allowing cuttings and water to enter while minimizing fluid loss
during descent .
5. What is the primary role of the spudding beam in cable tool drilling?
A. To set the initial hole during the spudding phase
B. To operate the bailer for cutting removal
C. To measure the depth of the well
D. To circulate drilling fluid through the borehole
Correct Answer: A. To set the initial hole during the spudding phase.
Rationale: The spudding beam is employed at the start of drilling to position
the tool string and initiate the first blows .
, 6. What is the primary function of a drill collar in the cable tool drill
string?
A. To connect the drill bit to the drill stem
B. To provide weight and stiffness for drilling hard formations
C. To support the cable reel on the rig
D. To accurately measure the depth of the borehole
Correct Answer: B. To provide weight and stiffness for drilling hard
formations.
Rationale: Drill collars add weight and rigidity to facilitate effective drilling in
tough formations .
7. In unconsolidated formations, what is the most appropriate type of
well screen to prevent sand production?
A. A solid steel pipe with no openings
B. A slotted steel screen with fine apertures
C. A perforated PVC pipe
D. No screen is needed
Correct Answer: B. A slotted steel screen with fine apertures.
Rationale: A slotted steel screen with appropriate aperture size prevents sand
production while allowing water flow .
8. Plunger/Surge blocks are used in cable-tool wells to achieve which
outcome?
A. Generate hydraulic pressure for drilling
B. Accelerate cuttings removal by rapid vertical motion
