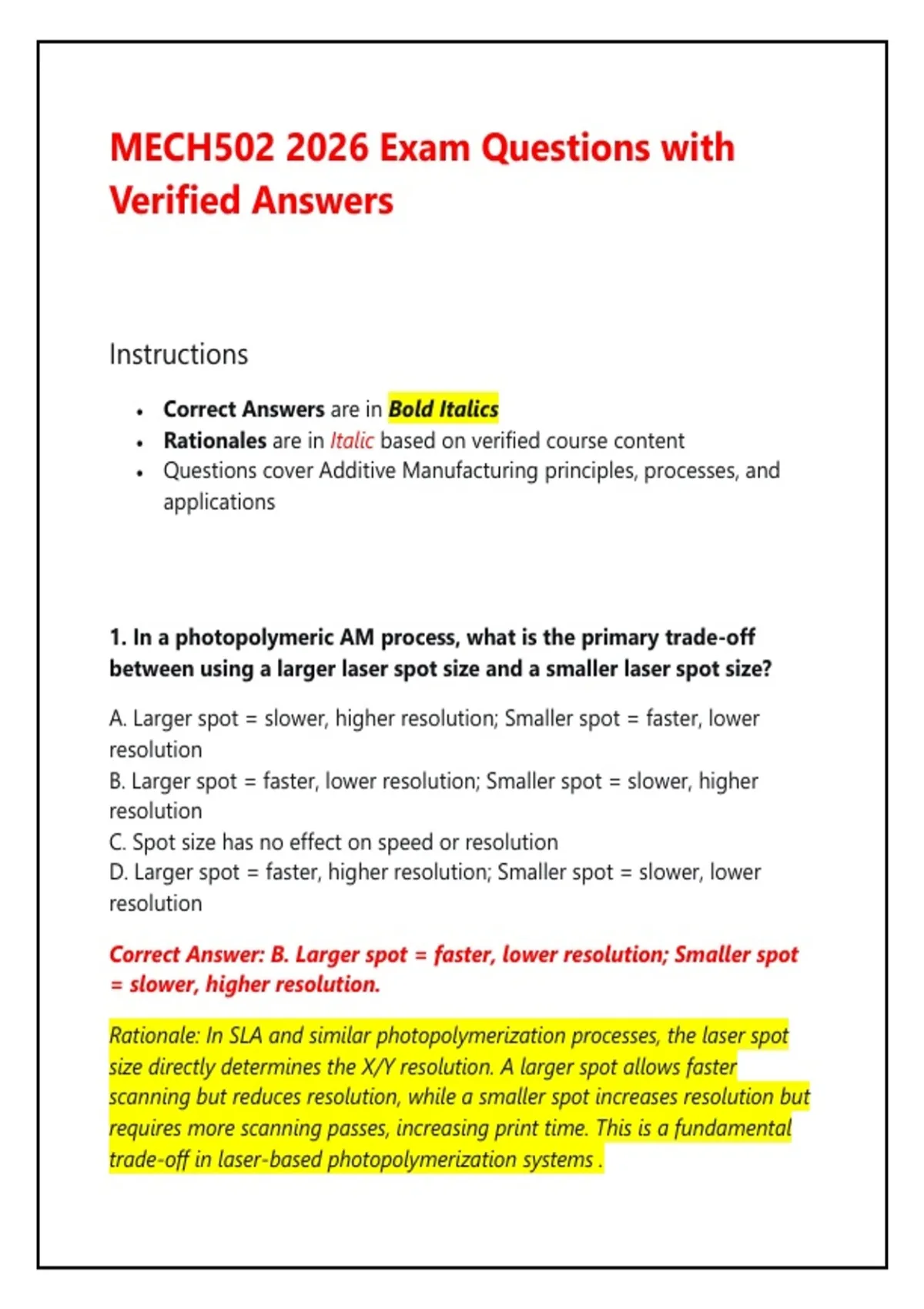

MECH502 2026 Exam Questions with
Verified Answers
Instructions
• Correct Answers are in Bold Italics
• Rationales are in Italic based on verified course content
• Questions cover Additive Manufacturing principles, processes, and
applications
1. In a photopolymeric AM process, what is the primary trade-off
between using a larger laser spot size and a smaller laser spot size?
A. Larger spot = slower, higher resolution; Smaller spot = faster, lower
resolution
B. Larger spot = faster, lower resolution; Smaller spot = slower, higher
resolution
C. Spot size has no effect on speed or resolution
D. Larger spot = faster, higher resolution; Smaller spot = slower, lower
resolution
Correct Answer: B. Larger spot = faster, lower resolution; Smaller spot
= slower, higher resolution.
Rationale: In SLA and similar photopolymerization processes, the laser spot
size directly determines the X/Y resolution. A larger spot allows faster
scanning but reduces resolution, while a smaller spot increases resolution but
requires more scanning passes, increasing print time. This is a fundamental
trade-off in laser-based photopolymerization systems .
,2. Which of the following statements about "foam" vs "lattice"
structures in AM is true?
A. Foam structures are stochastic and controllable; lattice structures are
random
B. Foam structures are random; lattice structures are controllable with
known stress-strain relationships
C. Foam structures are stronger than lattice structures in all cases
D. There is no difference between foam and lattice structures
Correct Answer: B. Foam structures are random; lattice structures are
controllable with known stress-strain relationships.
Rationale: Foam structures are typically random and irregular in nature,
while lattice structures are engineered, controllable patterns with known
stress-strain curves that can be analyzed using FEA (Finite Element Analysis).
This controllability makes lattices superior for applications requiring
predictable mechanical performance and lightweighting .
3. A colleague shows you a part with a corrugated, shiny surface that is
fully dense and came directly from the printer without any post-
processing. Which AM process was most likely used?
A. Powder Bed Fusion
B. Binder Jetting
C. Directed Energy Deposition
D. Vat Photopolymerization
Correct Answer: C. Directed Energy Deposition.
Rationale: Directed Energy Deposition (DED) processes produce fully dense
parts with a characteristic shiny, corrugated or weld-like surface finish
,directly from the printer without post-processing. This is typical of DED
processes where material is melted and deposited in a controlled manner .
4. What is the primary purpose of "grouping" or "nesting" parts in an
AM build?
A. To make parts easier to remove from the build platform
B. To strategically arrange parts to maximize build plate utilization and
minimize waste
C. To improve the surface finish of all parts in the build
D. To reduce the material cost of each individual part
Correct Answer: B. To strategically arrange parts to maximize build
plate utilization and minimize waste.
Rationale: Grouping or nesting describes the strategic arrangement of
different (or multiple of the same) parts of an assembly to be printed in one
setting. Well-placed parts during grouping can significantly enhance the
output of the AM process. Badly placed parts can not only "waste" valuable
AM capacity but also cause built quality problems .
5. In the context of AM, "curing time" refers to:
A. The time it takes for the printer to cure each layer during printing
B. The length of time it takes for the photopolymer resin to reach its
ultimate, stable state after printing
C. The time required for the laser to scan each layer
D. The total print time of the part
Correct Answer: B. The length of time it takes for the photopolymer
resin to reach its ultimate, stable state after printing.
, Rationale: Curing time represents how long the photopolymer takes to reach
its final, stable material properties after initial printing. Post-curing is often
required to achieve the desired mechanical properties and dimensional
stability in photopolymer parts .
6. True or False: In FFF printing, a material with a relatively low heat
deflection temperature would require more thermal energy to extrude.
A. True
B. False
Correct Answer: B. False.
Rationale: A material with a relatively low heat deflection temperature (HDT)
would require less thermal energy to extrude, not more. Low HDT indicates
the material softens at lower temperatures, making it easier to extrude. High
HDT materials require higher temperatures to achieve the necessary flow .
7. Which of the following best describes the "ceiling" of an FFF print?
A. The maximum height the printer can achieve
B. The highest surface that is parallel to the bed
C. The first layer of the print
D. The top surface of the support structure
Correct Answer: B. The highest surface that is parallel to the bed.
Rationale: The "ceiling" of an FFF print is the highest surface that is parallel
to the bed. In FFF printing, horizontal overhangs (ceilings) require support
structures because the material cannot be extruded into open air .
