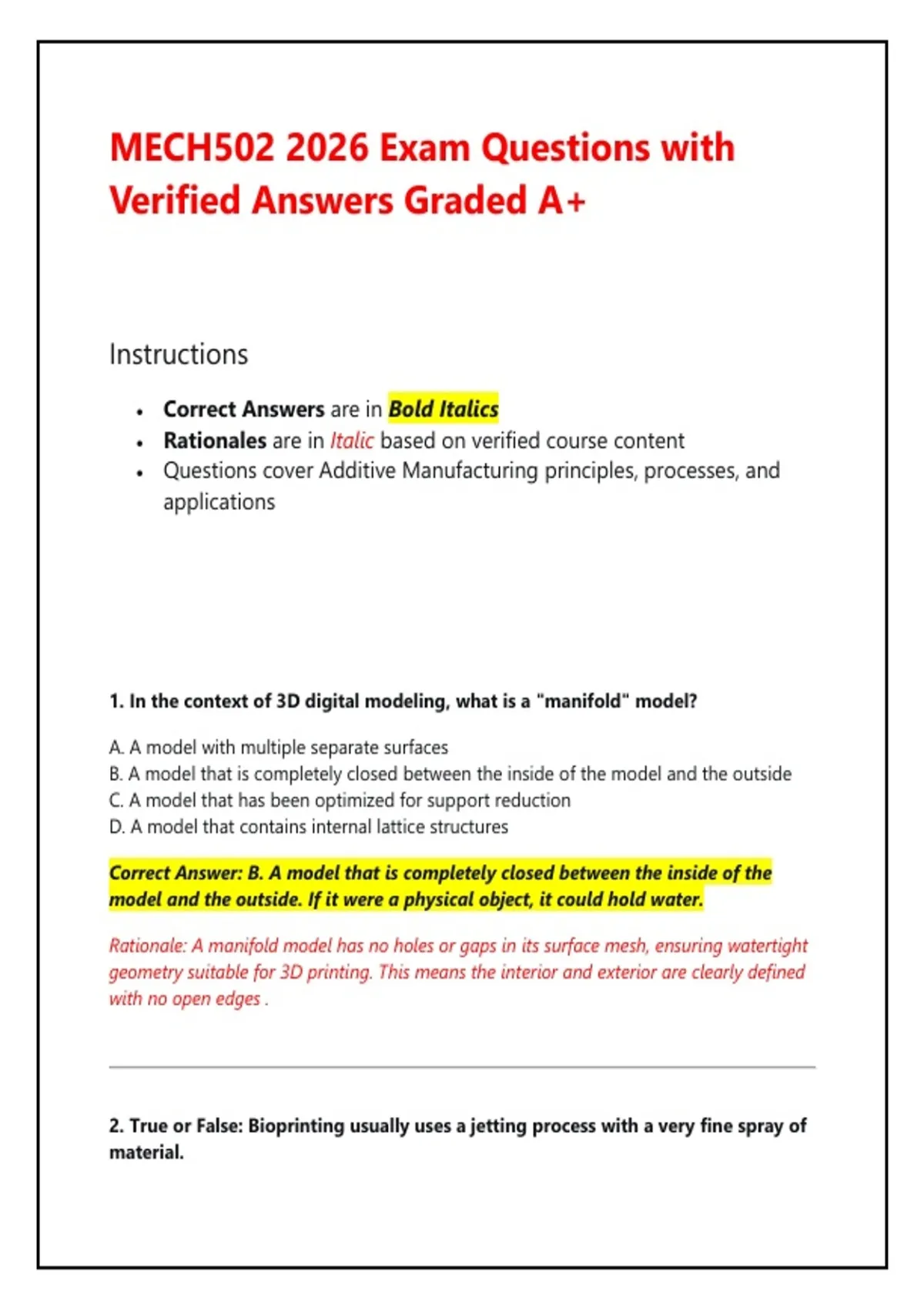

MECH502 2026 Exam Questions with
Verified Answers Graded A+
Instructions
• Correct Answers are in Bold Italics
• Rationales are in Italic based on verified course content
• Questions cover Additive Manufacturing principles, processes, and
applications
1. In the context of 3D digital modeling, what is a "manifold" model?
A. A model with multiple separate surfaces
B. A model that is completely closed between the inside of the model and the outside
C. A model that has been optimized for support reduction
D. A model that contains internal lattice structures
Correct Answer: B. A model that is completely closed between the inside of the
model and the outside. If it were a physical object, it could hold water.
Rationale: A manifold model has no holes or gaps in its surface mesh, ensuring watertight
geometry suitable for 3D printing. This means the interior and exterior are clearly defined
with no open edges .
2. True or False: Bioprinting usually uses a jetting process with a very fine spray of
material.
,A. True
B. False
Correct Answer: B. False.
Rationale: Bioprinting typically uses extrusion-based or droplet-based methods to deposit
bio-inks containing living cells, not a fine spray of material. Jetting processes like inkjet
printing can be used, but are not the primary mechanism in most bioprinting
applications .
3. Which set of metrics lists two of the most important considerations when
deciding whether to use additive manufacturing or subtractive/formative
manufacturing?
A. Material availability and post-processing requirements
B. Cost per complexity and cost per quantity
C. Machine cost and labor cost
D. Production speed and surface finish
Correct Answer: B. Cost per complexity and cost per quantity.
Rationale: Additive manufacturing excels when part complexity increases (cost per
complexity remains low) and when production quantities are low (cost per quantity
remains manageable). This helps determine if AM or traditional manufacturing is more
economical .
4. Which of the following statements about foam vs. lattice structures in AM is
correct?
A. Foam structures are stochastic and controllable; lattice structures are random
B. Foam structures are random; lattice structures are controllable with known stress-
strain relationships
C. Foam structures are always stronger than lattice structures
D. There is no meaningful difference between foam and lattice structures
,Correct Answer: B. Foam structures are random; lattice structures are controllable
with known stress-strain relationships.
Rationale: Foam structures are typically random and irregular in nature, while lattice
structures are engineered, controllable patterns with known stress-strain curves that can
be analyzed using FEA (Finite Element Analysis) .
5. The slope of a photopolymer's working curve represents:
A. The curing depth of the polymer at a given energy dose
B. The distance a given irradiance will decrease by an amount equal to the half-width of
the gaussian, as it penetrates a given photopolymer
C. The speed of the laser scanning across the resin surface
D. The viscosity of the photopolymer resin
Correct Answer: B. The distance a given irradiance will decrease by an amount
equal to the half-width of the gaussian, as it penetrates a given photopolymer.
Rationale: The slope of the working curve in photopolymerization relates to the
penetration depth of the light into the resin. It characterizes how the irradiance decreases
as it passes through the photopolymer material .
6. Which of the following is an example of a decision made during slicing that
impacts the final outcome of the part? (Select all that apply)
A. Fill density
B. Retraction settings
C. Printer brand selection
D. Layer height
Correct Answer: A, B, and D.
Rationale: Slicing decisions that impact final part quality include fill density (infill
percentage), retraction settings (to prevent oozing), and layer height (determines
resolution). Printer brand selection is not a slicing parameter .
, 7. What is the primary advantage of MJF (Multi-Jet Fusion) over SLS?
A. Lower equipment cost
B. Higher production speed and more detailed parts
C. Better material properties in the final parts
D. Easier post-processing
Correct Answer: B. Higher production speed and more detailed parts.
Rationale: MJF offers higher printing speeds and better detail resolution compared to SLS
due to the use of multiple jets for fusing and detailing agents. The fusing agent absorbs
energy for sintering while the detailing agent improves resolution and edge definition .
8. A material with a relatively low thermal conductivity would require more
thermal energy to extrude than a material with relatively high thermal
conductivity. True or False?
A. True
B. False
Correct Answer: A. True.
Rationale: Low thermal conductivity materials trap heat, requiring more energy to
maintain extrusion temperature and flow. High thermal conductivity materials dissipate
heat more quickly, which can make them more difficult to extrude consistently .
9. Which of the following is a design guideline specific to powder bed fusion
processes?
A. Minimum self-supporting angle
B. Minimum spacing between parts
C. Minimum wall thickness
D. Maximum overhang angle
