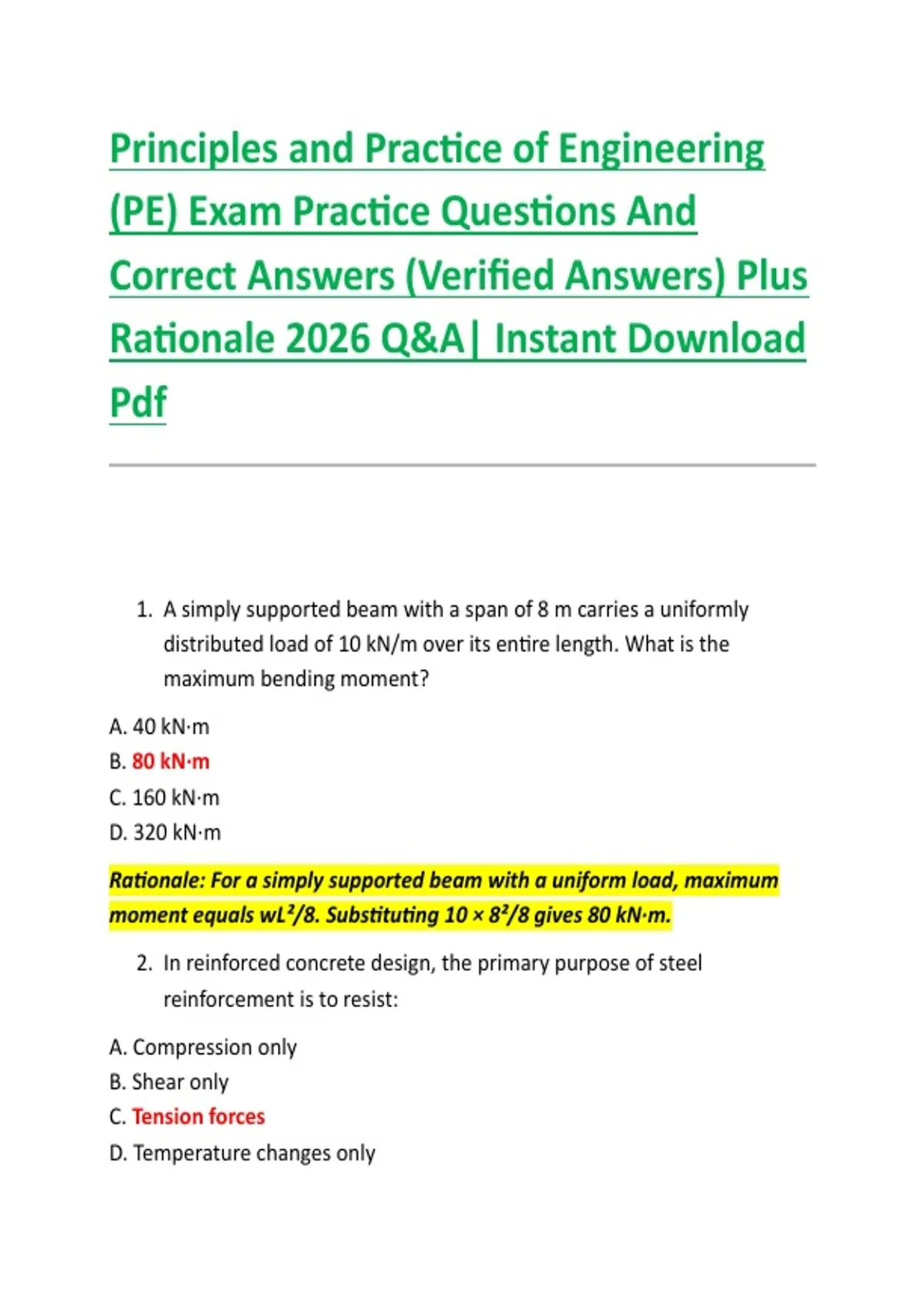

Principles and Practice of Engineering
(PE) Exam Practice Questions And
Correct Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. A simply supported beam with a span of 8 m carries a uniformly
distributed load of 10 kN/m over its entire length. What is the
maximum bending moment?
A. 40 kN·m
B. 80 kN·m
C. 160 kN·m
D. 320 kN·m
Rationale: For a simply supported beam with a uniform load, maximum
moment equals wL²/8. Substituting 10 × 8²/8 gives 80 kN·m.
2. In reinforced concrete design, the primary purpose of steel
reinforcement is to resist:
A. Compression only
B. Shear only
C. Tension forces
D. Temperature changes only
,Rationale: Concrete is strong in compression but weak in tension.
Reinforcing steel provides the tensile strength needed for structural
performance.
3. According to fluid mechanics, Bernoulli’s equation is based on
conservation of:
A. Mass
B. Momentum
C. Energy
D. Entropy
Rationale: Bernoulli’s equation represents conservation of mechanical
energy along a streamline for ideal fluid flow.
4. Which soil type generally exhibits the highest permeability?
A. Clay
B. Silt
C. Loam
D. Gravel
Rationale: Gravel contains large interconnected voids that permit water to
flow readily through the soil mass.
5. The factor of safety in engineering design primarily accounts for:
A. Increased profits
B. Reduced construction time
C. Uncertainties in loads and material behavior
D. Architectural preferences
Rationale: Factors of safety address uncertainties in loading conditions,
material properties, workmanship, and analysis assumptions.
6. What is the SI unit of stress?
, A. Newton
B. Joule
C. Pascal
D. Watt
Rationale: Stress is force per unit area, measured in pascals (N/m²).
7. A three-phase motor operates more efficiently than a single-phase
motor primarily because:
A. It uses less voltage
B. It produces a rotating magnetic field naturally
C. It requires no insulation
D. It eliminates power losses entirely
Rationale: Three-phase systems inherently create a rotating magnetic field,
improving motor performance and efficiency.
8. Which project delivery method places both design and construction
responsibility under one entity?
A. Design-Bid-Build
B. Construction Management at Risk
C. Multiple Prime Contracts
D. Design-Build
Rationale: Design-Build combines design and construction services under a
single contractual arrangement.
9. Hooke’s Law states that stress is proportional to strain within the:
A. Plastic range
B. Failure range
C. Elastic range
D. Creep range
