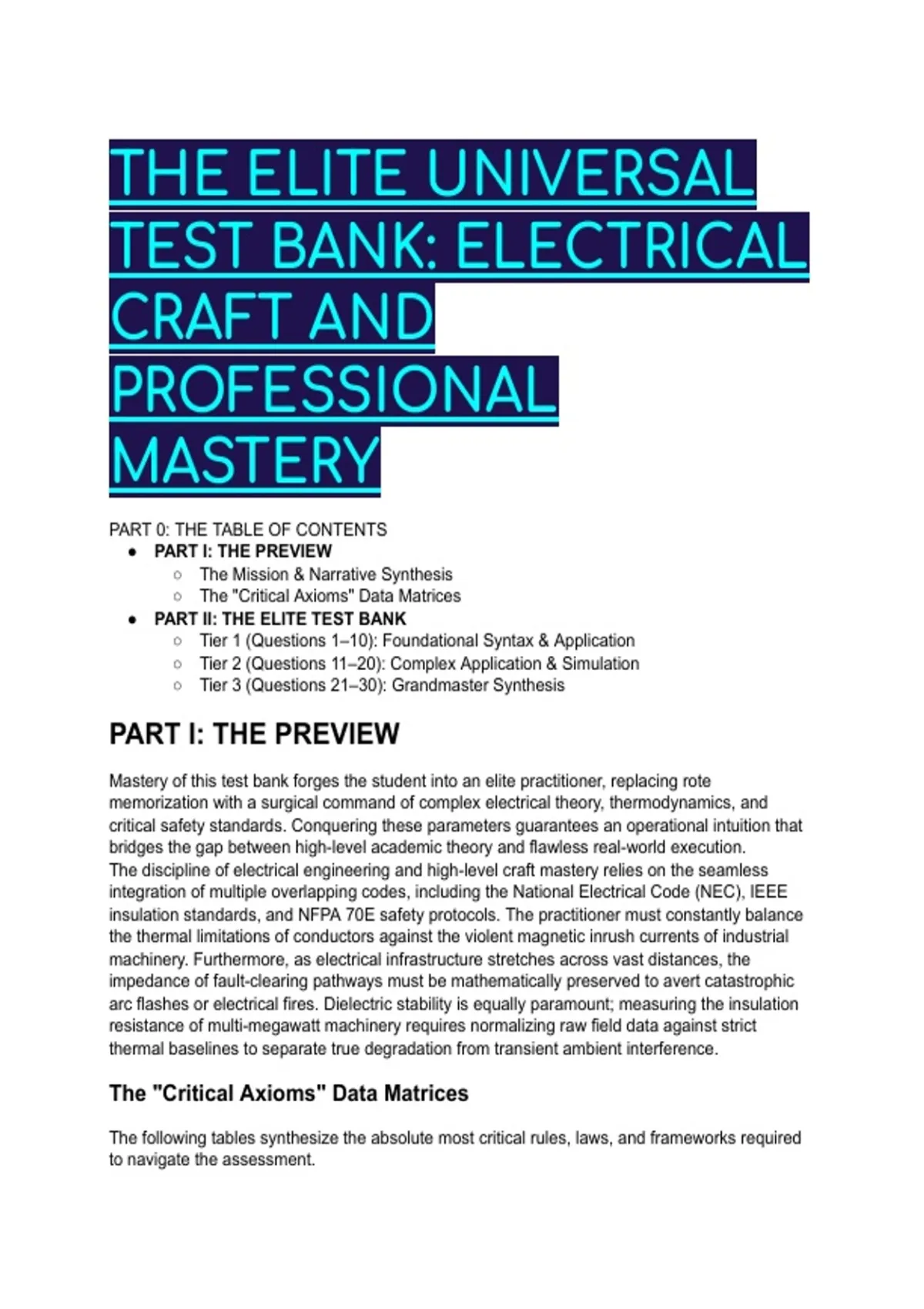

THE ELITE UNIVERSAL
TEST BANK: ELECTRICAL
CRAFT AND
PROFESSIONAL
MASTERY
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission & Narrative Synthesis
○ The "Critical Axioms" Data Matrices
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10): Foundational Syntax & Application
○ Tier 2 (Questions 11–20): Complex Application & Simulation
○ Tier 3 (Questions 21–30): Grandmaster Synthesis
PART I: THE PREVIEW
Mastery of this test bank forges the student into an elite practitioner, replacing rote
memorization with a surgical command of complex electrical theory, thermodynamics, and
critical safety standards. Conquering these parameters guarantees an operational intuition that
bridges the gap between high-level academic theory and flawless real-world execution.
The discipline of electrical engineering and high-level craft mastery relies on the seamless
integration of multiple overlapping codes, including the National Electrical Code (NEC), IEEE
insulation standards, and NFPA 70E safety protocols. The practitioner must constantly balance
the thermal limitations of conductors against the violent magnetic inrush currents of industrial
machinery. Furthermore, as electrical infrastructure stretches across vast distances, the
impedance of fault-clearing pathways must be mathematically preserved to avert catastrophic
arc flashes or electrical fires. Dielectric stability is equally paramount; measuring the insulation
resistance of multi-megawatt machinery requires normalizing raw field data against strict
thermal baselines to separate true degradation from transient ambient interference.
The "Critical Axioms" Data Matrices
The following tables synthesize the absolute most critical rules, laws, and frameworks required
to navigate the assessment.
,Parameter Application Principle Code/Standard Reference
Terminal Limitations Conductor ampacity is NEC 110.14(C)
permanently capped by the
lowest temperature rating of
any termination. However, 90°C
ampacities may be utilized
exclusively for initial derating
mathematics.
Motor Overload Protection Sized at 125% of Nameplate NEC 430.32(A)
FLC for motors with Service
Factor \geq 1.15 or
Temperature Rise \leq 40°C. All
other motors default to 115%.
Proportional Grounding When phase conductors are NEC 250.122(B)
upsized strictly for voltage drop,
the Equipment Grounding
Conductor (EGC) must be
increased by the exact same
circular mil ratio.
Thermal Normalization Insulation resistance is IEEE Std 43
inversely exponential to
temperature. Resistance
roughly doubles for every 10°C
drop toward the 40°C IEEE
standard baseline.
Multiple Motor Feeders Minimum ampacity is 125% of NEC 430.24
the single largest motor FLC,
plus 100% of all remaining
motors, plus 125% of
continuous non-motor loads.
NFPA 70E Shock Approach Boundaries (AC Systems)
Nominal System Voltage Limited Approach Boundary Restricted Approach Boundary
(Fixed Part)
50 V to 150 V 3 ft. 6 in. Avoid Contact
151 V to 750 V 3 ft. 6 in. 1 ft. 0 in.
751 V to 15 kV 5 ft. 0 in. 2 ft. 2 in.
15.1 kV to 36 kV 6 ft. 0 in. 2 ft. 7 in.
IEEE Std 43 DC Test Voltages for Insulation Resistance
Winding Rated Voltage (V) Recommended DC Test Voltage (V)
< 1000 500
1000 - 2500 500 - 1000
2501 - 5000 1000 - 2500
5001 - 12,000 2500 - 5000
> 12,000 5000 - 10,000
PART II: THE ELITE TEST BANK
, Tier 1 - Foundational Syntax & Application
Q1: An industrial machine disconnect rated at 75°C is being fitted with premium 90°C-rated
copper lugs and 90°C THHN conductors. A technician calculates the circuit ampacity utilizing
the 90°C column of NEC Table 310.16. Based on the principles of NEC 110.14(C) Temperature
Limitations, which conclusion is the MOST ACCURATE? A) The 90°C ampacity column is
permitted because the field-installed lugs match the conductor's 90°C thermal rating. B) The
90°C ampacity column is strictly forbidden for any part of the calculation because it voids the UL
listing of the equipment. C) The 90°C ampacity column is permitted for preliminary derating
calculations, provided the final operational ampacity does not exceed the 75°C termination limit.
D) The 60°C ampacity column must be utilized because industrial disconnects default to the
lowest theoretical rating unless explicitly marked otherwise.
● Answer: C (The 90°C ampacity column is permitted for preliminary derating calculations,
provided the final operational ampacity does not exceed the 75°C termination limit.)
● Distractor Analysis:
○ A is incorrect: The lowest rated termination in the entire circuit dictates the final
ampacity cap. The 75°C internal bus structure of the disconnect limits the circuit,
rendering the 90°C lug rating irrelevant for final ampacity.
○ B is incorrect: Using the 90°C column for derating mathematics is a widely accepted
code practice and does not void UL listings; physical field modifications of lugs
might, but the mathematical principle remains valid.
○ D is incorrect: For circuits over 100A, the default termination rating is 75°C, not
60°C. Circuits 100A or less default to 60°C.
The Mentor's Analysis: The governing principle of NEC 110.14(C) dictates that the lowest
temperature rating of any connected component acts as an unbreakable ceiling. By utilizing
THHN 90°C insulation strictly for initial derating calculations, the practitioner bypasses the
common trap of artificially limiting the math before ambient temperature adjustments are
applied. Professional/Academic Intuition: The practitioner must always start derating
calculations at the conductor's maximum insulation rating, but never let the final load
exceed the lowest-rated terminal in the circuit path.
Q2: A 25 HP, 460V, three-phase induction motor operates continuously in a chemical plant. The
motor's nameplate indicates a Full-Load Current (FLC) of 30A, a Service Factor (SF) of 1.15,
and a temperature rise of 50°C. Based on the principles of NEC 430.32(A)(1), which initial
overload device rating is the MOST ACCURATE maximum allowable threshold? A) 34.5 A B)
37.5 A C) 39.0 A D) 42.0 A
● Answer: B (37.5 A)
● Distractor Analysis:
○ A is incorrect: This calculation (30A \times 1.15) applies the 115% multiplier.
Because the motor has a Service Factor of 1.15, it qualifies for the 125% multiplier,
making 115% mathematically insufficient.
○ C is incorrect: This calculation (30A \times 1.30) represents the absolute maximum
overload rating if the motor fails to start using the standard 115% rule. It is an
escalated tier, not the initial maximum.
○ D is incorrect: This calculation (30A \times 1.40) represents the absolute maximum
for a motor that fails to start, assuming it qualifies for the higher tier.
The Mentor's Analysis: Standard overload protection prevents thermal degradation of motor
windings. When a motor is robust enough to possess a Service Factor of \geq 1.15 or a
